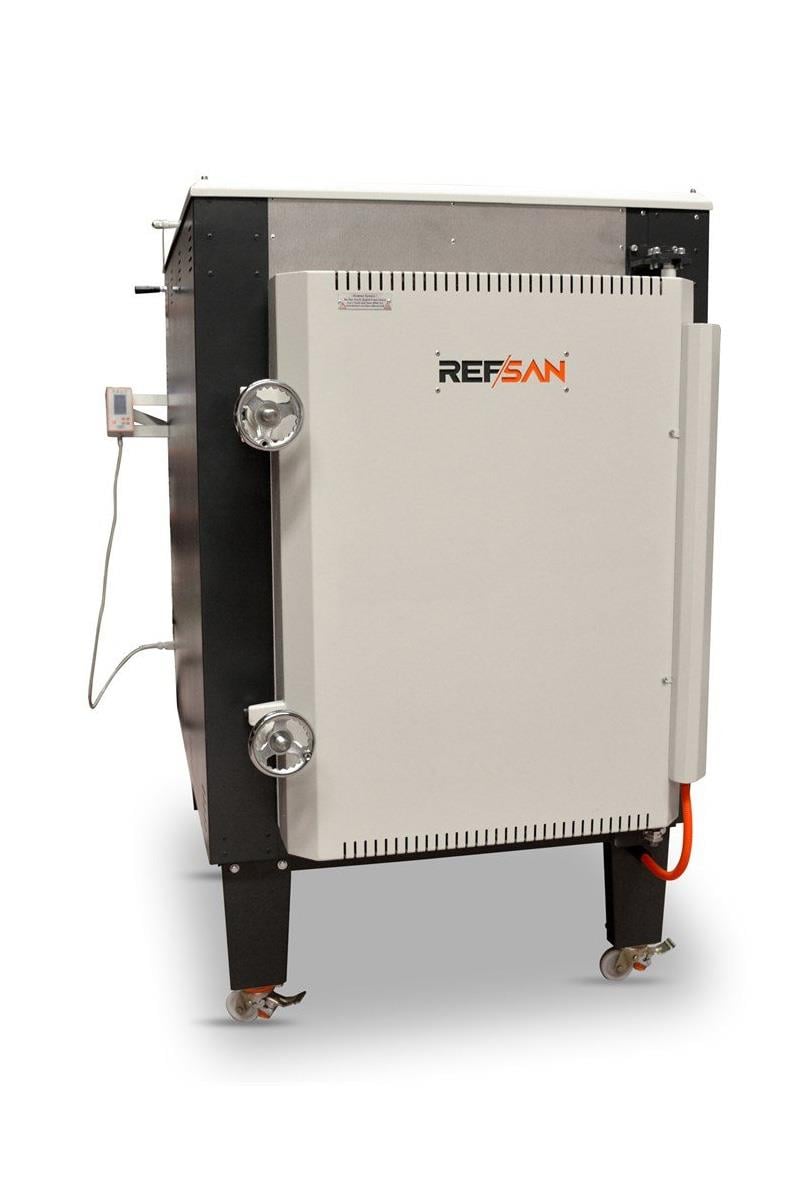

Rt1.000 Annealing / Thermal Processing Kiln (R6960)

Industries Used in
Heat Treatment - Annealing
Internal dimensions: d90 x w110 x h100cm - 990dm³ usable internal volume.
Weight: 1250 kg.
Power: 30 - 36 KW
Max. temperature 1200°C
Voltage 400V
Door: opens to the right or left.
Kiln type: Chamber type.
Insulation content: European JM 26 Thermal Ceramics European brick with 1430°C resistance.
Interior and exterior surfaces completely powder-coated and resistant to decay.
KANTHAL A1 heating elements with 1400°C resistance, evenly spaced to ensure homogeneous heat distribution.
Kiln base level is at a suitable height from the floor for ease of operation.
Electrical control elements are Siemens and/or Telemecanique.
Control panel on the Kiln and Kiln electrical connections are protected.
40 mm ventilation gap on 4 surfaces. (ensures easy heating and cooling of the Kiln, easy removal of gas and water vapor and long life of the metal parts)
With ventilation flap at the top and flap at the bottom (in proportion to the internal volume)
5-sided heating (homogeneous heat distribution ensures that all products are exposed to the same temperature)

Control RF800 Programmer
5 programs and 15 sets can be entered in each program, digital. -It also shows date, time, program, step, set temperature, exit time, current temperature and remaining time.
It reports the last 8 burns at 2 min. intervals.
Temperature measurement: K Type NiCr-Ni (25-1200°C) single point with thermocouple.
Furnace cooling system is free cooling.
Suitable for 40x50cm shelf.
2 Year Warranty + 10 Year Service Warranty
Certified to TSE and CE Standards
