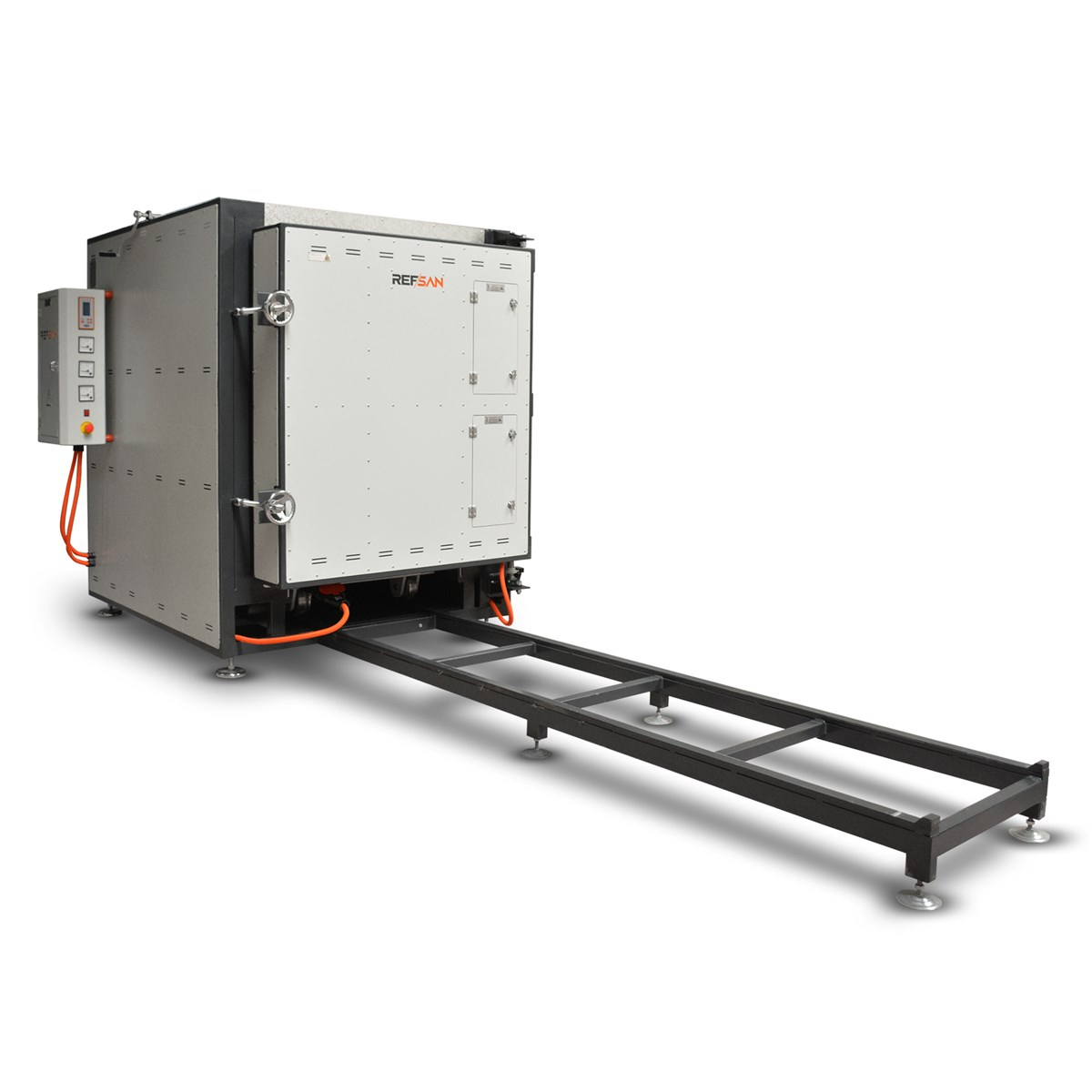

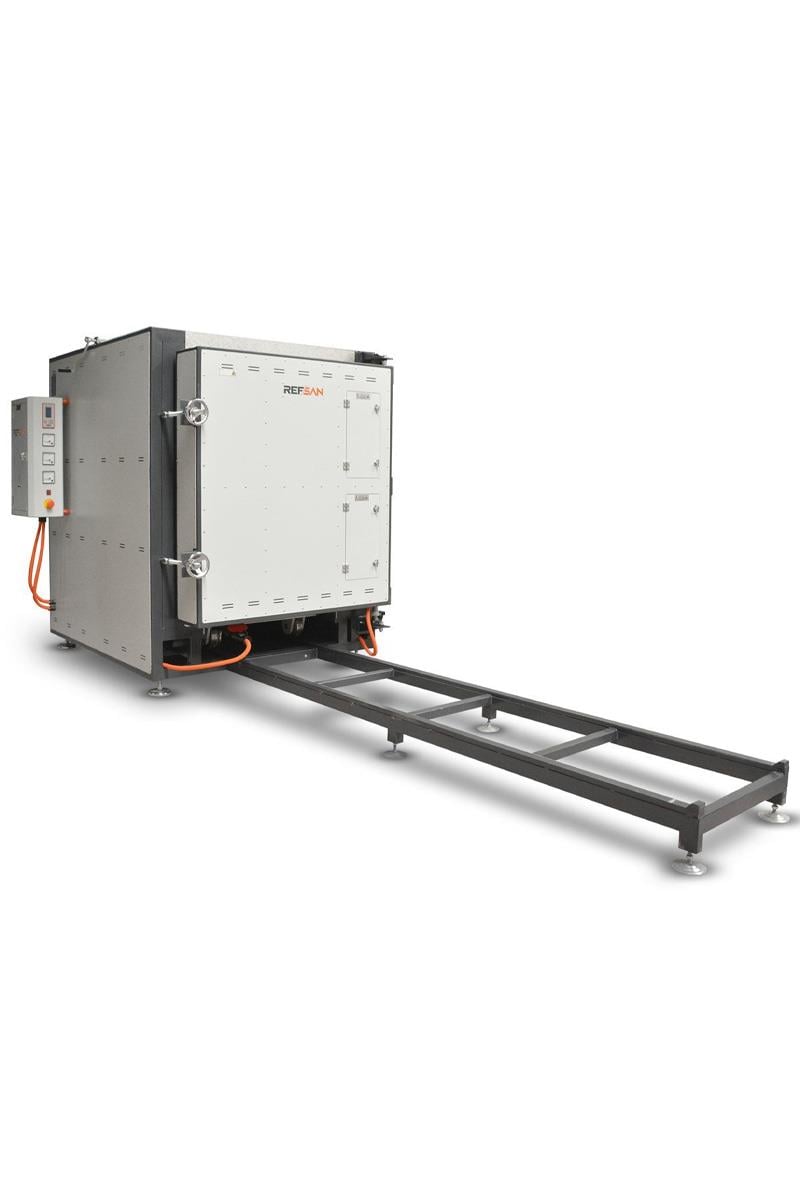

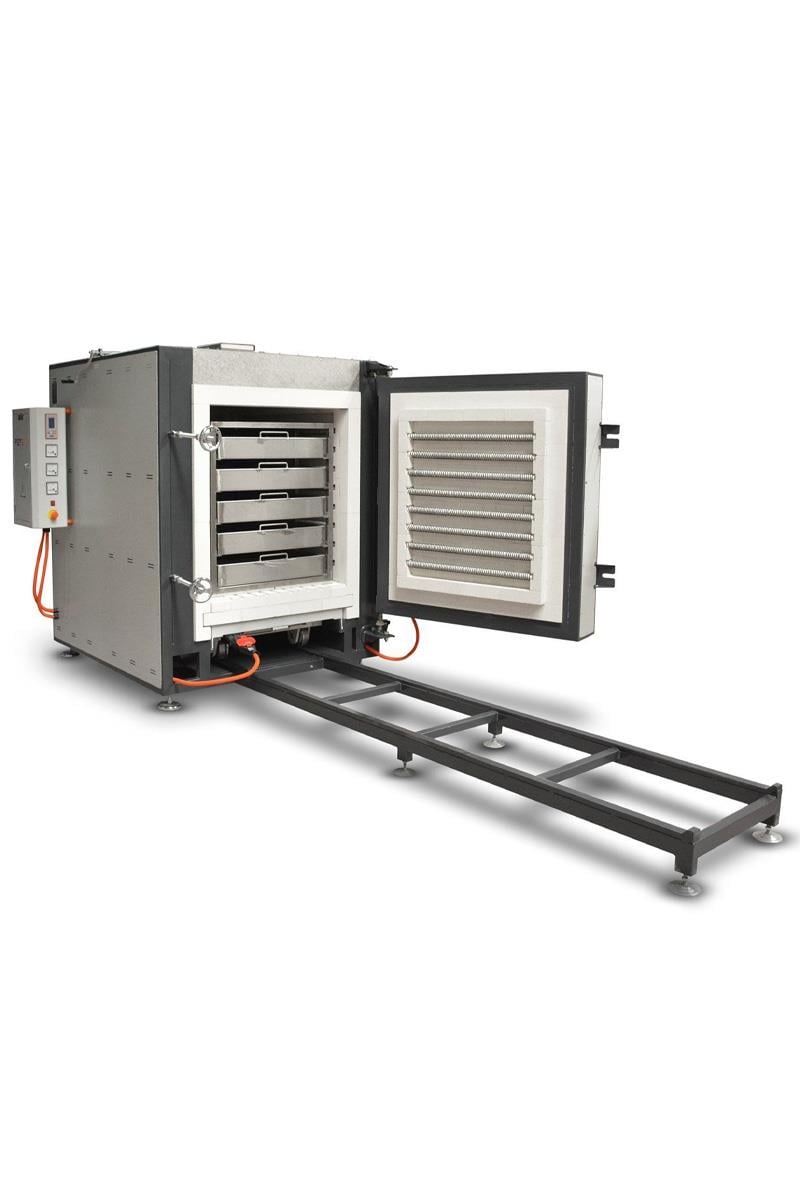

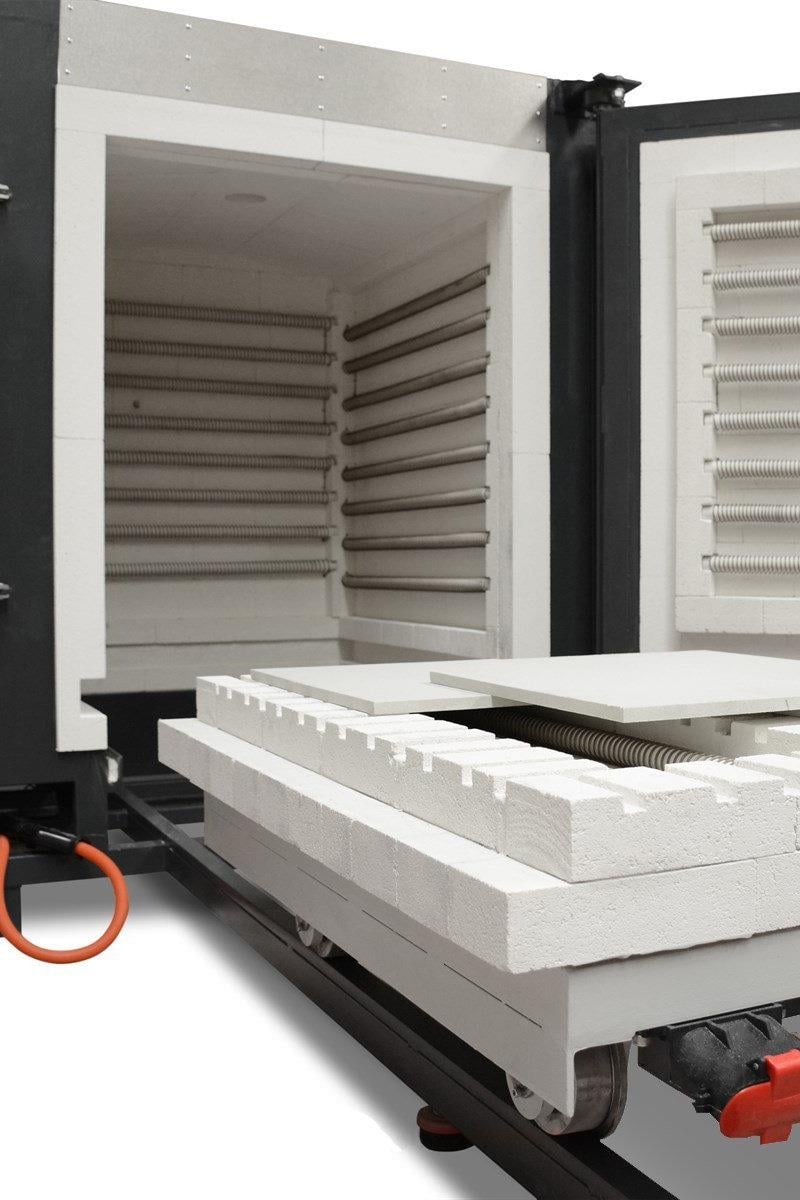

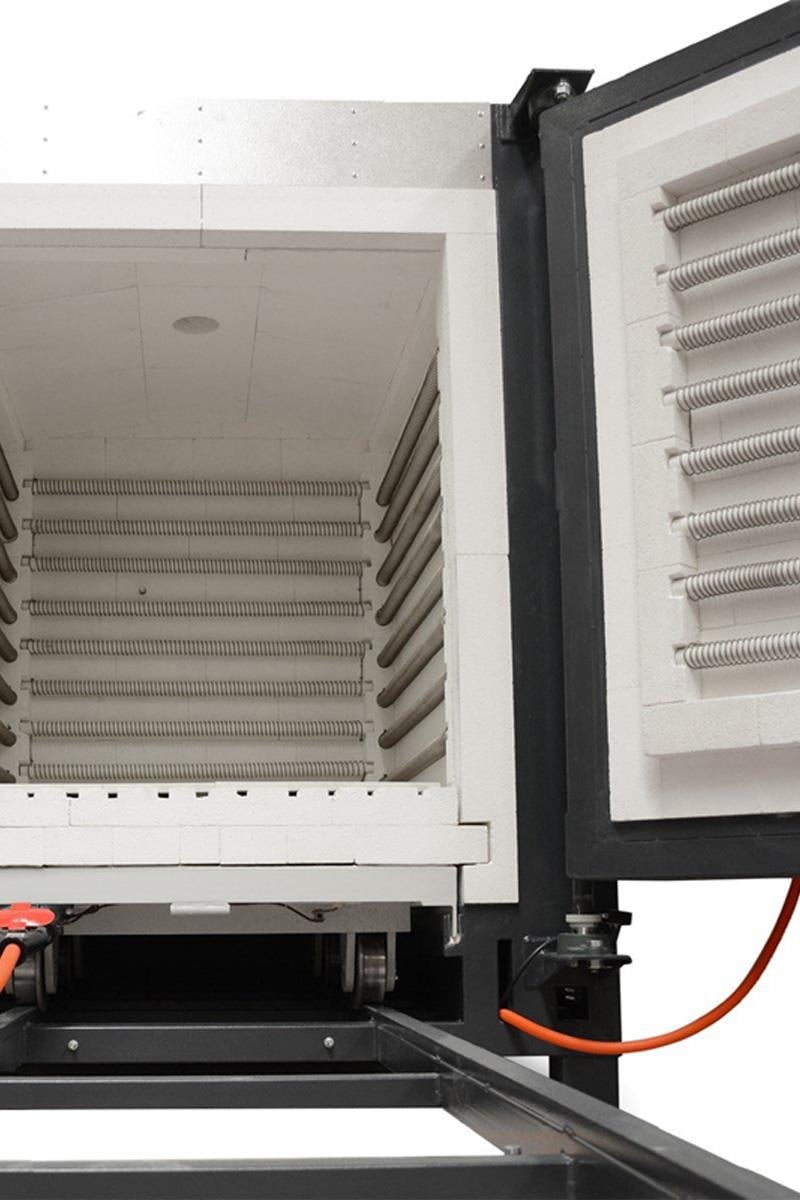

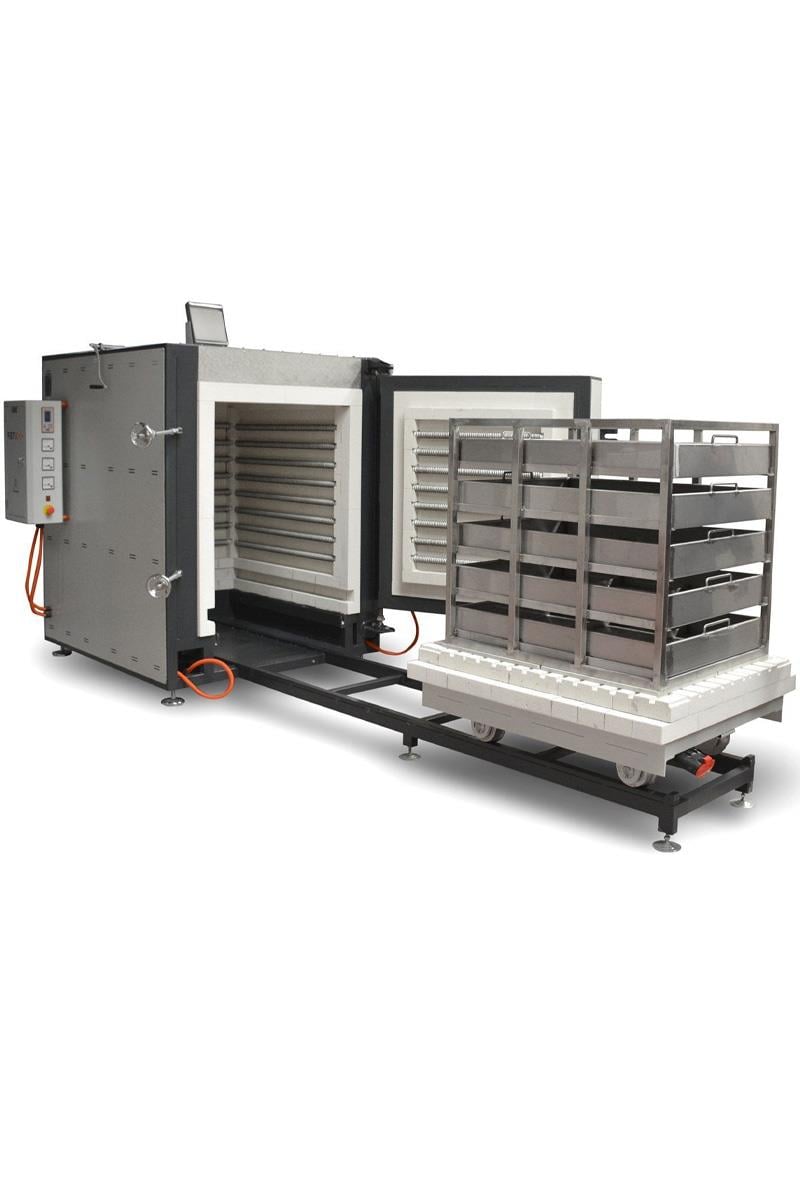

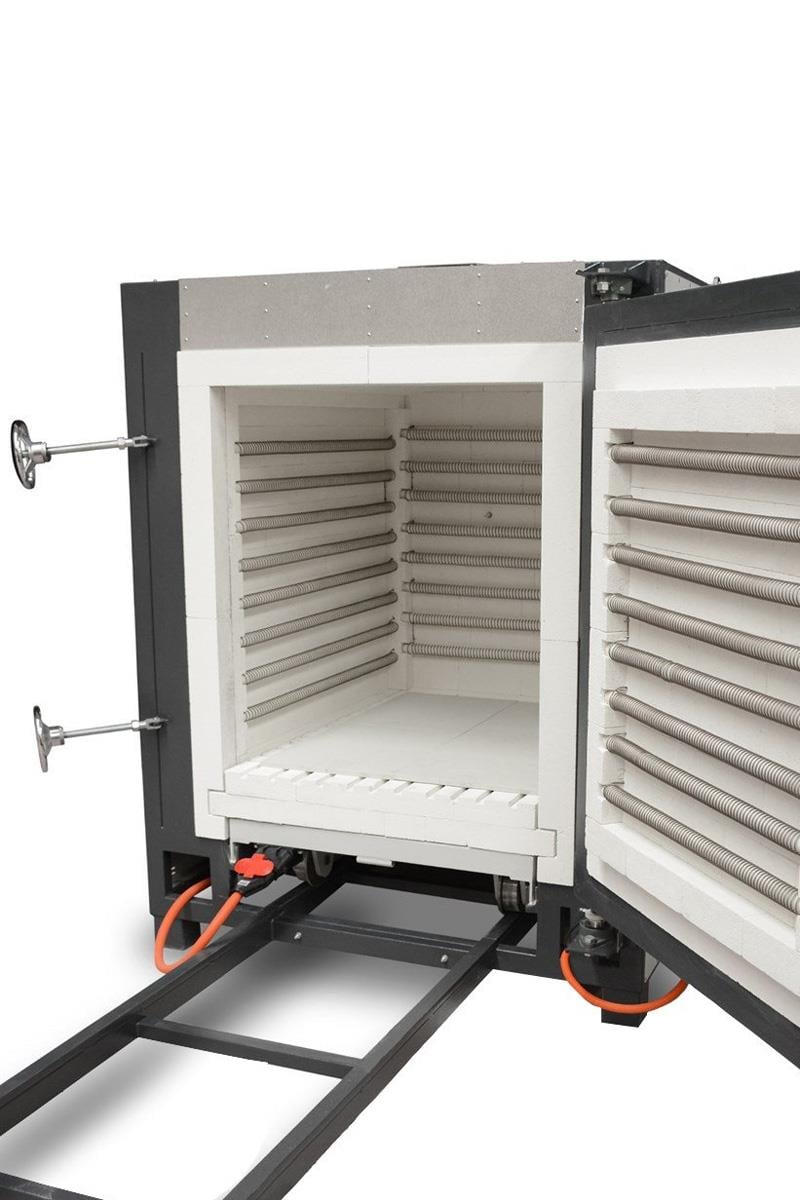

RSA750 TILE KILN WITH TROLLEY
RSA750 TILE KILN WITH TROLLEY
RSA750 TILE KILN WITH TROLLEY
RSA750 TILE KILN WITH TROLLEY
RSA750 TILE KILN WITH TROLLEY
RSA750 TILE KILN WITH TROLLEY
RSA750 TILE KILN WITH TROLLEY
RSA750 TILE KILN WITH TROLLEY

TILE KILNS



Tile is a special ceramic type peculiar to Turkey, it has a soft, high quartz ingredient body and glazed with low-fire soft glaze. Ottomans exhibited unique tile samples in many mosques in the 16th century. Turkish ceramic artists still continue this traditional manufacturing type for tile. Refsan has been producing special tile kilns for these producers.







All of our kilns have;



Kanthal A1 electric resistance wires

European Alumina insulation boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate



Model
RSA750
Kiln Type
KILN WITH TROLLEY
Volume
750 LT.
Maximum Temperature
1200°C
Outer Dimensions (WxDxH)
175x190x180cm
Inner Dimensions (WxDxH)
90x90x90cm
Weight
1200 Kg. (Ray Sistemi Hariç)
Phase
Three-phase
Power
400V
Cable Thickness - Fuse
Requirements for 400V RS Model; Cable Thickness 5X16 - Fuse (Amps) 3X80
Connected Load kW
40kW 50kW
Thermocouple
K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Galvanized
Protection Switch
AVAILABLE
Door Lock
AVAILABLE
Wheels
AVAILABLE
Ceramic Fiber
N/A
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
