CERAMIC KILNS
Ceramics are classified as inorganic and nonmetallic materials that are essential to our daily lifestyle. Ceramic and materials engineers are the people who design the processes in which these products can be made, create new types of ceramic products, and find different uses for ceramic products in everyday life.
Ceramics are all around us. This category of materials includes things like tile, bricks, plates, glass, and toilets. Ceramics can be found in products like watches (quartz tuning forks-the time keeping devices in watches), snow skies (piezoelectric-ceramics that stress when a voltage is applied to them), automobiles (sparkplugs and ceramic engine parts found in racecars), and phone lines. They can also be found on space shuttles, appliances (enamel coatings), and airplanes (nose cones). Depending on their method of formation, ceramics can be dense or lightweight. Typically, they will demonstrate excellent strength and hardness properties; however, they are often brittle in nature. Ceramics can also be formed to serve as electrically conductive materials, objects allowing electricity to pass through their mass, or insulators, materials preventing the flow of electricity. Some ceramics, like superconductors, also display magnetic properties.
Refsan has been producing kilns for ceramic industries about every dimension for many years.
All of our kilns have;
Kanthal A1 electric resistance wires
Insulation Boards and bricks resistant up to 1430°C
Digital Programmer can be program with 5 programs contain 15 steps in each program
2 years Warranty, 10 years technical Support
CE Certificate
Kiln Type

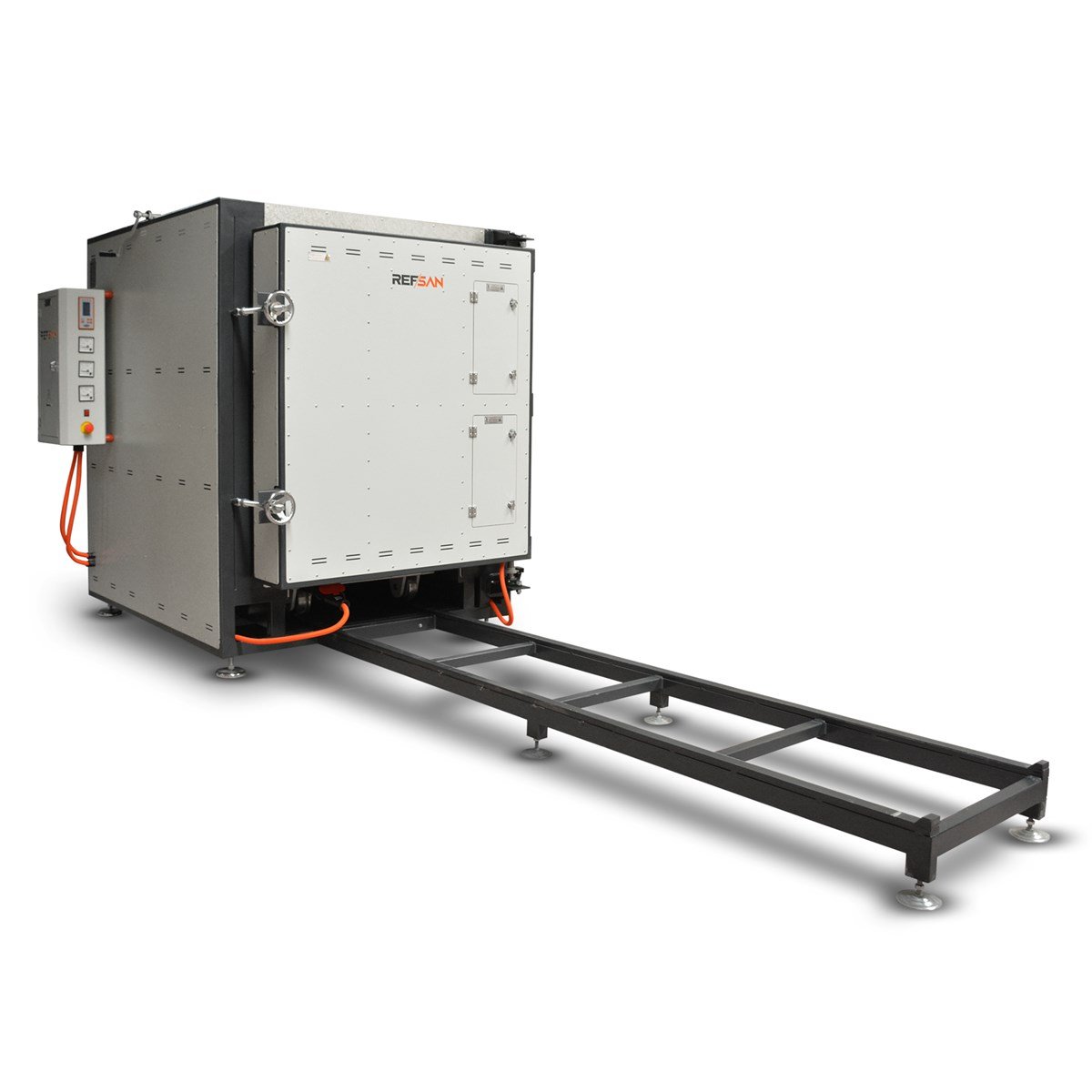

KILN WITH TROLLEY
Maximum Temperature
1200°C
1320°C
Outer Dimensions (WxDxH)
161x268x190cm
Inner Dimensions (WxDxH)
110x170x110cm
Weight
1700 Kg. (Ray Sistemi Hariç)
Connected Load kW
105kW (Kullanıldığı Sektöre Göre Değişiklik Gösterebilir)
90kW (Kullanıldığı Sektöre Göre Değişiklik Gösterebilir)
Themocouple Count
3 (Floor+Middle+Top)
Thermocouple
K TYPE ( 0 - 1200 °C)
S TYPE ( 0 - 1300 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Structure of Body
Galvanized
Paint of Kiln
Electrostatic Powder Dye
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Protection Switch
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Automatically Start-up on Any Desired Time
AVAILABLE
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Accessories (Optional)
Refractory Kiln Shelf
Refractory Prop
Product Setter
Kiln Shelves (Optional)
40*50 cm.
