ANNEALING / THERMAL PROCESSING KILNS
In metallurgy and materials science, annealing is a heat treatment that alters the physical and sometimes chemical properties of a material to increase its ductility and reduce its hardness, making it more workable. It involves heating a material above its recrystallization temperature, maintaining a suitable temperature for a suitable amount of time, and then allow slow cooling.
Heat treating (or heat treatment) is a group of industrial, thermal and metalworking processes used to alter the physical, and sometimes chemical, properties of a material. The most common application is metallurgical. Heat treatments are also used in the manufacture of many other materials, such as glass. Heat treatment involves the use of heating or chilling, normally to extreme temperatures, to achieve the desired result such as hardening or softening of a material.
Refsan has been producing annealing and thermal processing (heat treatment) furnaces in every dimension. The kilns produced by Refsan are being designed and set up for all heat treatment necessity and industrial standards.
All of our kilns have;
Kanthal A1 electric resistance wires
Insulation Boards and bricks resistant up to 1430°C
Digital Programmer can be program with 5 programs contain 15 steps in each program
2 years Warranty, 10 years technical Support
CE Certificate
Kiln Type

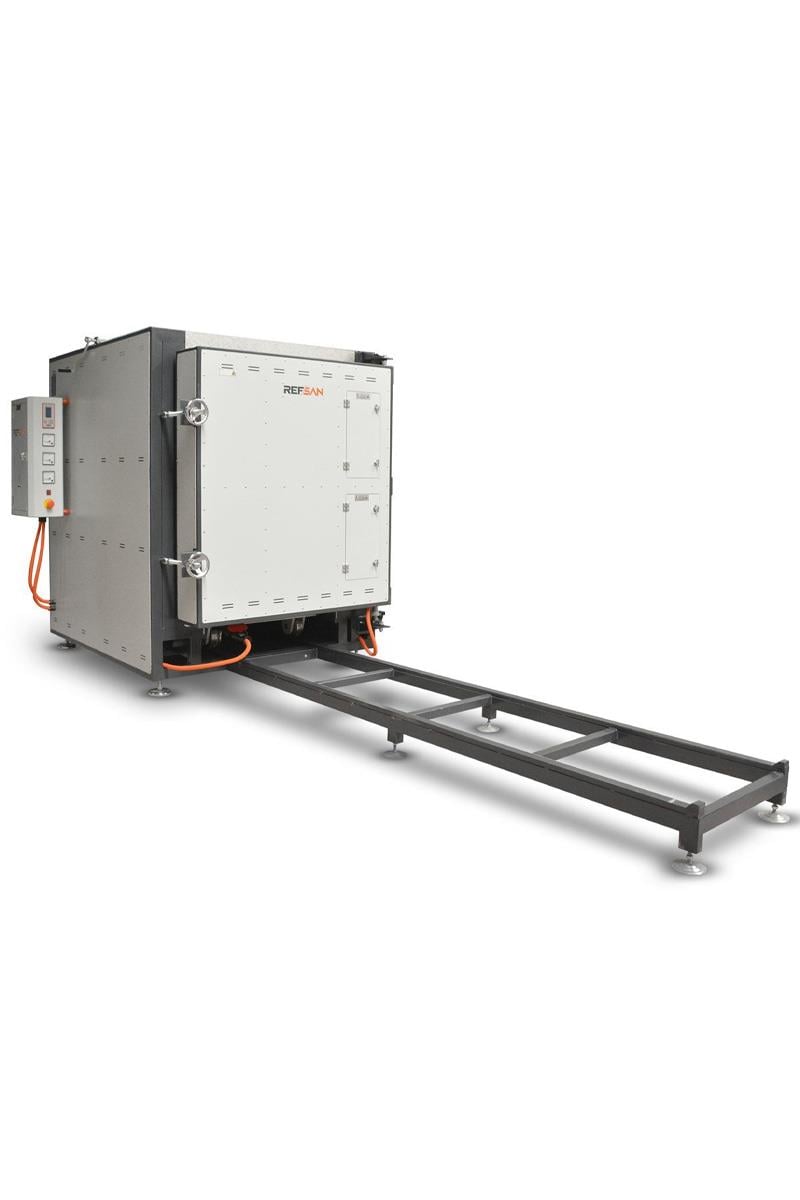

KILN WITH TROLLEY
Maximum Temperature
1200°C
Outer Dimensions (WxDxH)
161x268x190cm
Inner Dimensions (WxDxH)
110x170x110cm
Weight
1700 Kg. (Ray Sistemi Hariç)
Connected Load kW
90kW (Kullanıldığı Sektöre Göre Değişiklik Gösterebilir)
105kW (Kullanıldığı Sektöre Göre Değişiklik Gösterebilir)
Thermocouple
K TYPE ( 0 - 1200 °C)
Themocouple Count
3 (Floor+Middle+Top)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Structure of Body
Galvanized
Paint of Kiln
Electrostatic Powder Dye
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Protection Switch
AVAILABLE
Control Unit ( Optional)
Bentrup TC705 ( Germany)
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Automatically Exhaust Control
AVAILABLE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Accessories (Optional)
Refractory Kiln Shelf
Refractory Prop
Product Setter
