SECTORS WHERE IT IS USED
-Ceramic, Heat Treatment, Annealing, Ramat, Screen Printing, Gold Gilding etc.
-Internal dimensions: d170 x w110 x h110cm - 2000dm³ usable internal volume. (Different sizes can be requested)
-Power 70 - 75 KW. (Depends on the sector used)
-Max. Operating Temperature RS Model 1200 - RSH Model 1300ºC.
-Voltage 400 V.

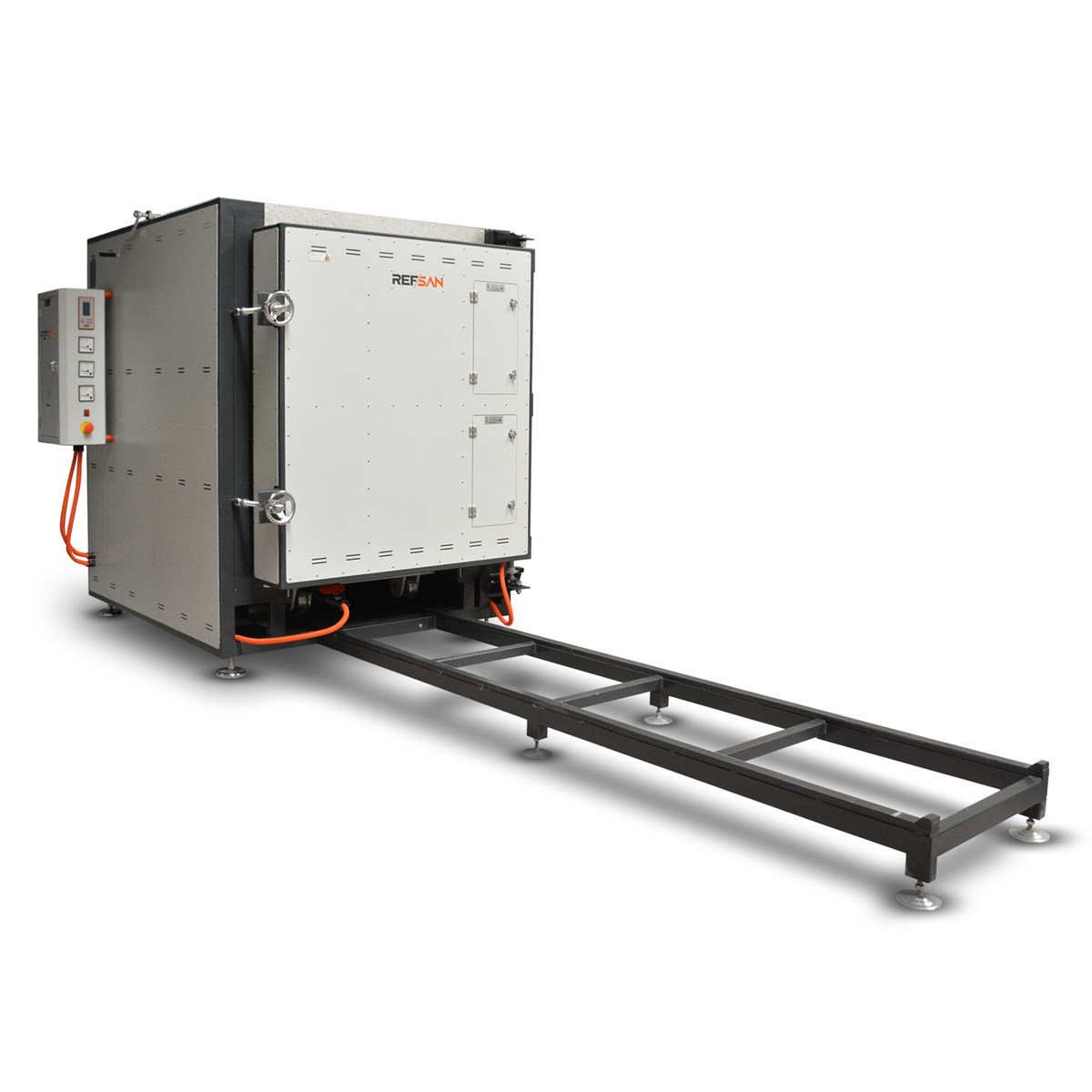

-Oven type: Chamber type, with trolley.
-The car is moving on the rail, manually in and out of the oven. (Uneven ground does not cause problems)
-Insulation content: Alumina brick with 1430°C resistance, board plate with 1260°C resistance, X1000 Board with 1000°C resistance.
NOTE
Fiber is not used in the oven. Compared to fiber ovens; 3-4 times life span, provides great electricity savings.
-Paint: Interior and exterior surfaces are completely electrostatic powder painted (baked in a special oven at 200ºC).
-Heater : 1400ºC resistant, KANTHAL A1 resistance array.
-Oven floor level is at a suitable height from the ground for ease of operation.
-Electrical control elements are Telemecanique and Siemens.
-Control panel on the oven and oven electrical connections are protected.
- 40 mm ventilation gap on 4 surfaces. (provides easy heating and cooling of the oven, easy removal of gas and water vapor and long life of the metal parts)
-Top ventilation cover (automatic opening and closing feature at desired degree)
-5 directional heating (homogeneous heat distribution ensures that all products reach the same temperature)
CONTROL RF800 DIGITAL PROGRAMMER
-It shows date, time, program, step, set temperature, time to exit, current temperature and remaining time at the top of the screen.
-Automatically activates itself in case of power cuts.
-Gives a report of the last 8 burns at 2 minute intervals. You can see the whole burn.
-5 programs and the ability to enter 15 sets in each program.
-Close and open the top cover automatically
-Temperature measurement: K Type NiCr-Ni 25-1200ºC for RS Model, S Type Pt-Rd-Pt thermocouple with rear center single point for RSH Model.
-Oven cooling system is free cooling.
-Automatically cuts off the electricity when the door is opened.
-2 Year Warranty + 10 Year Service Warranty
-CE Certified in accordance with European Standards
ACCESSORIES-OPTIONAL
-To be used in the oven;
-Oven Shelf (400x500x15 mm) made of cordierite material and 1250ºC resistant.
-Oven Shelf Foot (Support) : 5cm long, round or square, 1250ºC resistant, interlocking shelf foot.
