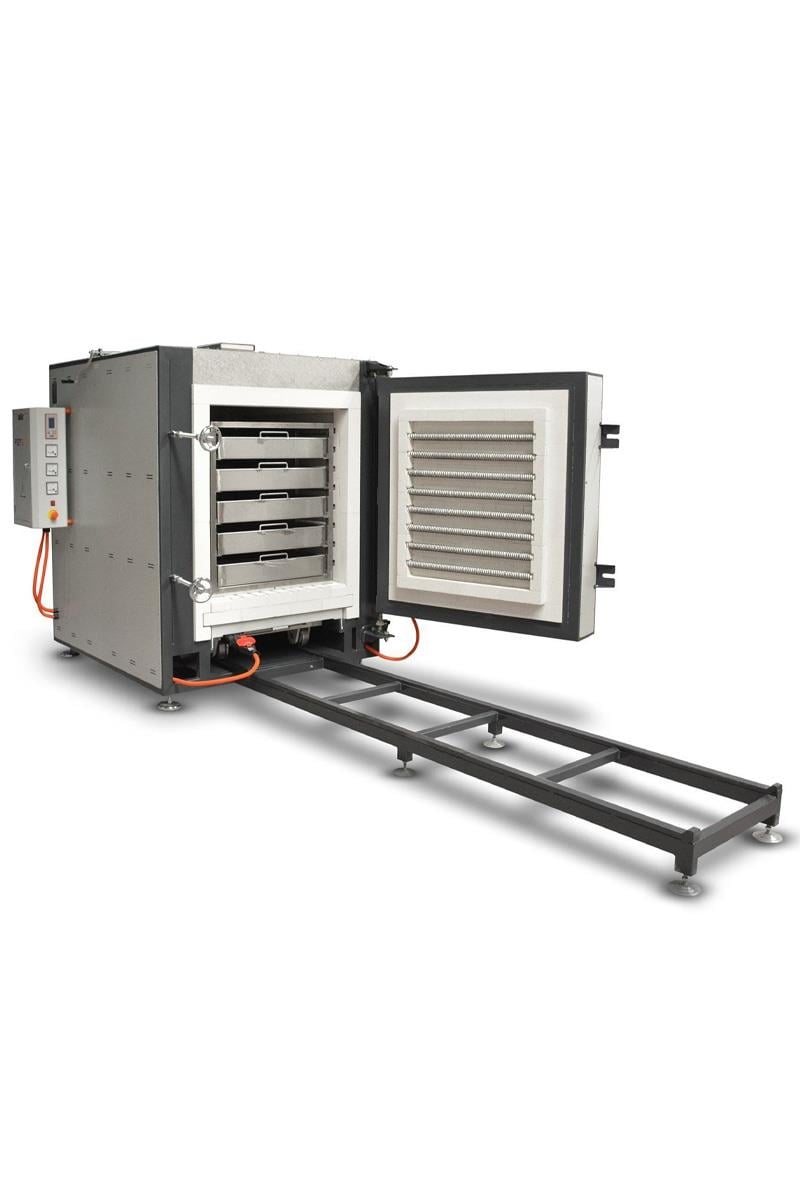

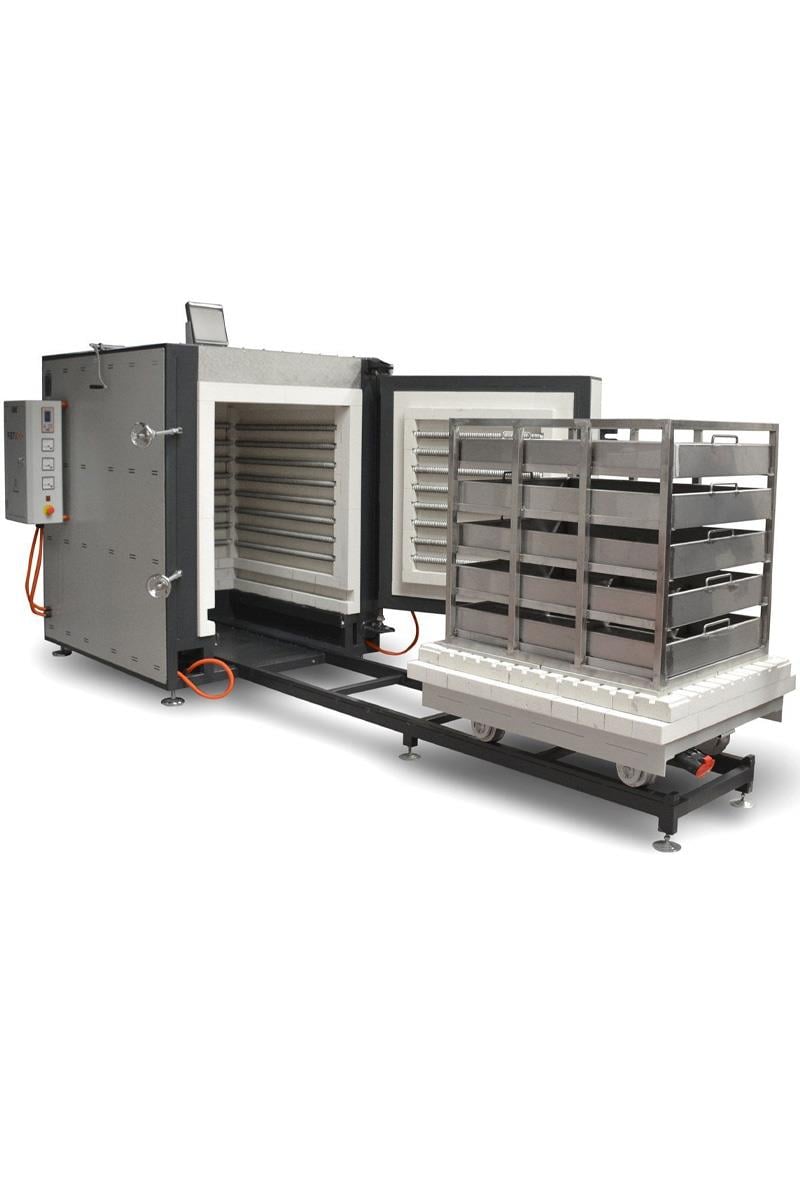

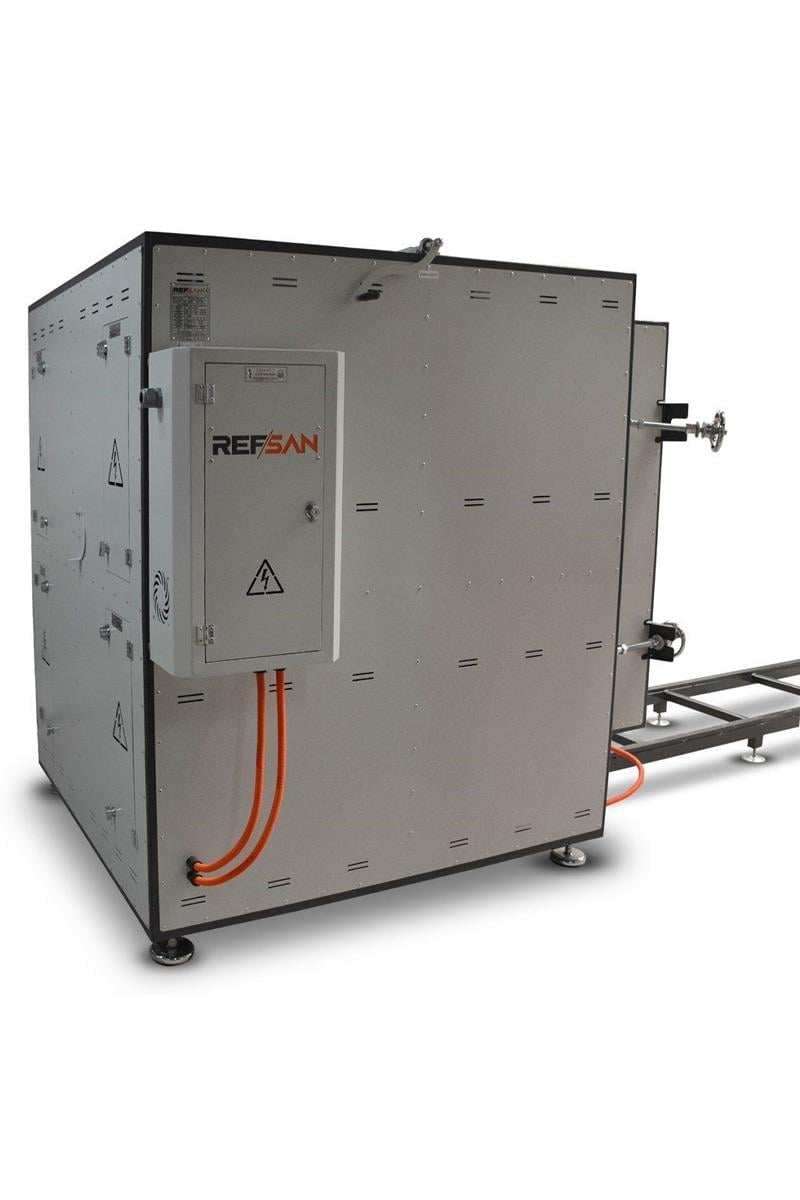

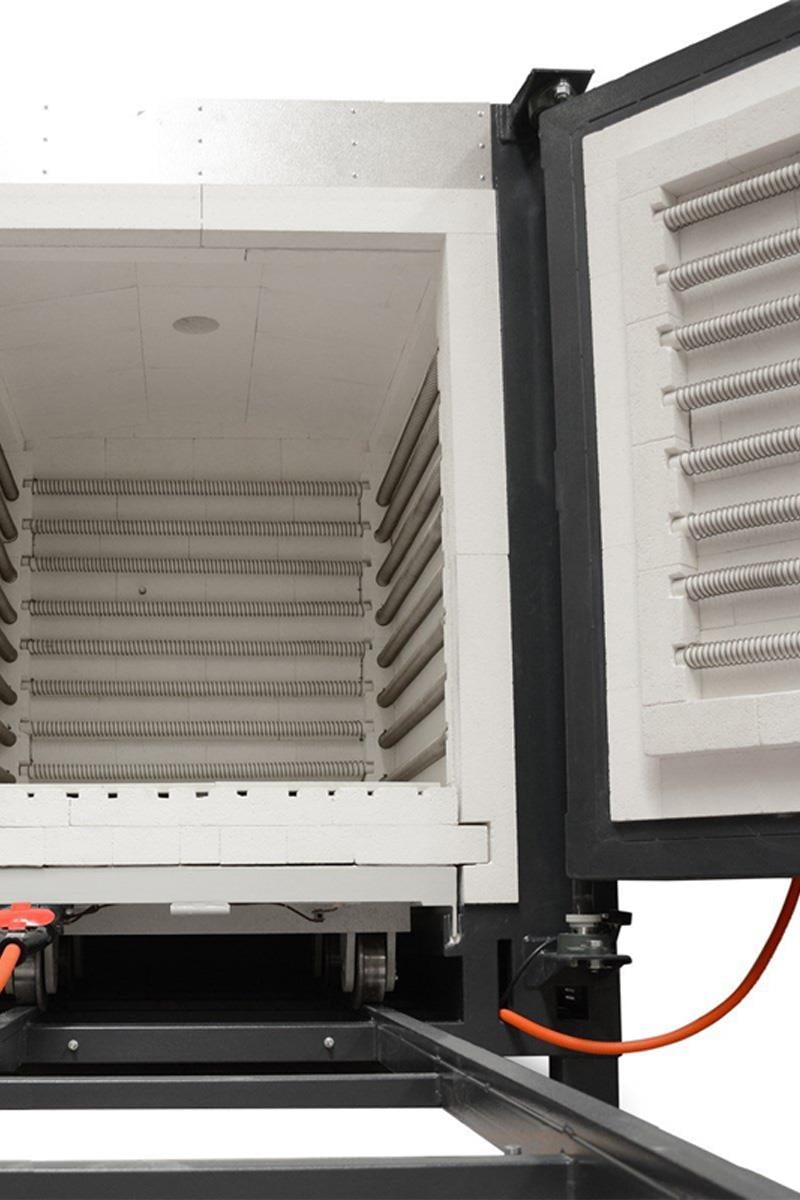

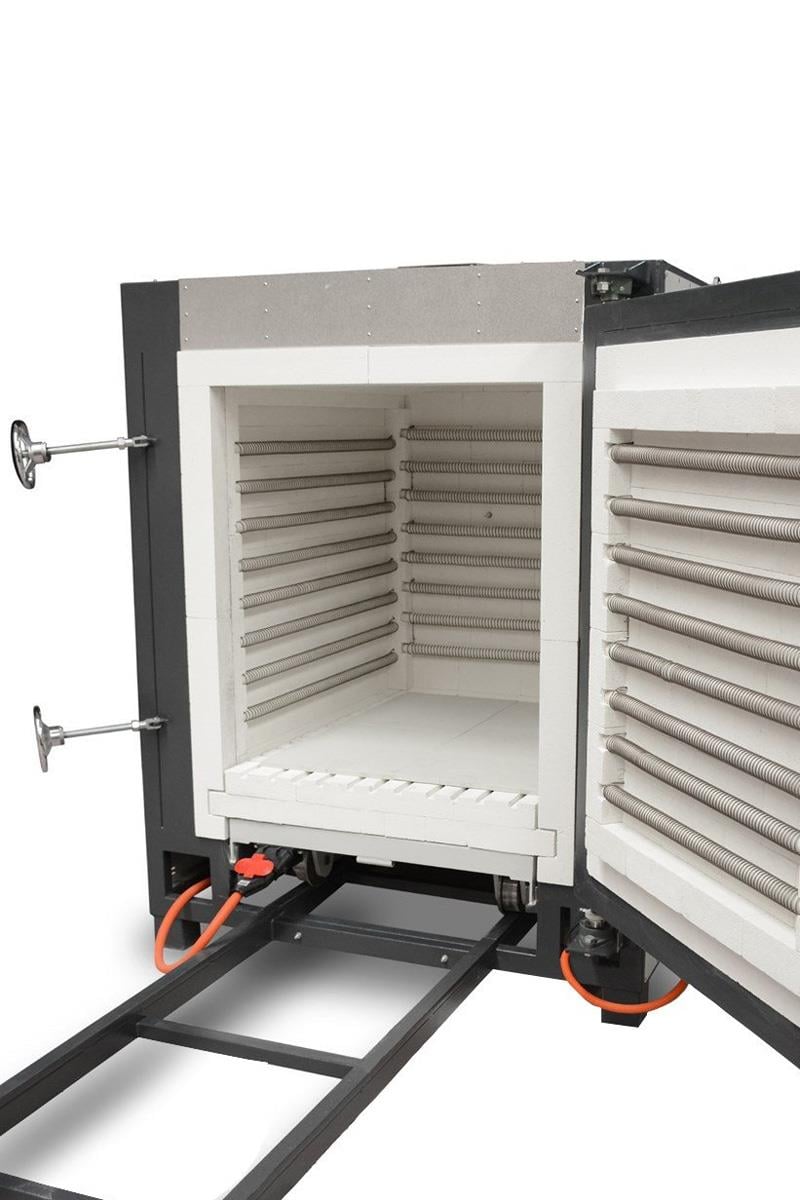

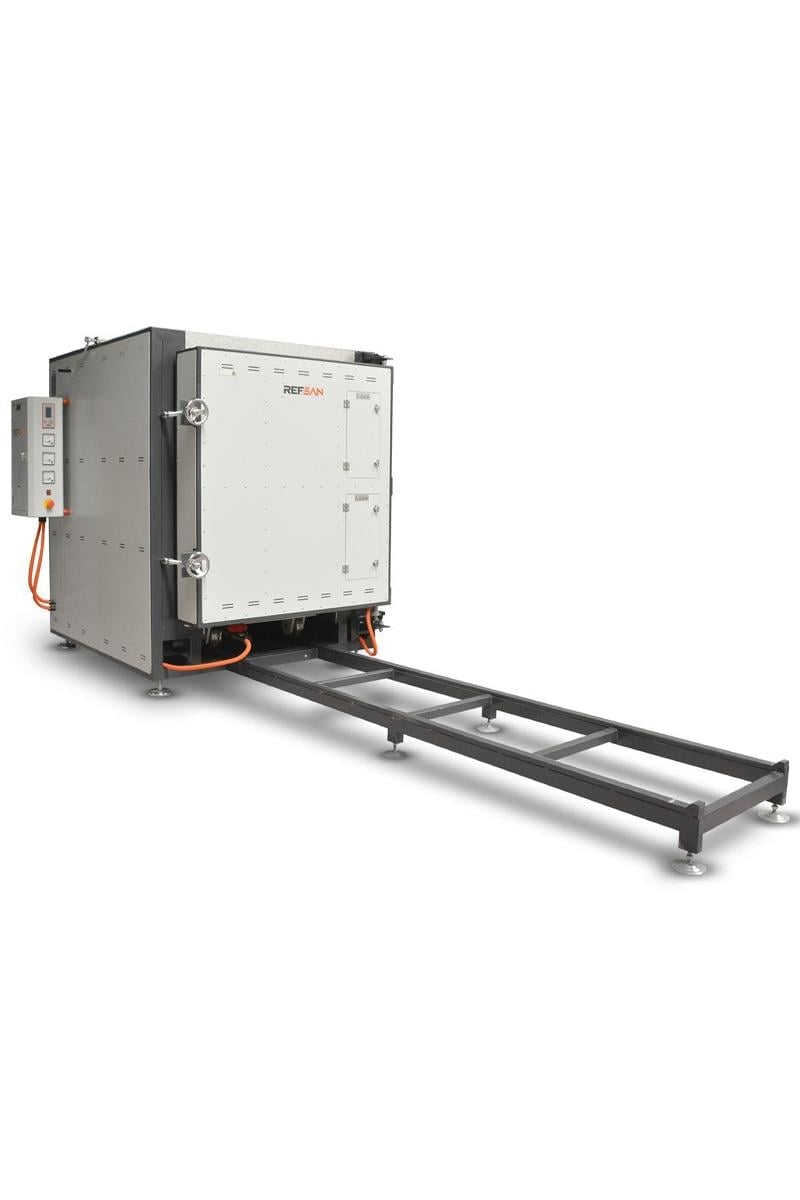

RSa1000 Ceramic Kiln With Trolley (R12313)

0.0
Brand : REFSAN
Price : 0,00€
Barkod : 8681910649804

Adet

Artır Azalt

CERAMIC KILNS

Ceramics are classified as inorganic and nonmetallic materials that are essential to our daily lifestyle.  Ceramic and materials engineers are the people who design the processes in which these products can be made, create new types of ceramic products, and find different uses for ceramic products in everyday life.

            Ceramics are all around us.  This category of materials includes things like tile, bricks, plates, glass, and toilets.  Ceramics can be found in products like watches (quartz tuning forks-the time keeping devices in watches), snow skies (piezoelectric-ceramics that stress when a voltage is applied to them), automobiles (sparkplugs and ceramic engine parts found in racecars), and phone lines.  They can also be found on space shuttles, appliances (enamel coatings), and airplanes (nose cones).  Depending on their method of formation, ceramics can be dense or lightweight.  Typically, they will demonstrate excellent strength and hardness properties; however, they are often brittle in nature.  Ceramics can also be formed to serve as electrically conductive materials, objects allowing electricity to pass through their mass, or insulators, materials preventing the flow of electricity.  Some ceramics, like superconductors, also display magnetic properties.

Refsan has been producing kilns for ceramic industries about every dimension for many years.

All of our kilns have;

Kanthal A1 electric resistance wires

Insulation Boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate




Model
RSA1.000
Kiln Type
KILN WITH TROLLEY
Volume
1000 LT. (1 m3)
Maximum Temperature
1200°C
Inner Dimensions (WxDxH)
90x110x100cm
Weight
1450 Kg. (Ray Sistemi Hariç)
Phase
Three-phase
Power
400V
Cable Thickness - Fuse
Requirements for 400V RS Model; Cable Thickness 5X16 - Fuse (Amps) 3X80
Connected Load kW
50kW
Thermocouple
K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Galvanized
Door Lock
AVAILABLE
Ceramic Fiber
N/A
Protection Switch
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
40*50 cm.
