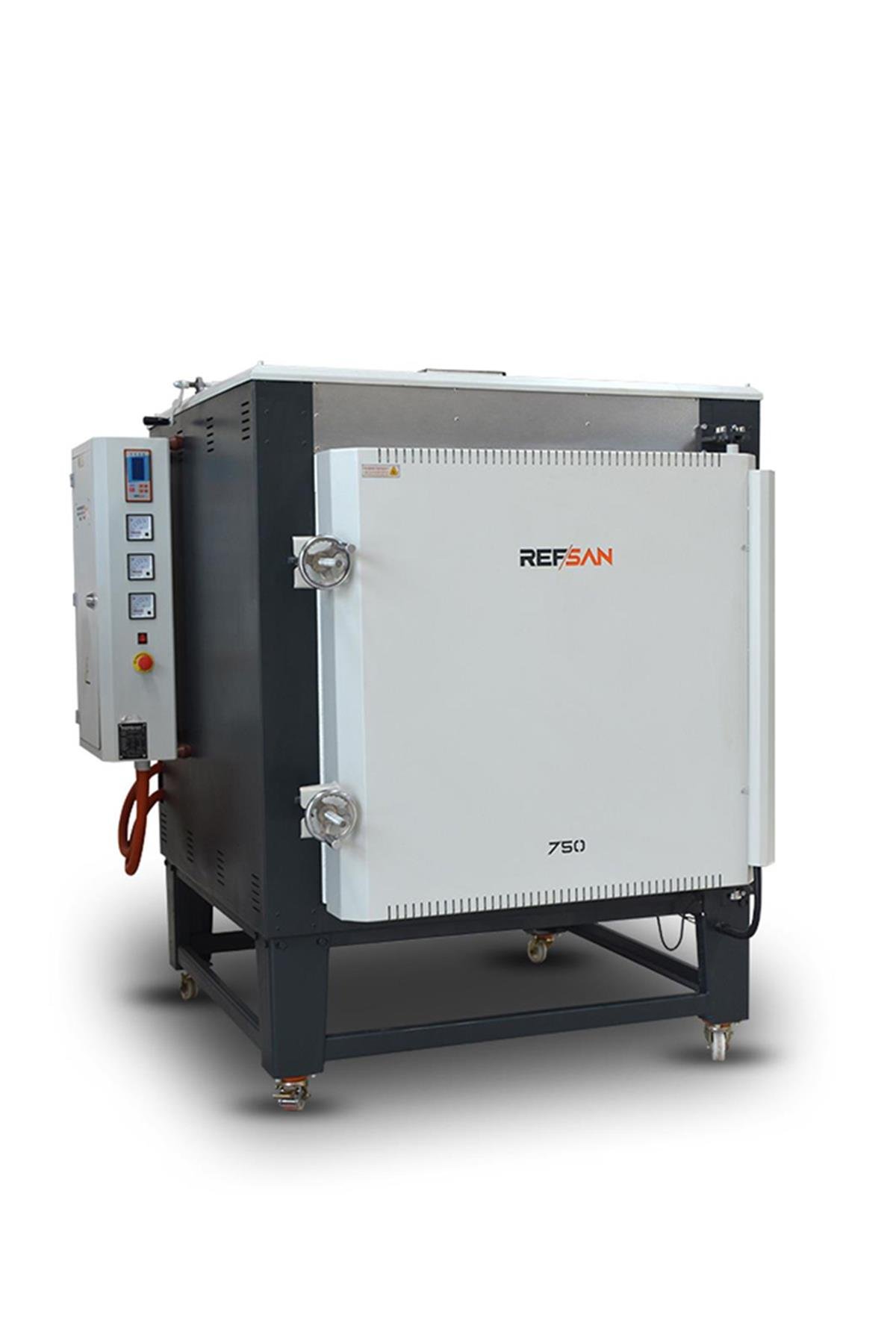

RS750 DROSS KILN
RS750 DROSS KILN
RS750 DROSS KILN
RS750 DROSS KILN
RS750 DROSS KILN

DROSS KILNS



Dross is a mass of solid impurities floating on a molten metal or dispersed in the metal, such as in wrought iron. It forms on the surface of low-melting-point metals such as tin, lead, zinc or aluminum or alloys by oxidation of the metal. For higher melting point metals such as steel, oxidized impurities melt and float making them easy to pour off.



With wrought iron, hammering and later rolling removed some dross. With tin and lead the dross can be removed by adding sodium hydroxide pellets, which dissolve the oxides and form a slag. If floating, dross can also be skimmed off.



Dross, as a solid, is distinguished from slag, which is a liquid. Dross product is not entirely waste material; for example, aluminium dross can be recycled and is used in secondary steelmaking for slag deoxidation.



All of our kilns have;



Kanthal A1 electric resistance wires

Insulation Boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate





Model
RS750
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
750 LT.
Maximum Temperature
900 °C
Outer Dimensions (WxDxH)
160x165x190cm
Inner Dimensions (WxDxH)
90x90x90cm
Weight
1100 Kg.
Phase
Three-phase
Power
400V
Cable Thickness - Fuse
Requirements for 400V RS Model; Cable Thickness 5X16 - Fuse (Amps) 3X80
Connected Load kW
40kW
Thermocouple
K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1260°C
Heating Type
ELECTRIC RESISTANCES KANTHAL SPECIAL ALLOY
Contact Type
SSR
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Galvanized
Protection Switch
AVAILABLE
Door Lock
AVAILABLE
Wheels
AVAILABLE
Ceramic Fiber
N/A
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
