DECAL KILNS



A ceramic decal is a transfer system that is used to apply pre-printed images or designs to ceramic tableware, ornamental ware and tiles, and glass containers.

The decal method is often used for the decoration of pottery. A special paper is used but the ceramic colours cannot be printed directly and the actual printing is done in varnish and the color then dusted on. The decal is placed colored side-down on the sized ware, rubbed firmly, and the paper then sponged off.

Refsan has been producing decal kilns for every dimension. Decal kilns are being designed for working up to 900°C.



All of our kilns have;



Kanthal A1 electric resistance wires

Insulation Boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate

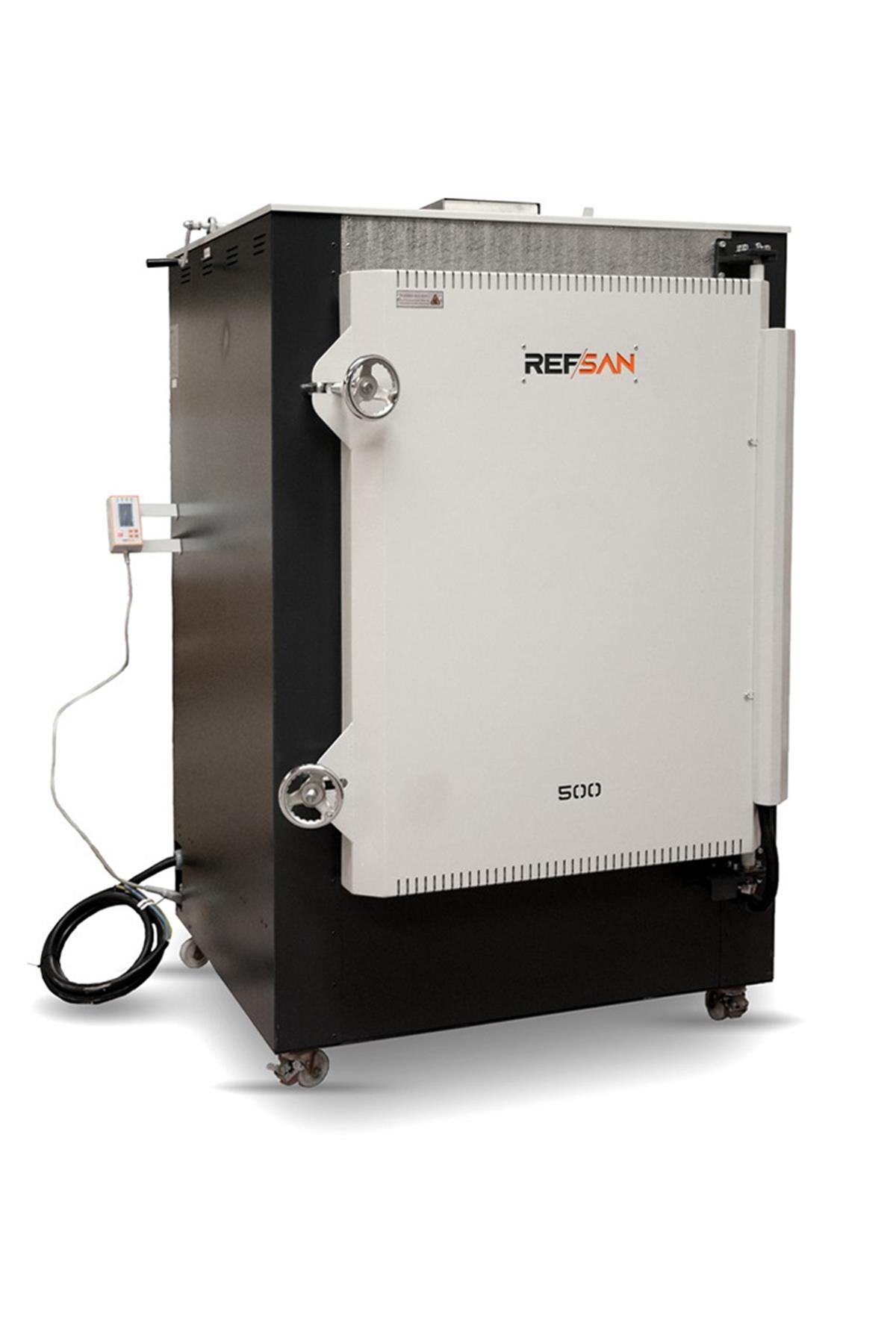

Model
RS500
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
500 LT.
Maximum Temperature
900 °C
Outer Dimensions (WxDxH)
120x120x190cm
Inner Dimensions (WxDxH)
70x70x100 cm.
Weight
930 kg
Phase
Three-phase
Power
400V
Cable Thickness - Fuse
Requirements for 400V RS Model; Cable Thickness 5X10 - Fuse (Amps) 3X50
Connected Load kW
30kW
Thermocouple
K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Paint of Kiln
Electrostatic Powder Dye
Door Lock
AVAILABLE
Wheels
AVAILABLE
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
60*60 cm.
