TILE KILNS



Tile is a special ceramic type peculiar to Turkey, it has a soft, high quartz ingredient body and glazed with low-fire soft glaze. Ottomans exhibited unique tile samples in many mosques in the 16th century. Turkish ceramic artists still continue this traditional manufacturing type for tile. Refsan has been producing special tile kilns for these producers.



All of our kilns have;



Kanthal A1 electric resistance wires

European Alumina insulation boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate

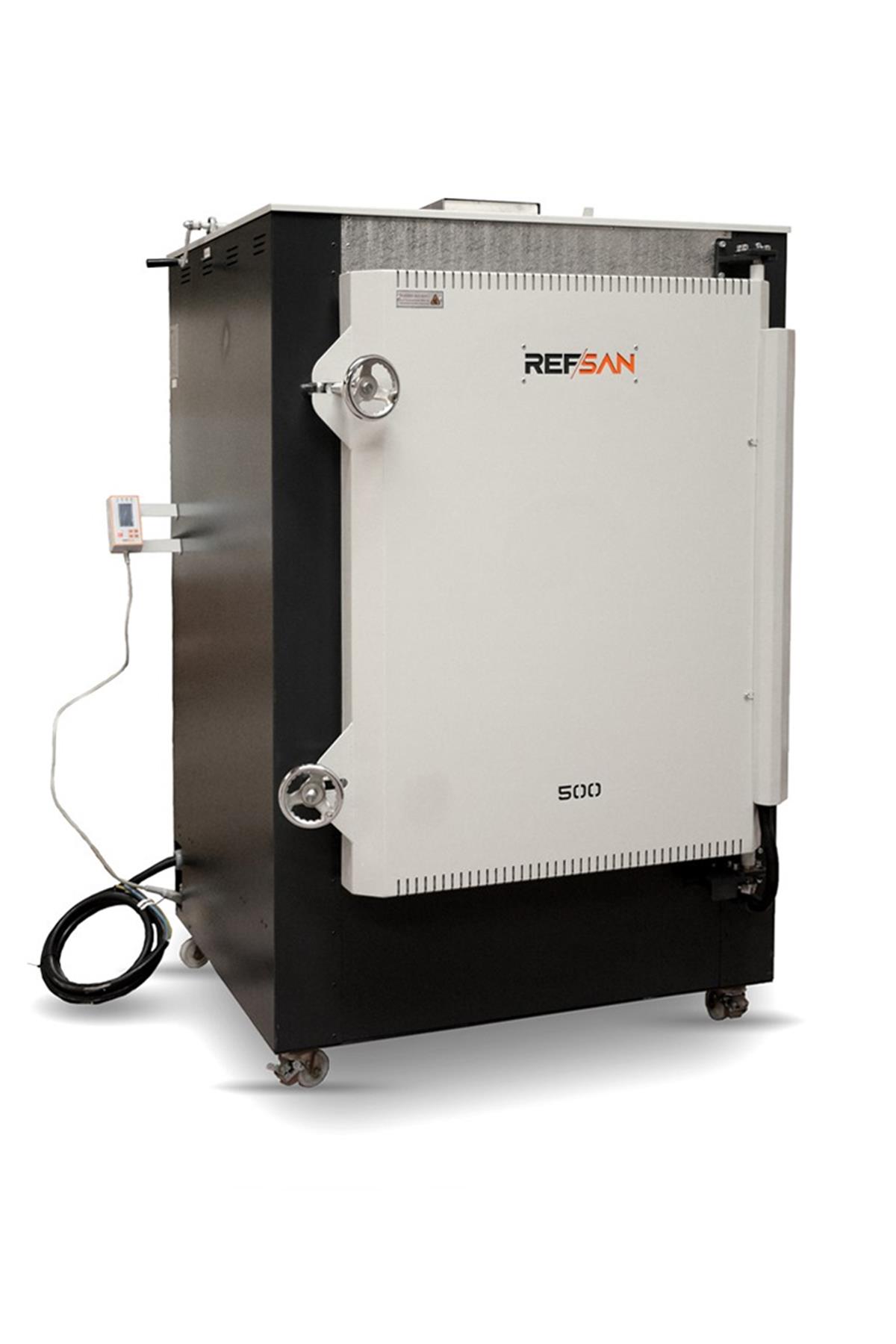

Model
RS500
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
500 LT.
Maximum Temperature
1100°C
Outer Dimensions (WxDxH)
120x120x190cm
Inner Dimensions (WxDxH)
70x70x100 cm.
Weight
930 kg
Phase
Three-phase
Power
400V
Cable Thickness - Fuse
Requirements for 400V RS Model; Cable Thickness 5X10 - Fuse (Amps) 3X50
Connected Load kW
30kW
Thermocouple
K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR

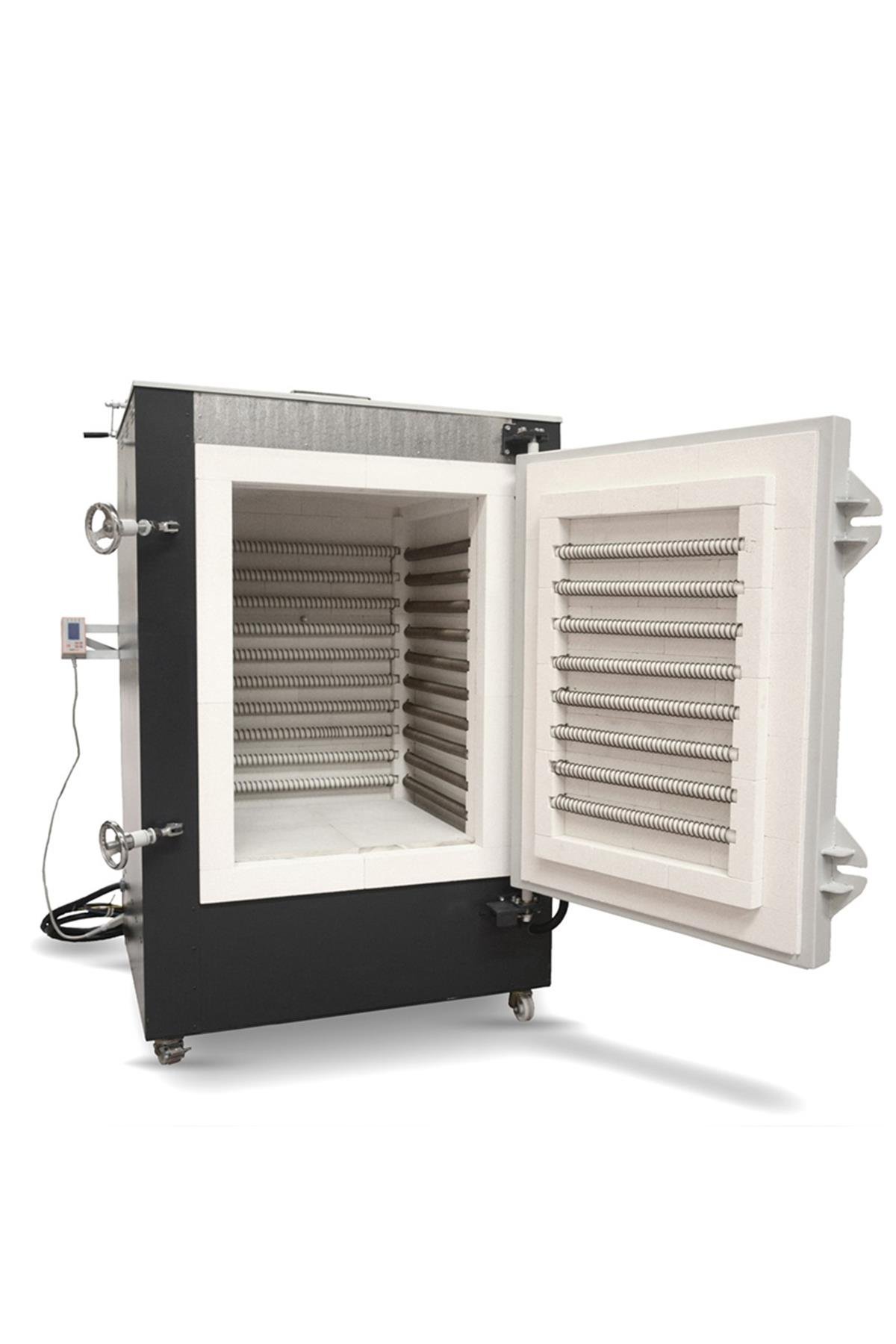

Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Galvanized
Ceramic Fiber
N/A
Door Lock
AVAILABLE
Wheels
AVAILABLE
Protection Switch
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
60*60 cm.
