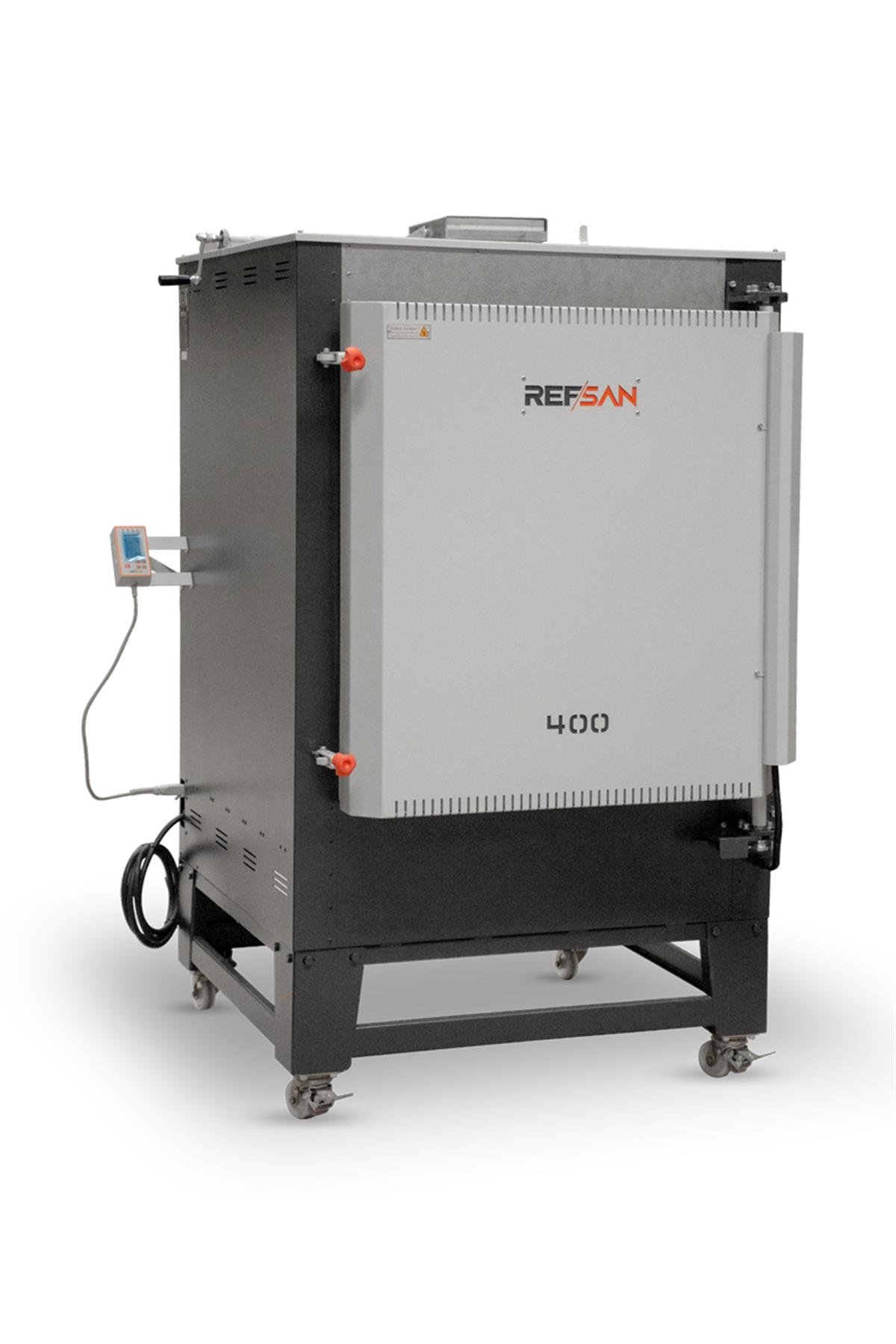

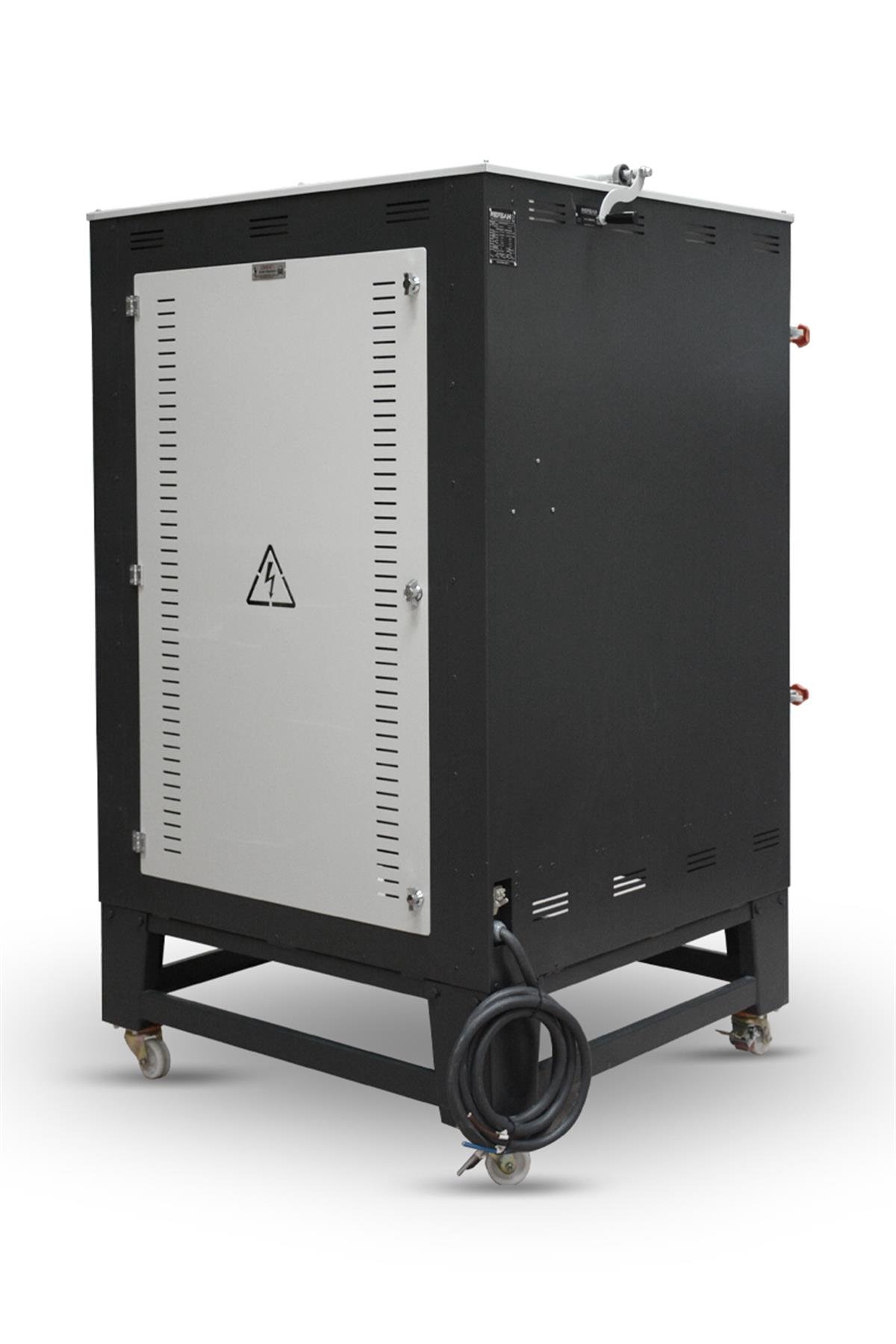

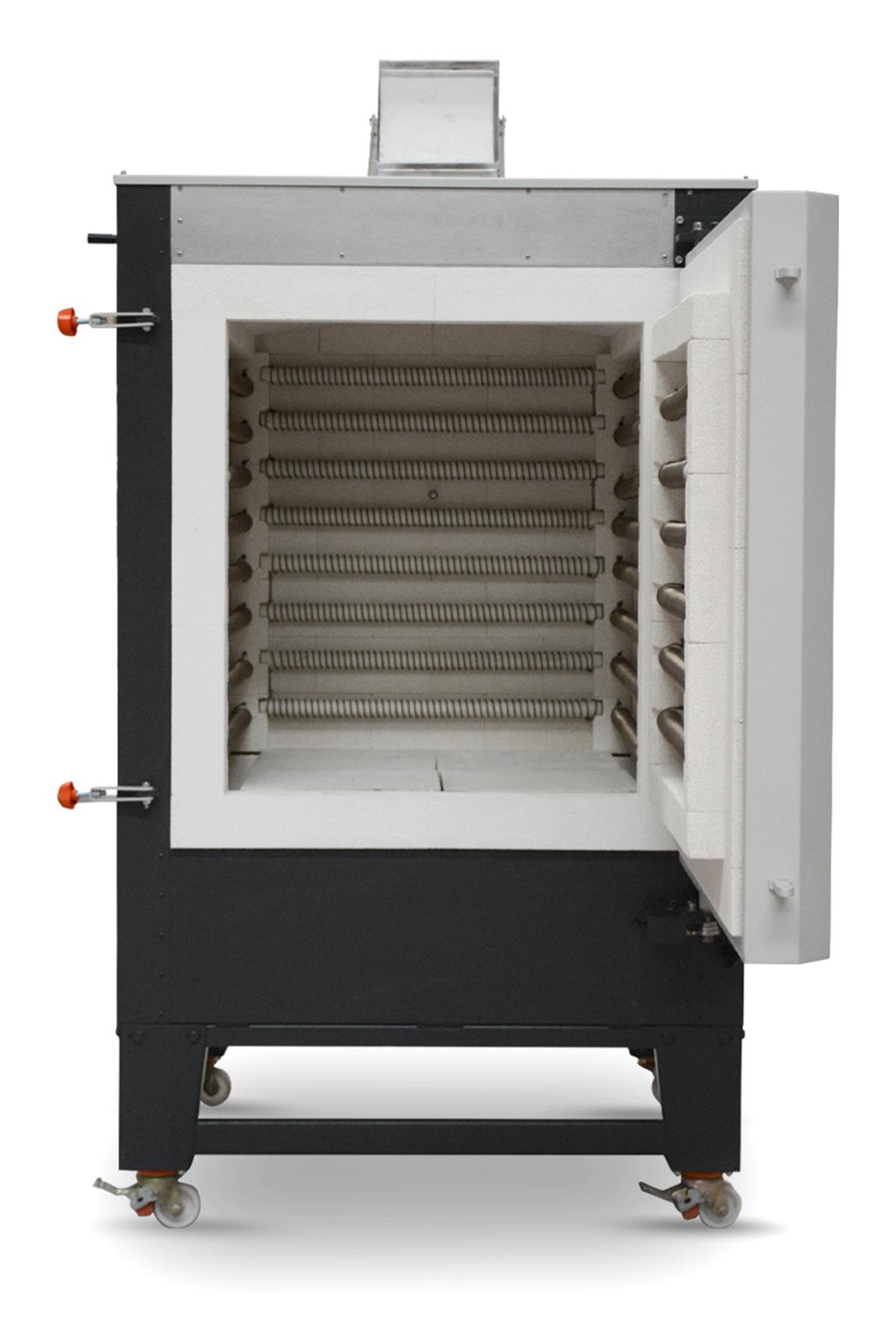

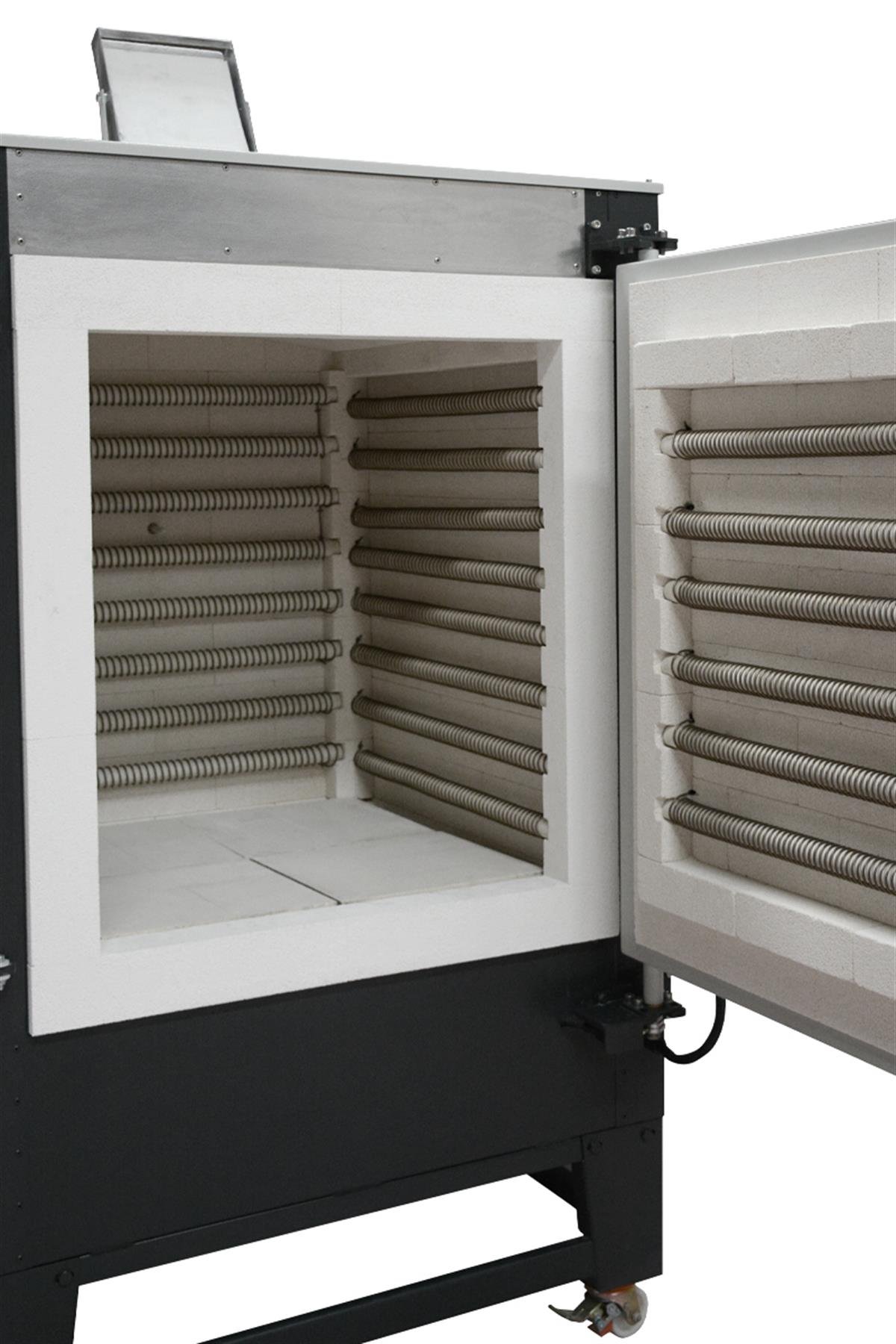

RS400 Tile Kiln (R12237)

0.0
Brand : REFSAN
Price : 0,00€
Barkod : 8681910649484
Add to Favorites
Add to Collection
Add to my Wish List
Compare
Notify me when the price goes down
Notify me when it is in stock

Adet

Artır Azalt
Write a comment
Questions and Answers
Model
RS400
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
400 LT.
Maximum Temperature
1100°C
Outer Dimensions (WxDxH)
110x120x190cm
Inner Dimensions (WxDxH)
70x70x80cm
Weight
675 kg
Phase
Three-phase
Power
400V
Cable Thickness - Fuse
Requirements for 400V RS Model; Cable Thickness 5X6 - Fuse (Amps) 3X40
Connected Load kW
20kW
Thermocouple
K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C

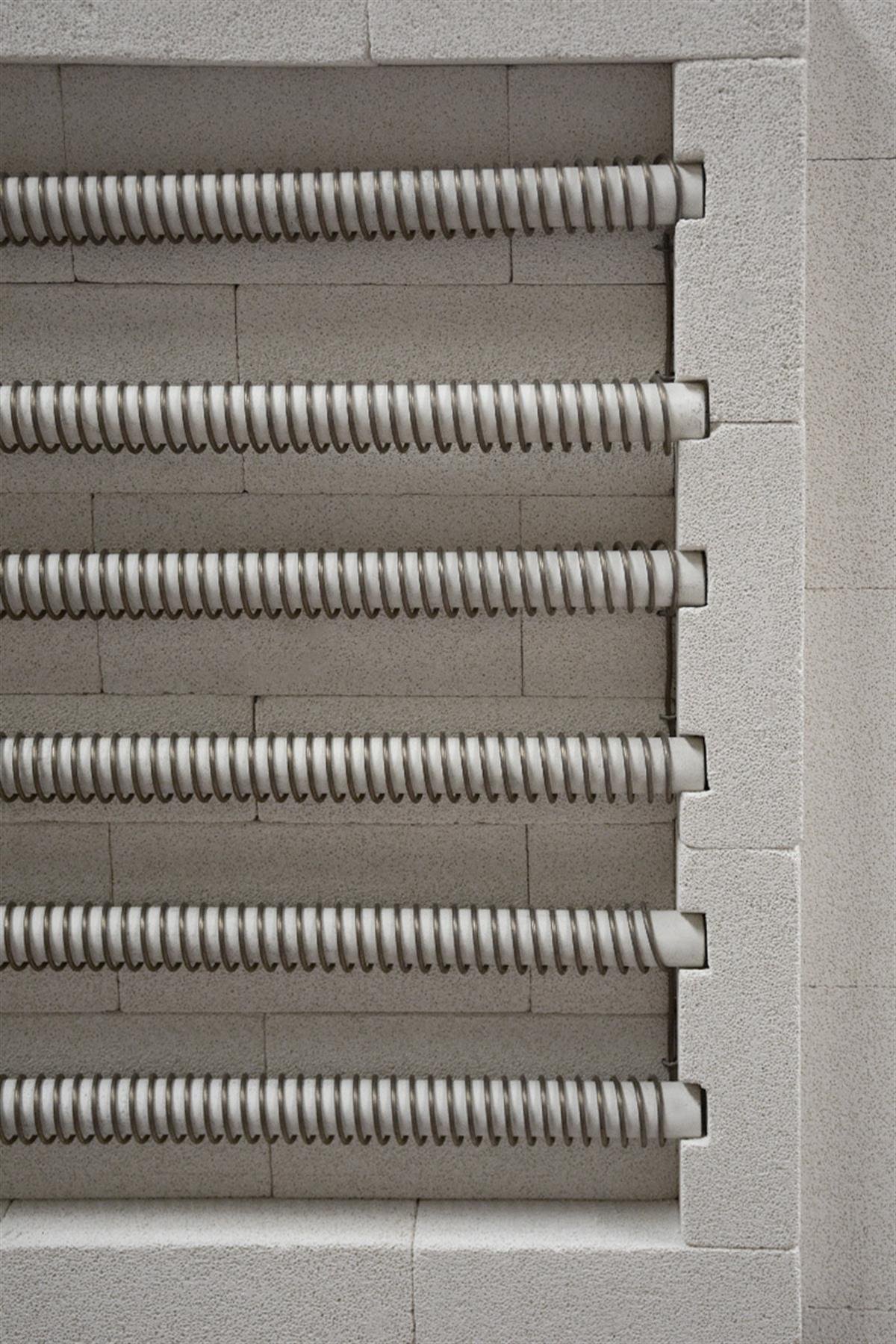

Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Paint of Kiln
Electrostatic Powder Dye
Door Lock
AVAILABLE
Wheels
AVAILABLE
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS

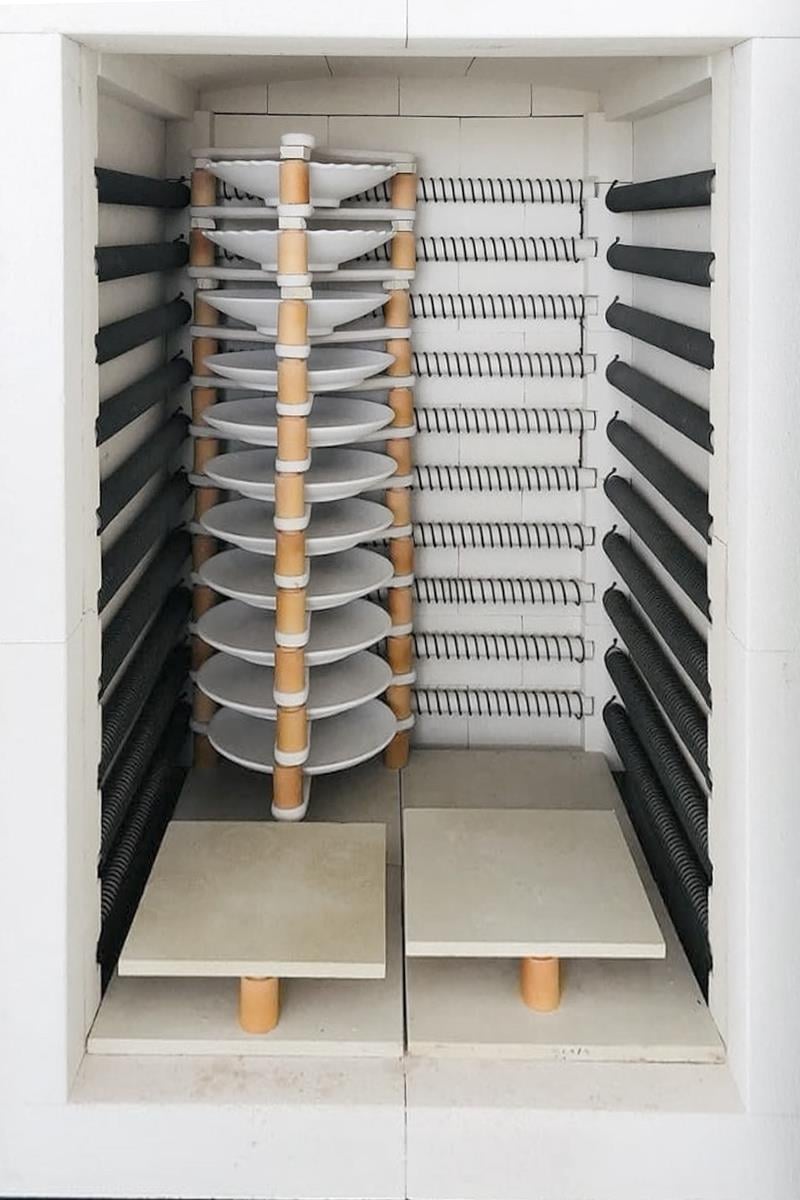

Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
60*60 cm.
