RS2.000 / RSH2.000 Chamber Kiln (R6618)

0.0
Brand : REFSAN
Price : 0,00€
Barkod : 8681910616820



Adet

Artır Azalt

RS2.000 / RSH2.000 CHAMBER TYPE KILN



Technical Specifications :
Heating elements are installed on both sides and positioned on Ceramic Pipe
Long lifetime of the heating elements is ensured as a result of adaptive wire calculations
Silent operation of the heating system is ensured by solidstaterelais type relays
Fast rhythmization of switchgear processes results in precise heat flow
Double coated cover with low external temperatures
Lid contact switch with forced disconnection
Insulation of the oven chamber with lightweight firebricks and special backside isolation for low electricity consumption
6 surfaces inside the oven are completely Alumina Brick, there is absolutely no fiber containing carcinogenic materials inside the oven.
It lasts 3-4 times longer than furnaces using fiber and saves a lot of electricity.
Body sheets are made of precious and shaped steel sheet and painted with electrostatic paint
40 mm ventilation gap on 4 surfaces.
Infinitely adjustable air supply and discharge for short cooling times
Our RS Collection Model is the World's Lowest Electricity Consuming Model in its Class.
The ceiling is in the form of brick and dome. (In Basic Model: Fiber)
Ceiling sheet Special laser cut ventilated Aluminum. (Does not rust or mold.) (Basic Model: DKP Hair)

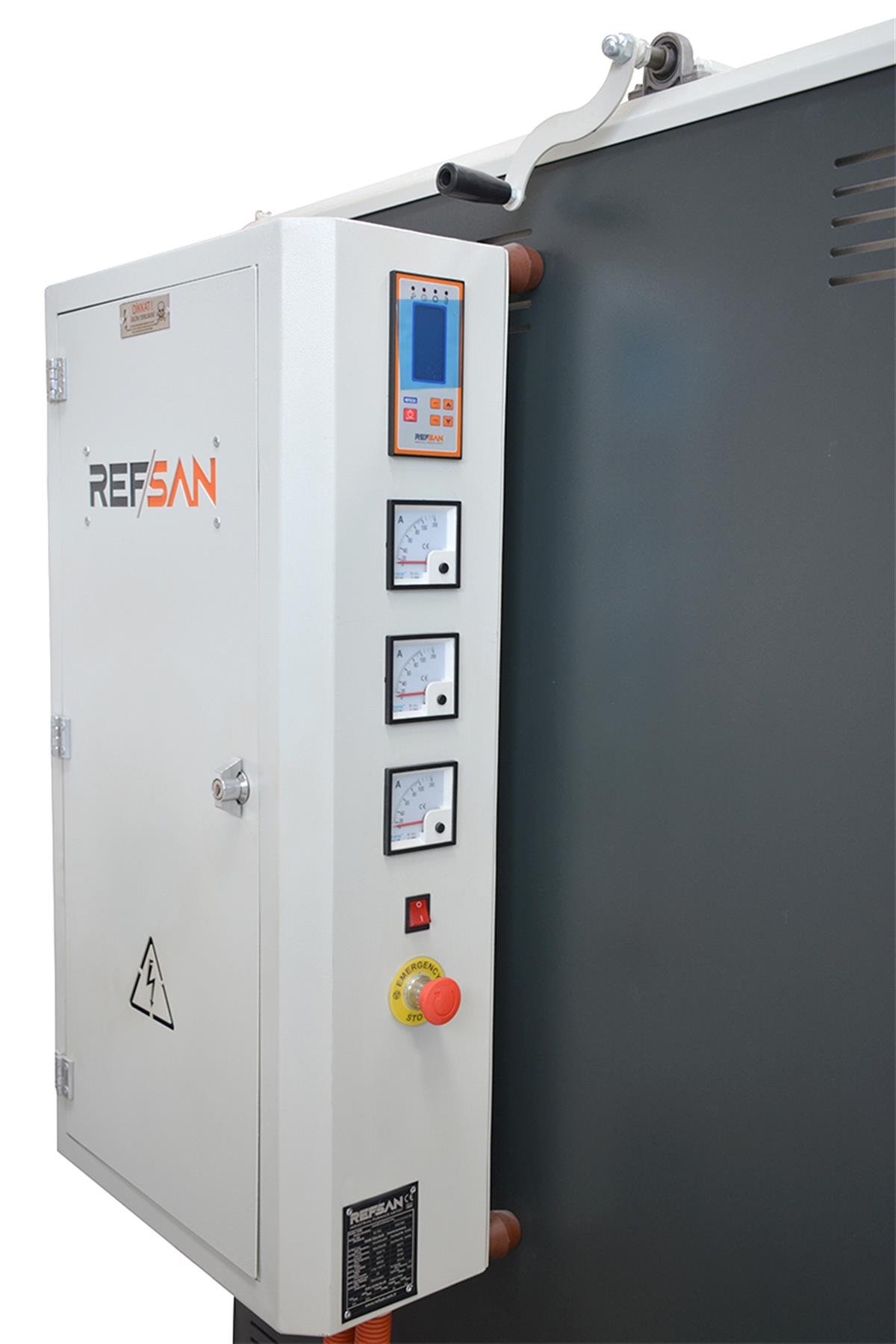

Digital RF800/850/860 Programmer Features:
Automatic start on the desired day and time
Automatic self-activation during power outages
5 Programs + 15 steps in each program
To be able to review the reports of the last 8 moxibustions
Date, Time, Program in Use and Total Number of Steps, Current Step in Operation, Set Value of the Set Step, Time Set to that set value, Start / Stop Status, Current Temperature and Remaining Time until the end of the Program are displayed on the screen.



Note
The place where the oven will be placed and the width required for installation must be set by you in advance.

Cables, fuses etc. that will be required for the electrical line are notified by our company, the place where the oven will be installed and the electrical connections must be prepared up to the oven and the panel before the oven delivery.


Transportation and Installation

Transportation will be done by the buyer. If it is desired to be provided by Refsan, it will be discussed mutually.

If the transportation will be organized by the customer, insurance is recommended.

The crane or forklift that will be needed during the unloading process will be provided by the buyer.

If the unloading will be done with Refsan vehicle, there is no need for a forklift or crane to lower it down since there is a lift behind it.


Model
RSH2.000 RS2.000
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
2000 LT. (2 m3)
Maximum Temperature
1200°C 1320°C
Outer Dimensions (WxDxH)
161x268x190cm
Inner Dimensions (WxDxH)
110x170x110cm
Weight
1700 Kg.
Phase
Three-phase
Power
400V
Connected Load kW
105kW (Kullanıldığı Sektöre Göre Değişiklik Gösterebilir) 90kW (Kullanıldığı Sektöre Göre Değişiklik Gösterebilir)
Thermocouple
K TYPE ( 0 - 1200 °C) S TYPE ( 0 - 1300 °C)
Themocouple Count
3 (Floor+Middle+Top)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Galvanized
Contact Type
SSR
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Door Lock
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Control Unit ( Optional)
Bentrup TC705 ( Germany)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
40*50 cm.
