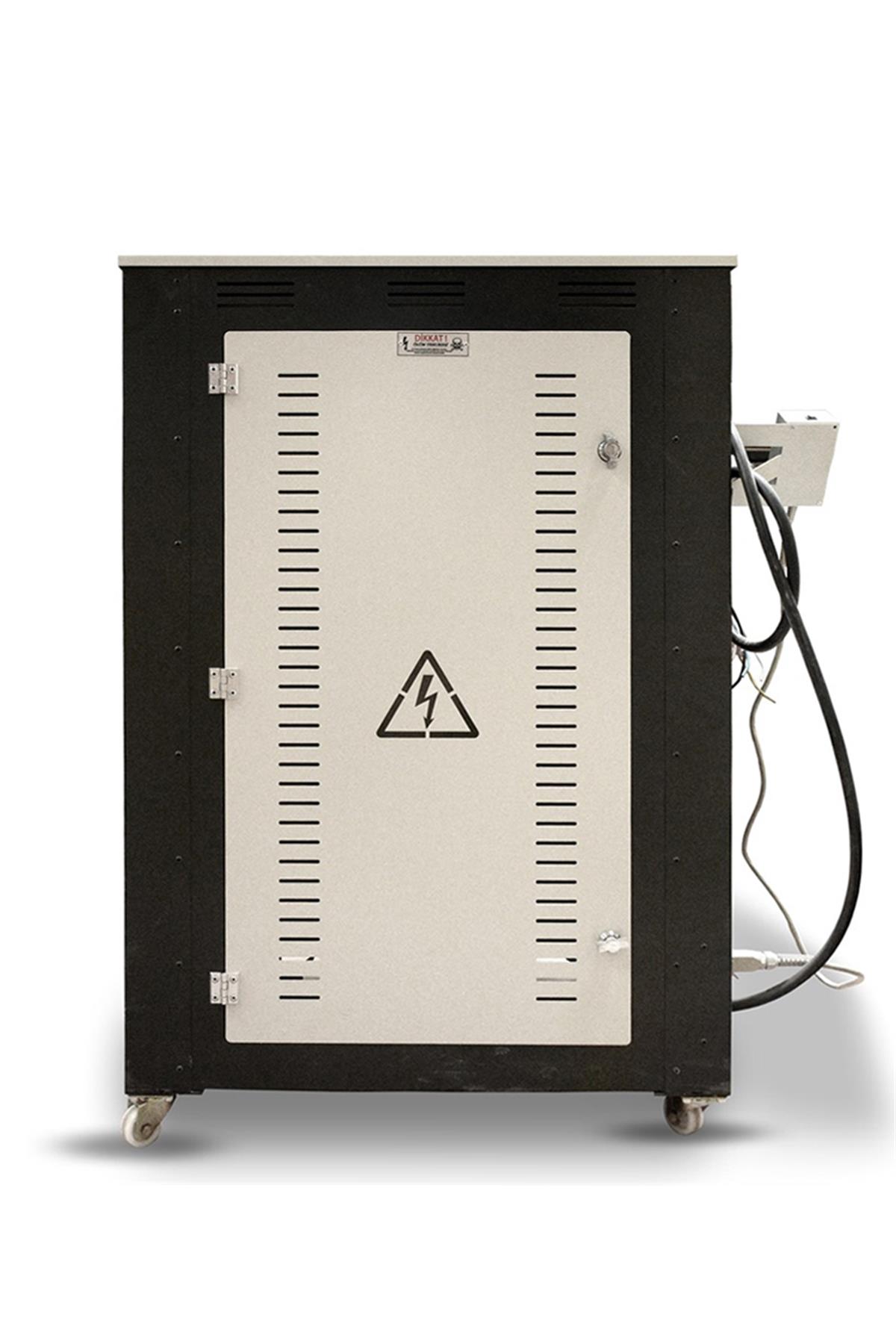

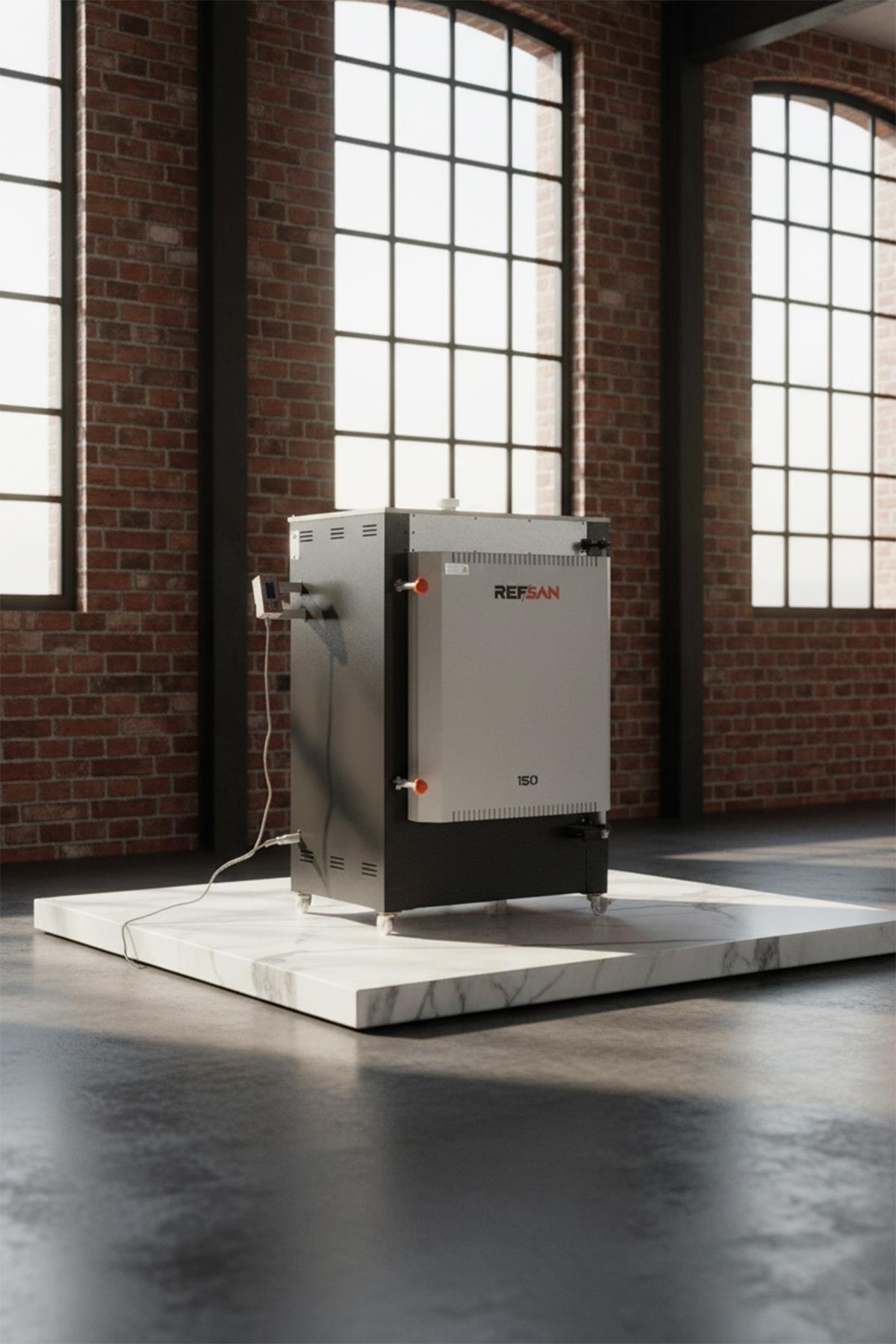

RS150 TILE KILN
RS150 TILE KILN
RS150 TILE KILN
RS150 TILE KILN
RS150 TILE KILN
RS150 TILE KILN
RS150 TILE KILN
RS150 TILE KILN

TILE KILNS



Tile is a special ceramic type peculiar to Turkey, it has a soft, high quartz ingredient body and glazed with low-fire soft glaze. Ottomans exhibited unique tile samples in many mosques in the 16th century. Turkish ceramic artists still continue this traditional manufacturing type for tile. Refsan has been producing special tile kilns for these producers.



All of our kilns have;



Kanthal A1 electric resistance wires

European Alumina insulation boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate

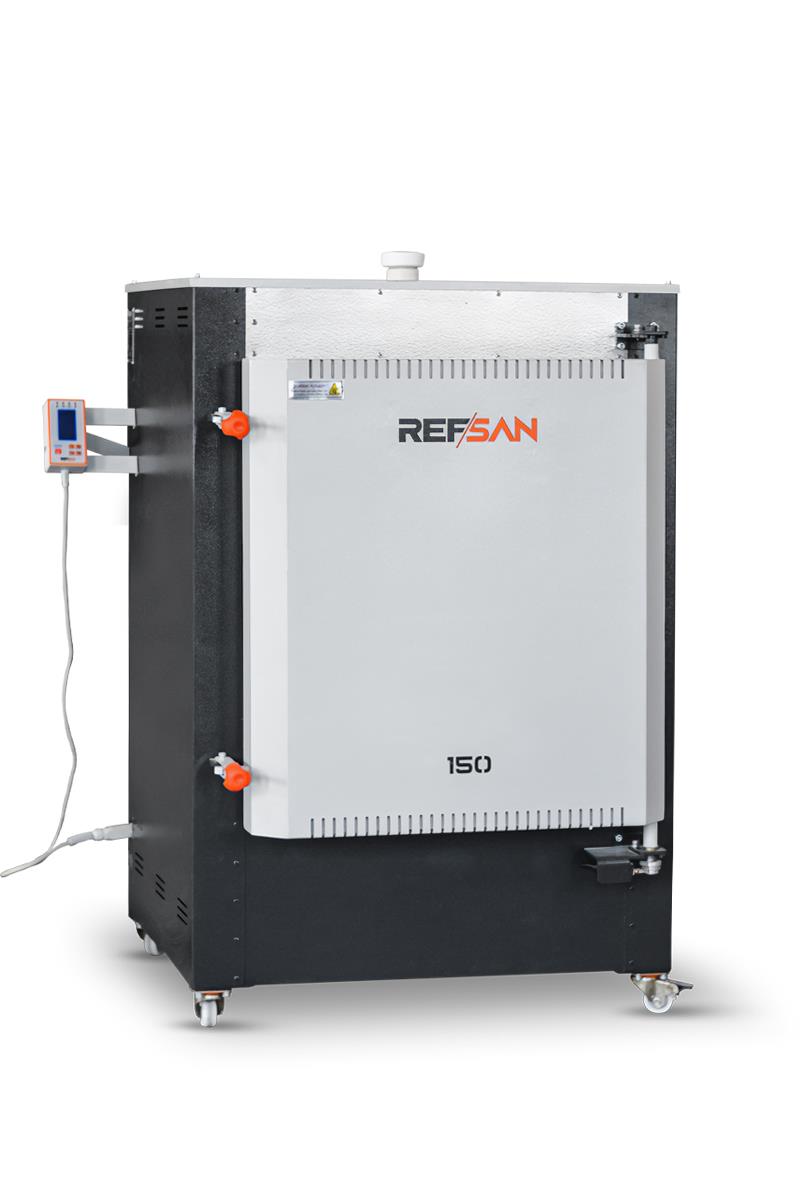

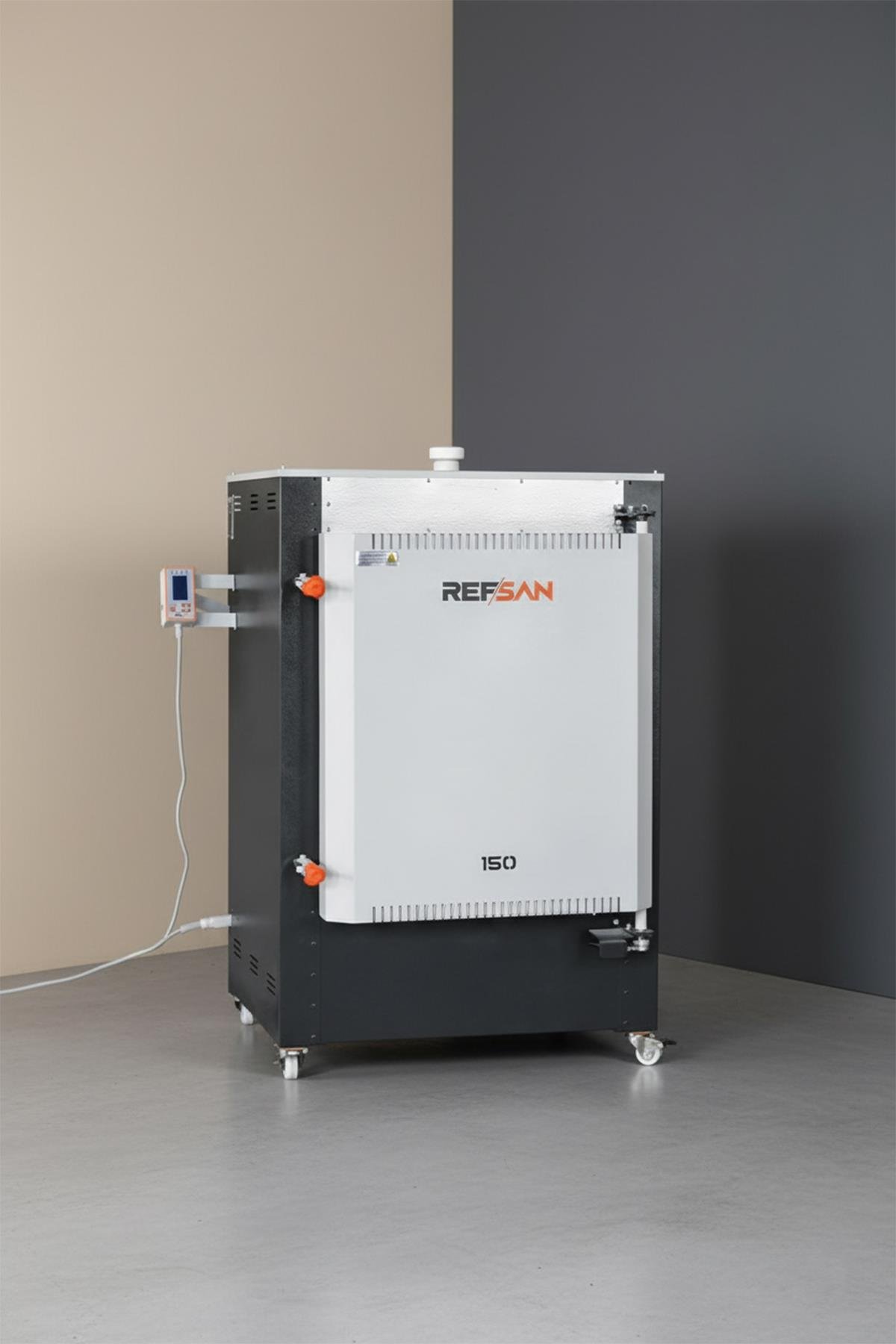

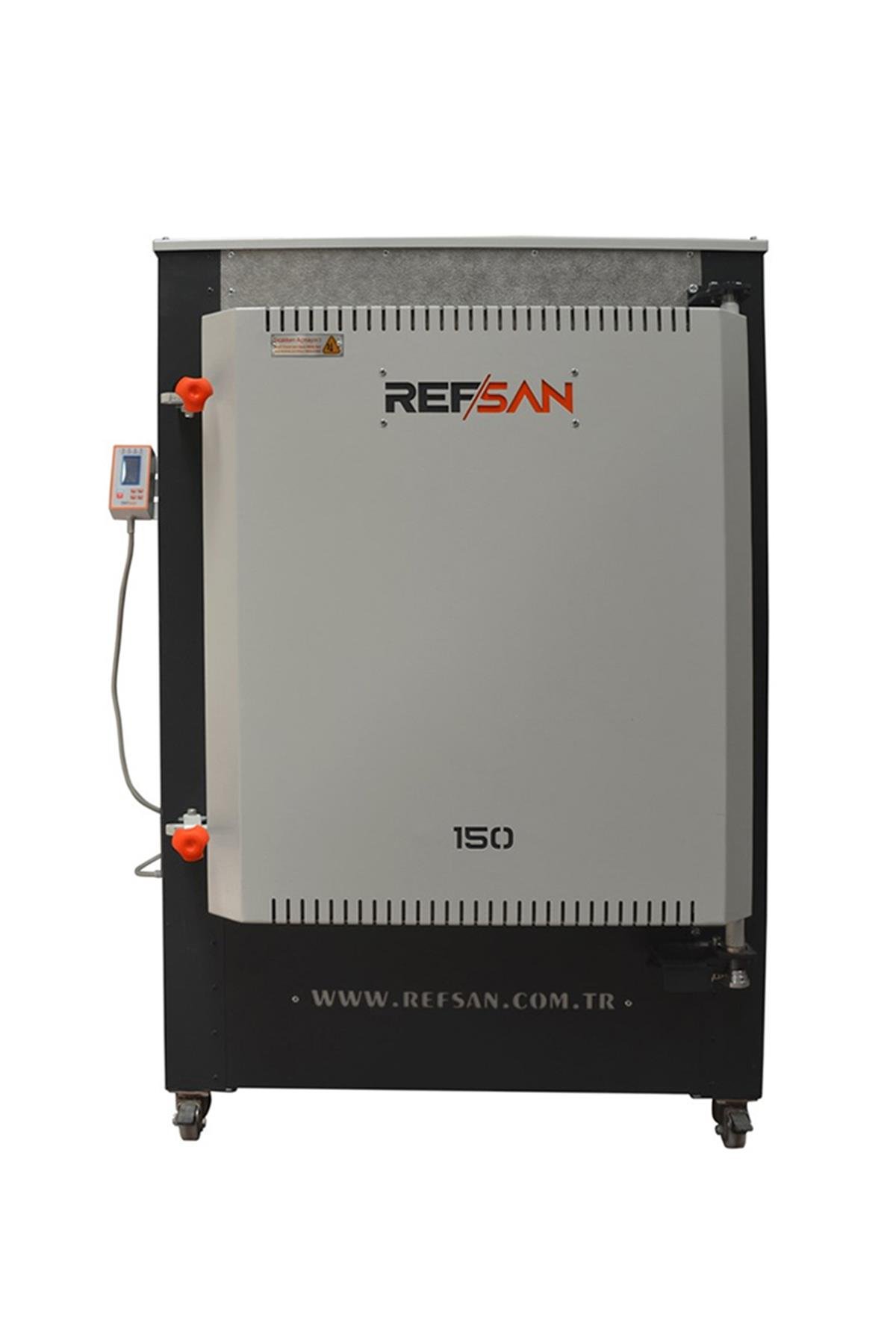

Model
RS150
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
150 LT.
Maximum Temperature
1100°C
Outer Dimensions (WxDxH)
88x92x135cm
Inner Dimensions (WxDxH)
50x50x60cm
Weight
350 kg
Phase
Single-phase Three-phase
Power
230V 400V
Cable Thickness - Fuse
Requirements for 230V RS Model; Cable Thickness 3X10 - Fuse (Amps) 1X50 Requirements for 400V RS Model; Cable Thickness 5X4 - Fuse (Amps) 3X25
Connected Load kW
9kW
Thermocouple
K TYPE ( 0 - 1200 °C)

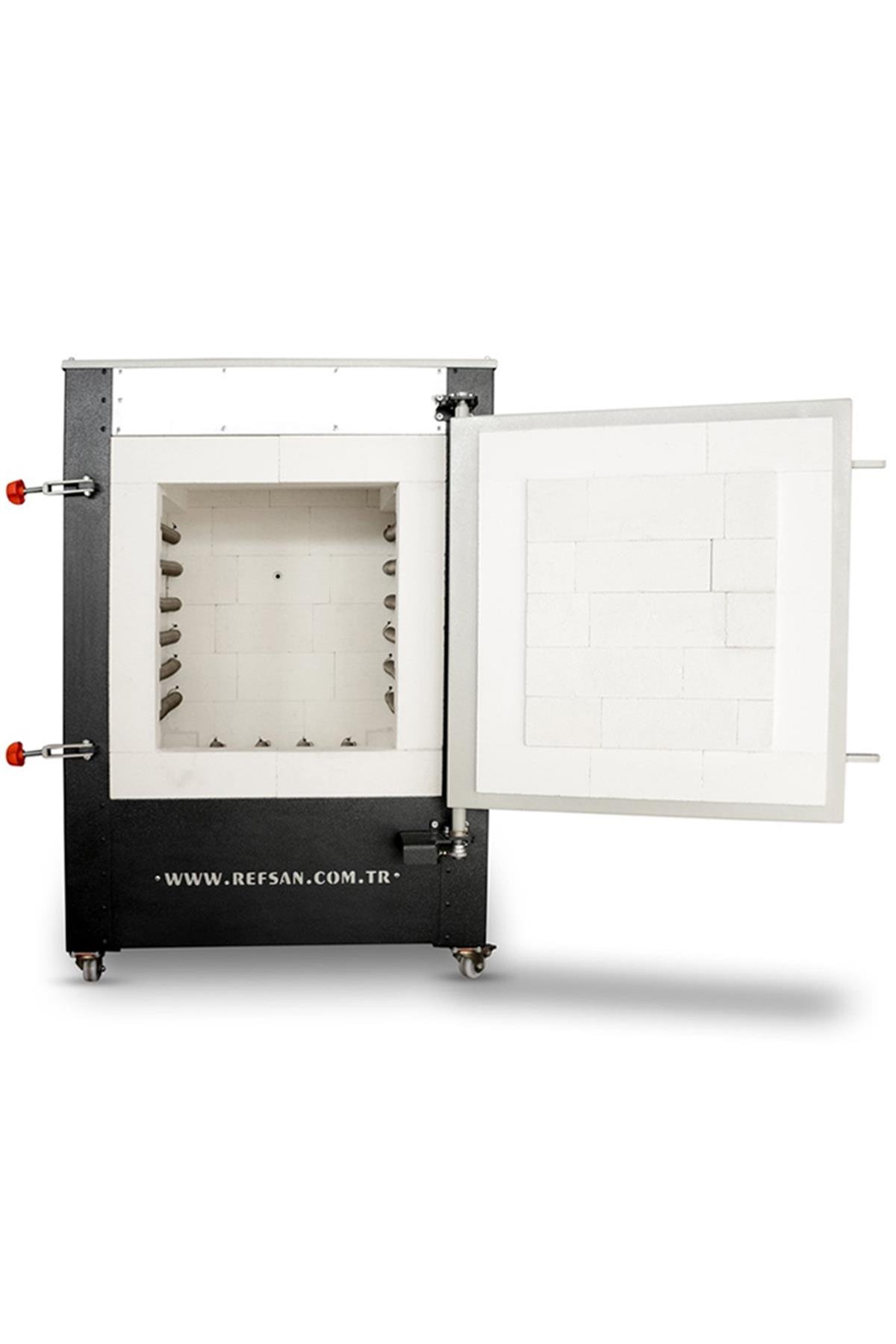

Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C

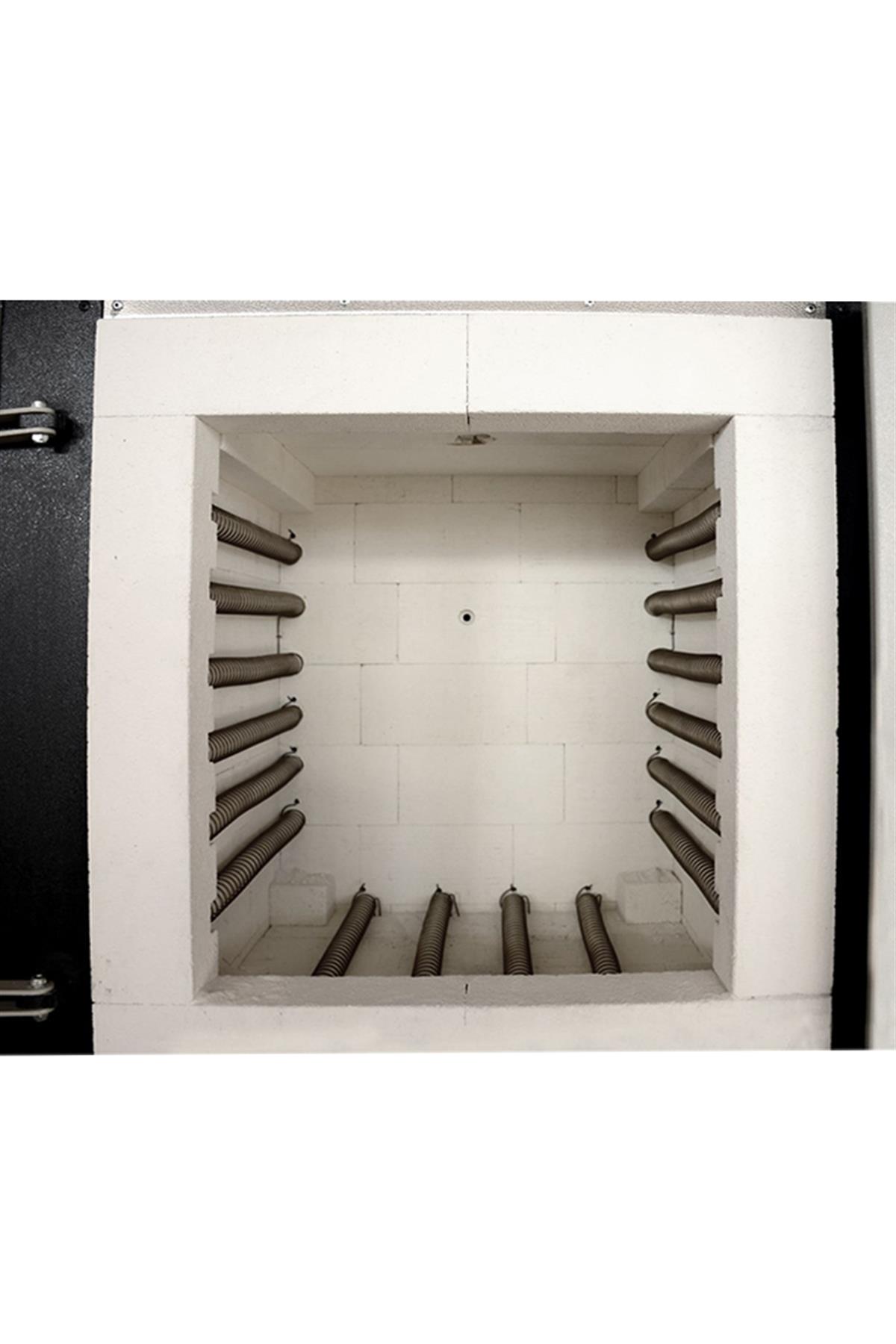

Heating Sides
3 SIDES (LEFT+RIGHT+FLOOR)
Paint of Kiln
Electrostatic Powder Dye

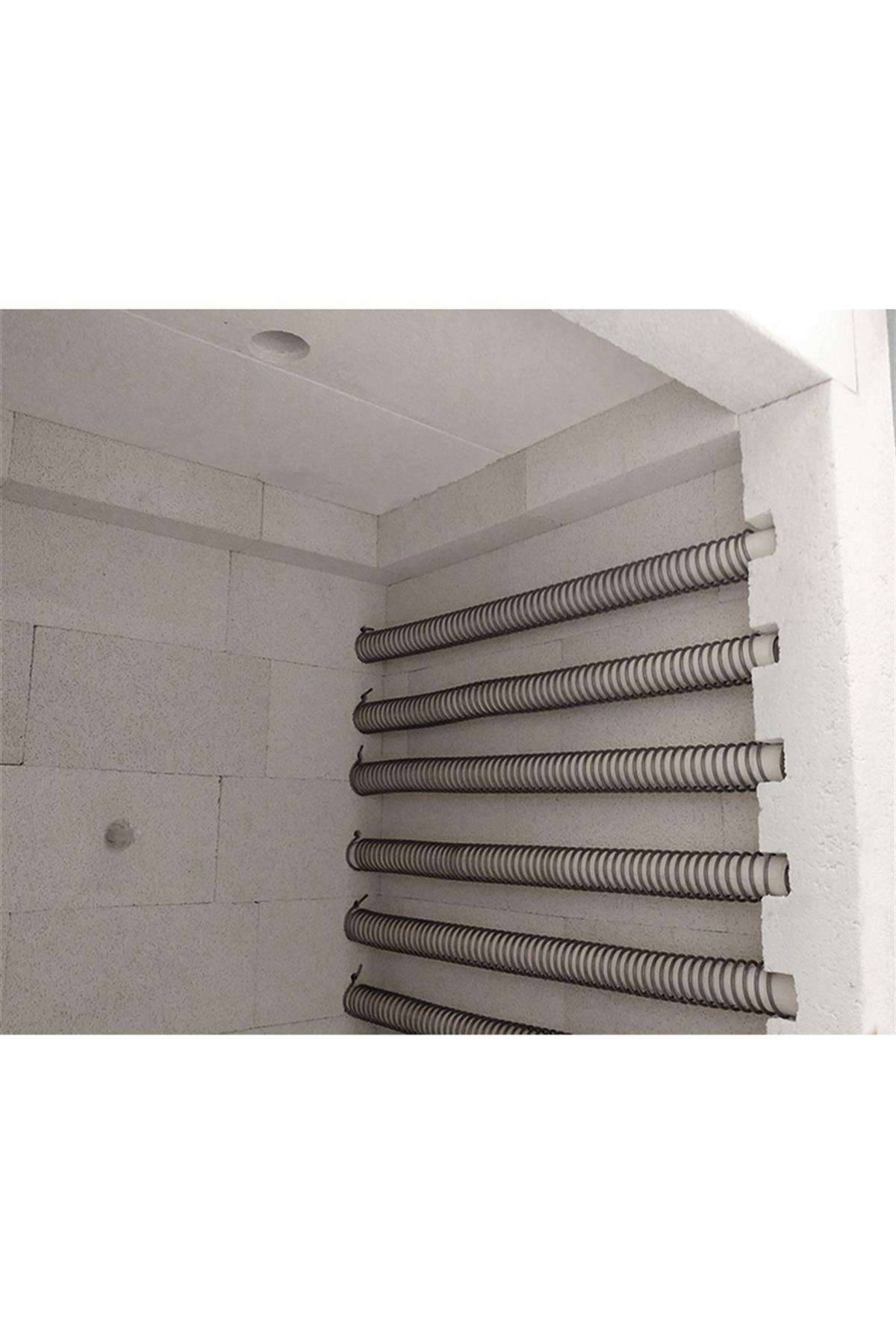

Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Door Lock
AVAILABLE
Ceramic Fiber
N/A
Wheels
AVAILABLE
Protection Switch
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
