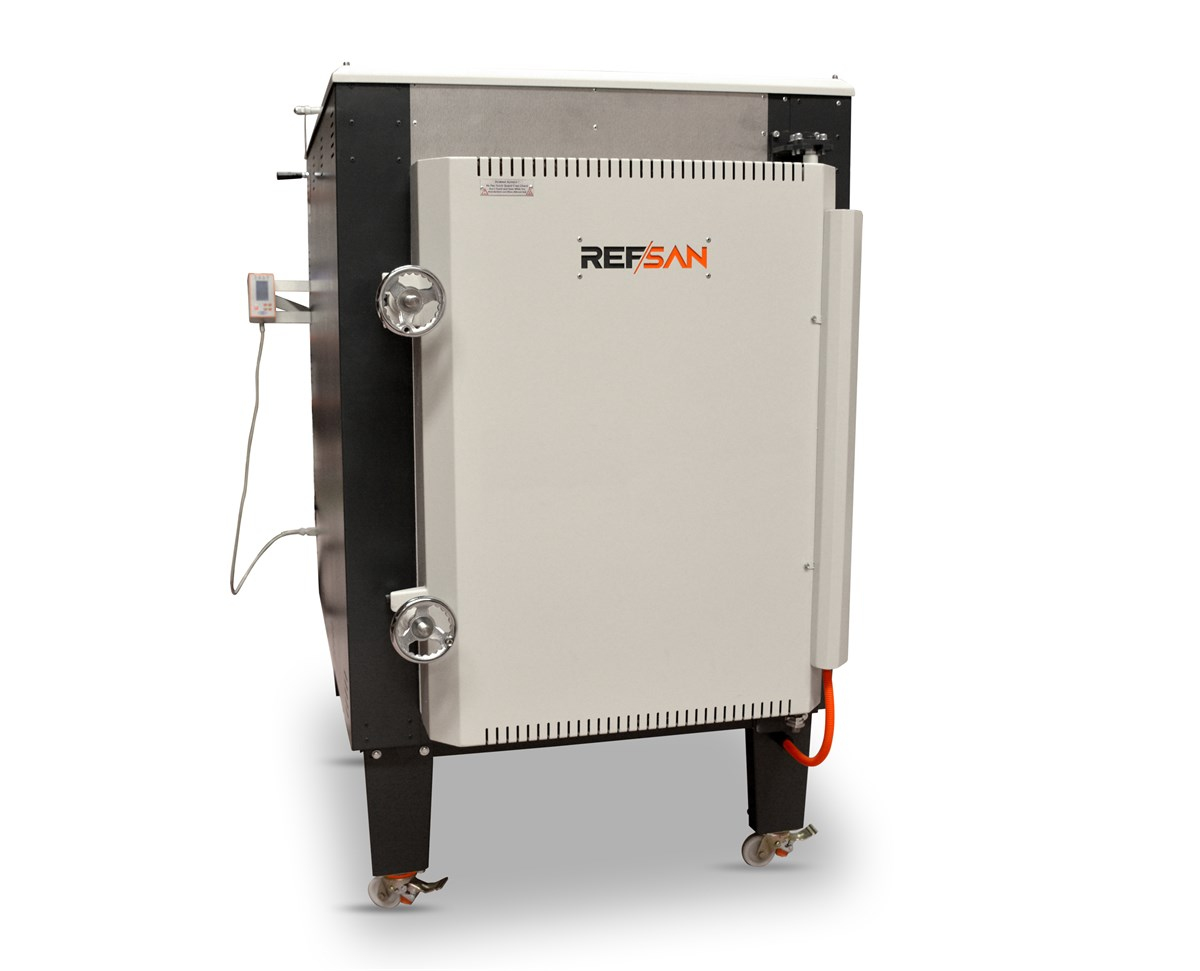

RS1000 Annealing / Thermal Processing Furnaces (R12259)

0.0
Brand : REFSAN
Price : 0,00€
Barkod : 8681910649644



Adet

Artır Azalt

ANNEALING / THERMAL PROCESSING KILNS

In metallurgy and materials science, annealing is a heat treatment that alters the physical and sometimes chemical properties of a material to increase its ductility and reduce its hardness, making it more workable. It involves heating a material above its recrystallization temperature, maintaining a suitable temperature for a suitable amount of time, and then allow slow cooling.

Heat treating (or heat treatment) is a group of industrial, thermal and metalworking processes used to alter the physical, and sometimes chemical, properties of a material. The most common application is metallurgical. Heat treatments are also used in the manufacture of many other materials, such as glass. Heat treatment involves the use of heating or chilling, normally to extreme temperatures, to achieve the desired result such as hardening or softening of a material.

Refsan has been producing annealing and thermal processing (heat treatment) furnaces in every dimension. The kilns produced by Refsan are being designed and set up for all heat treatment necessity and industrial standards.



All of our kilns have;



Kanthal A1 electric resistance wires

Insulation Boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate

Model
RSH1000 RS1000
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
1000 LT. (1 m3)
Maximum Temperature
1200°C 1320°C
Outer Dimensions (WxDxH)
170x180x200cm
Inner Dimensions (WxDxH)
100x90x110cm
Weight
1430 kg
Phase
Three-phase
Power
400V
Cable Thickness - Fuse
Requirements for 400V RSH Model; Cable Thickness 3X25 + 16 + Grounding - Fuse (Amps) 3X100 Requirements for 400V RS Model; Cable Thickness 5X16 - Fuse (Amps) 3X80
Connected Load kW
57kW 50kW
Thermocouple
S TYPE ( 0 - 1300 °C) K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Sides
5 SIDES ( RIGHT+LEFT+FLOOR+BACK+DOOR)
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Structure of Body
Galvanized
Paint of Kiln
Electrostatic Powder Dye
Wheels
AVAILABLE
Door Lock
AVAILABLE
Ceramic Fiber
N/A
Protection Switch
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
