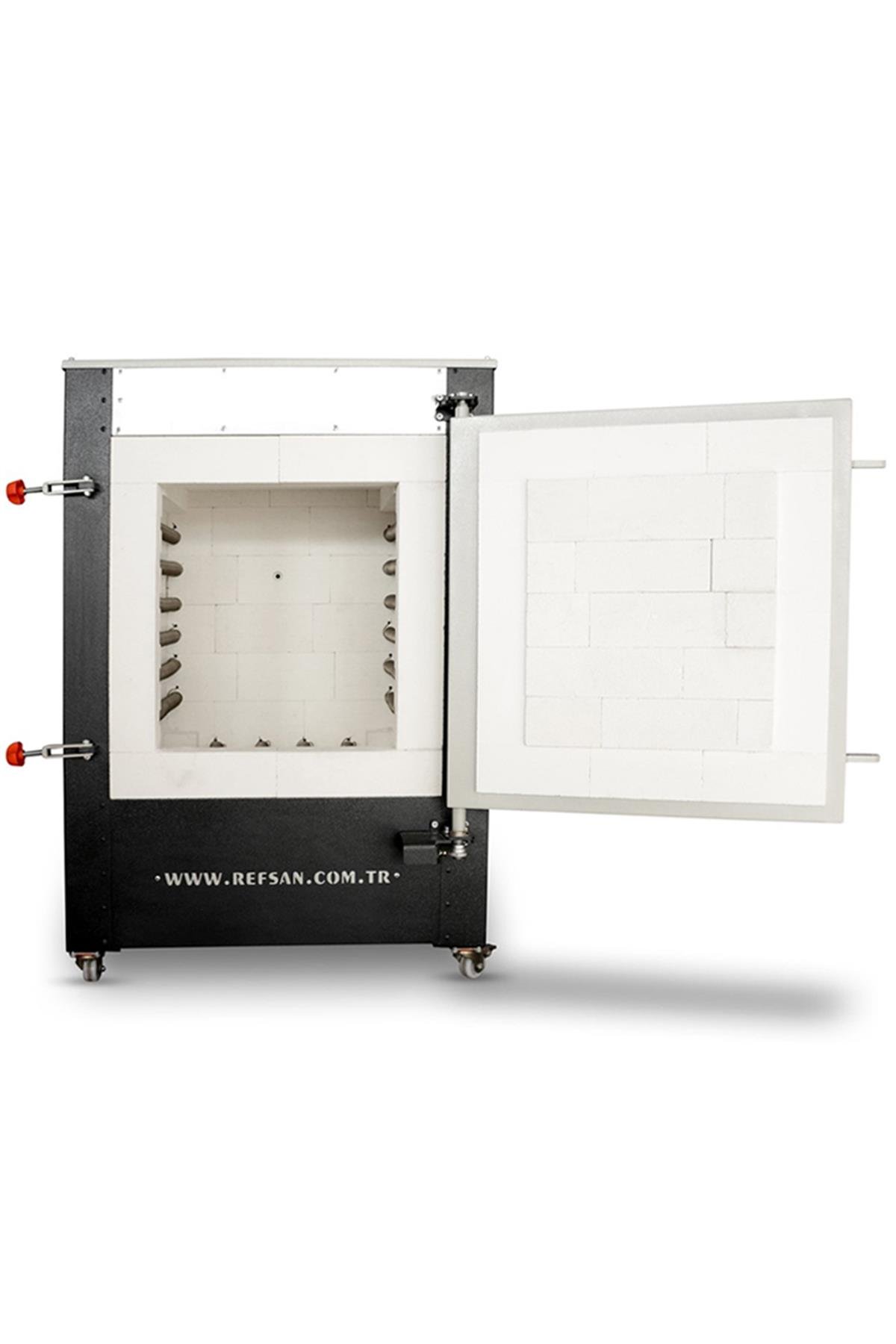

RS100 / RSH100 PORCELAIN KILN
RS100 / RSH100 PORCELAIN KILN
RS100 / RSH100 PORCELAIN KILN
RS100 / RSH100 PORCELAIN KILN
RS100 / RSH100 PORCELAIN KILN
RS100 / RSH100 PORCELAIN KILN
RS100 / RSH100 PORCELAIN KILN
RS100 / RSH100 PORCELAIN KILN
RS100 / RSH100 PORCELAIN KILN
RS100 / RSH100 PORCELAIN KILN

PORCELAIN KILNS

Porcelain is a ceramic material made by heating materials, generally including kaolin, in a kiln to temperatures between 1,200 and 1,400 °C (2,200 and 2,600 °F). The toughness, strength, and translucence of porcelain, relative to other types of pottery, arises mainly from vitrification and the formation of the mineral mullite within the body at these high temperatures. Though definitions vary, porcelain can be divided into three main categories: hard-paste, soft-paste and bone china. The category that an object belongs to depends on the composition of the paste used to make the body of the porcelain object and the firing conditions...

Refsan has been producing porcelain kilns for many years. Porcelain kilns produced by Refsan are durable for high temperatures, and they have excellent thermal uniformity.



All of our kilns have;

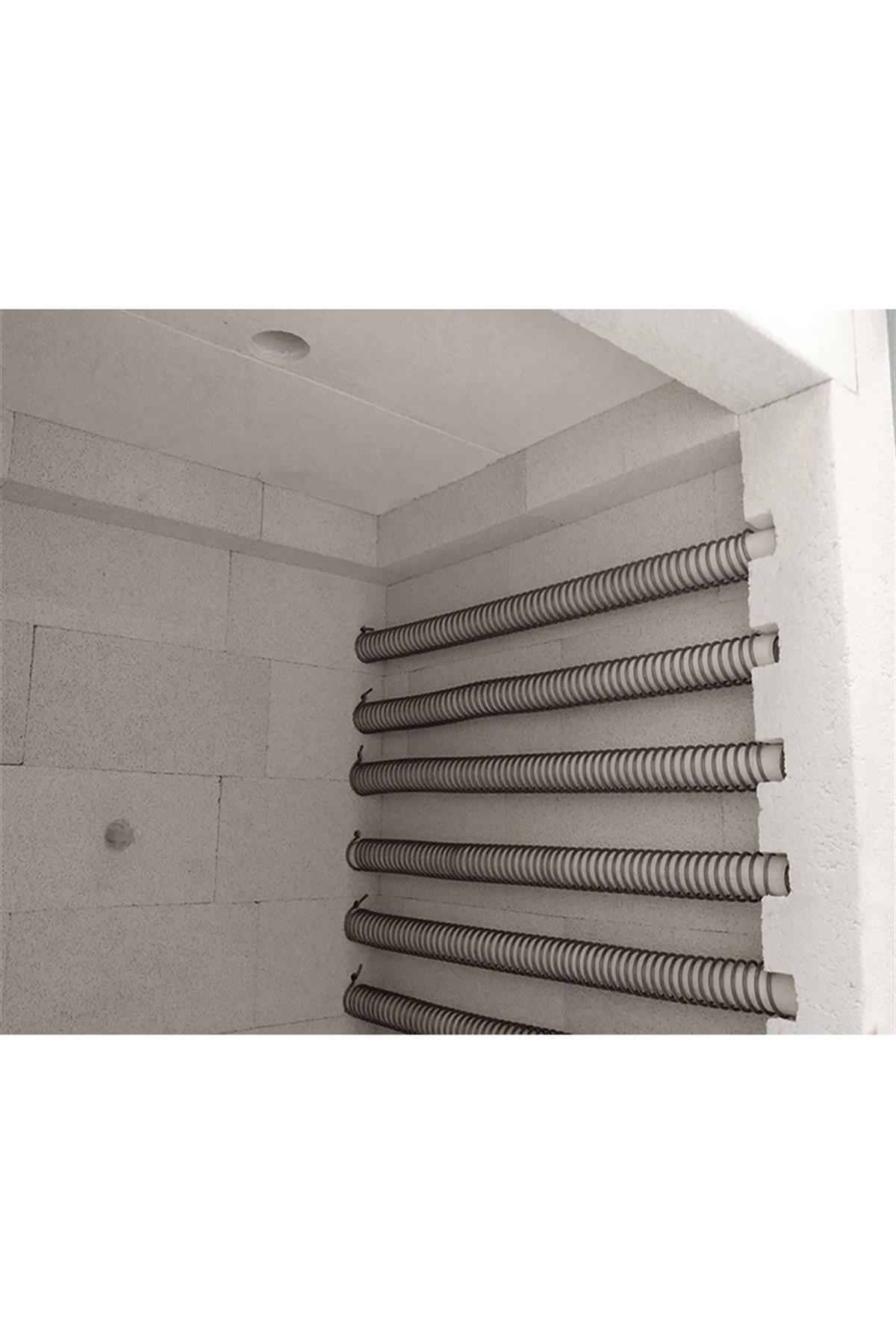

Kanthal A1 electric resistance wires

Insulation Boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate



Model
RSH100
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
100 LT.
Maximum Temperature
1320°C
Outer Dimensions (WxDxH)
88x83x125cm
Inner Dimensions (WxDxH)
45x45x50cm
Weight
285 kg
Phase
Single-phase Three-phase
Power
230V 400V
Cable Thickness - Fuse
Requirements for 400V RSH Model; Cable Thickness 5X6 - Fuse (Amps) 3X32 Requirements for 230V RS Model; Cable Thickness 3X10 - Fuse (Amps) 1X63
Connected Load kW
11kW
Thermocouple
S TYPE ( 0 - 1300 °C)
Themocouple Count
1 (Middle-Back)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C

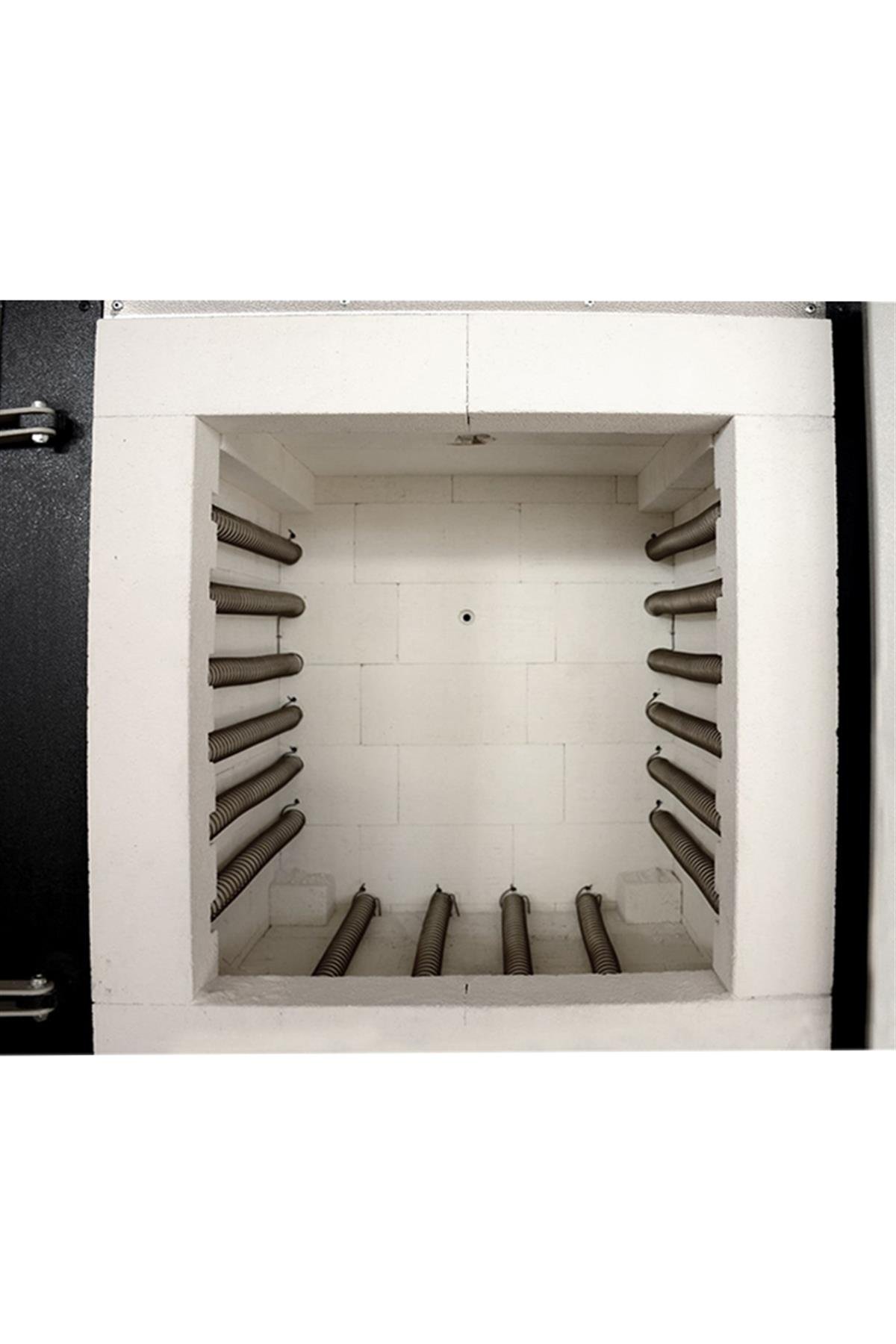

Heating Sides
3 SIDES (LEFT+RIGHT+FLOOR)
Structure of Body
Galvanized
Paint of Kiln
Electrostatic Powder Dye
Contact Type
SSR
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Ceramic Fiber
N/A
Wheels
AVAILABLE
Protection Switch
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop
Kiln Shelves (Optional)
40*40 cm.
