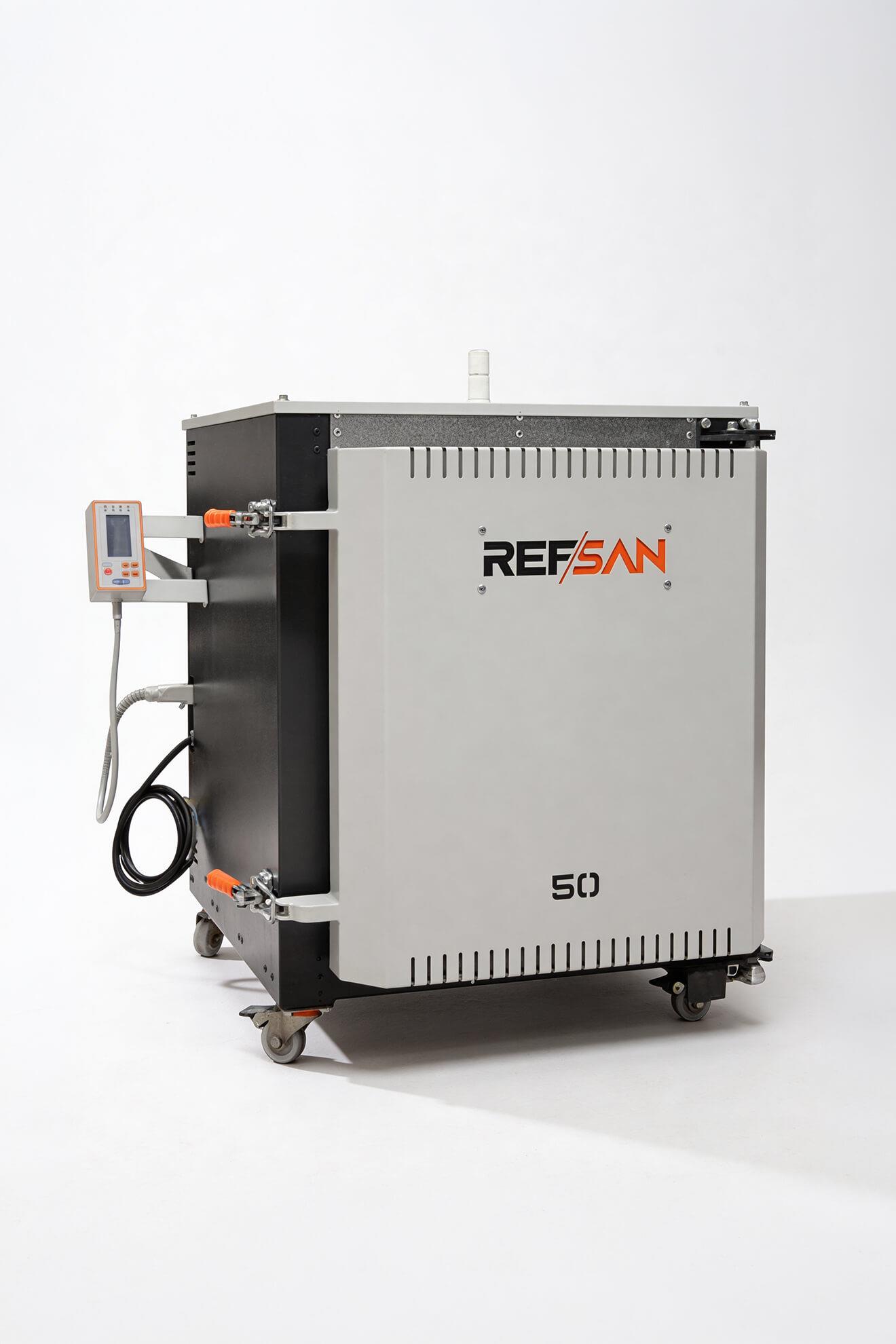

Refsan RD50/RDH50 Trial Furnace


Product Features
As standard, it is of the bench top model type.
Bottom leg part can be supplied as additional equipment.
Heating elements are installed on both sides and positioned on the Ceramic Tube.
As a result of adaptive wire calculations, long life of the heating elements is ensured.
Silent operation of the heating system is provided by solidstaterelais type relays.
As a result of the fast rhythm of switching operations, precise heat flow is ensured.
Double coated cover with low external temperatures.
Lid contact switch with forced disconnection.
Insulation of the furnace chamber with lightweight firebricks and special backside isolation for low electricity consumption
6 surfaces inside the furnace are completely alumina bricks, no fibers containing carcinogenic materials are used inside the furnace.
Body sheets are made of precious and shaped steel sheet and painted with electrostatic paint.
Infinitely adjustable air supply and discharge for short cooling times.
Air discharge place on the furnace




Digital RF800/850/860 Programmer Features
Automatic start on the desired day and time
Automatic self-activation during power outages
5 Programs + 15 steps in each program
To be able to review the reports of the last 8 moxibustions
On the screen: Date, Time, Program in Use and Total Number of Steps, Current Step in Operation, Set Value of the Set Step, Time Set to that Set Value, Start / Stop Status, Current Temperature and Remaining Time until the end of the Program are displayed on the screen.

Model
RD50
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
50 LT.
Maximum Temperature
900 °C
Outer Dimensions (WxDxH)
70x80x85cm
Inner Dimensions (WxDxH)
35x35x40cm
Weight
165 kg
Phase
Single-phase
Power
230V
Cable Thickness - Fuse
Requirements for 230V RS Model; Cable Thickness 3X4 - Fuse (Amps) 1X32
Connected Load kW
6kW
Thermocouple
K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR
Heating Sides
2 SIDES (LEFT+RIGHT)
Paint of Kiln
Electrostatic Powder Dye
Door Lock
AVAILABLE
Wheels
AVAILABLE
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
Kiln Shelves (Optional)
30*30 cm
