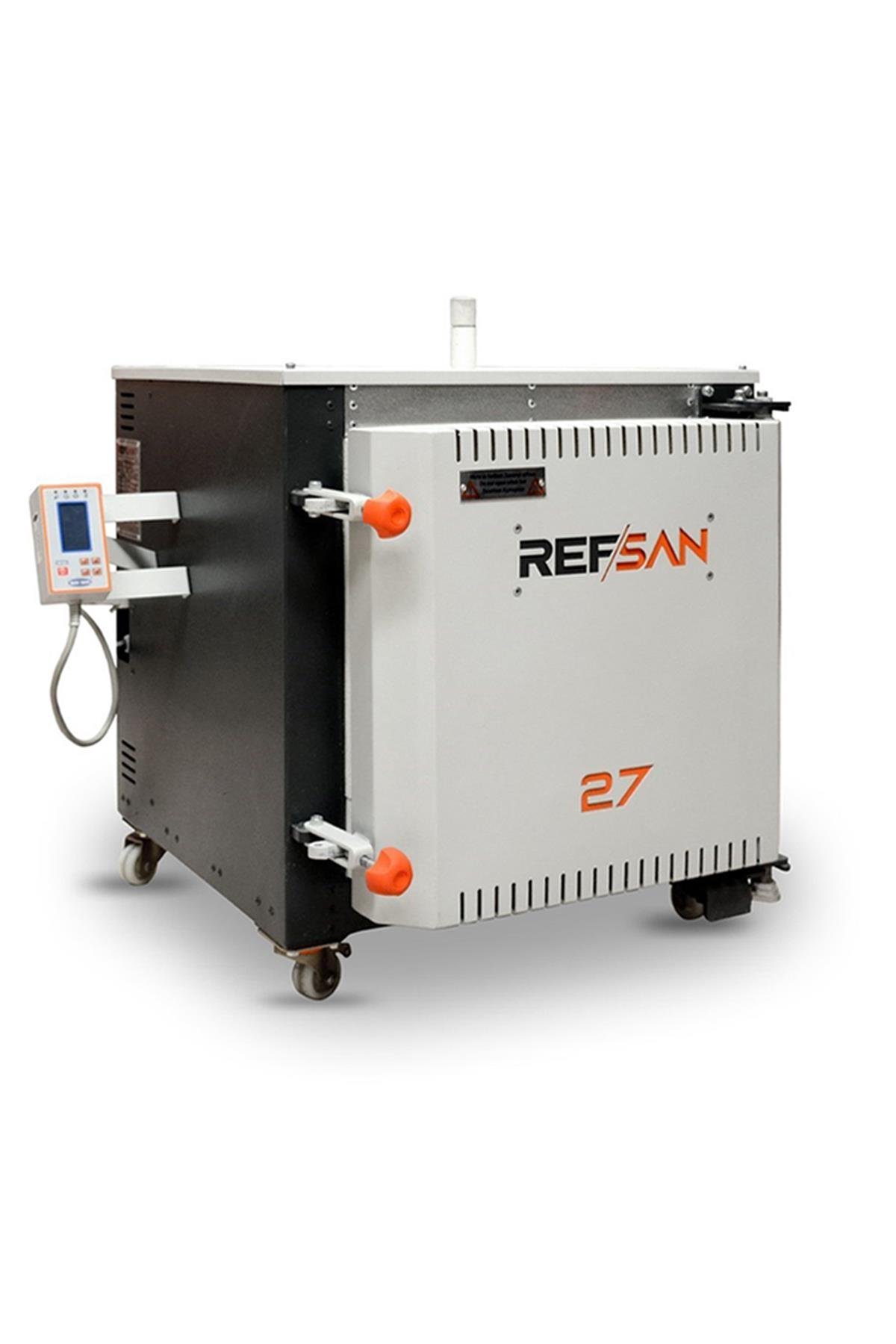

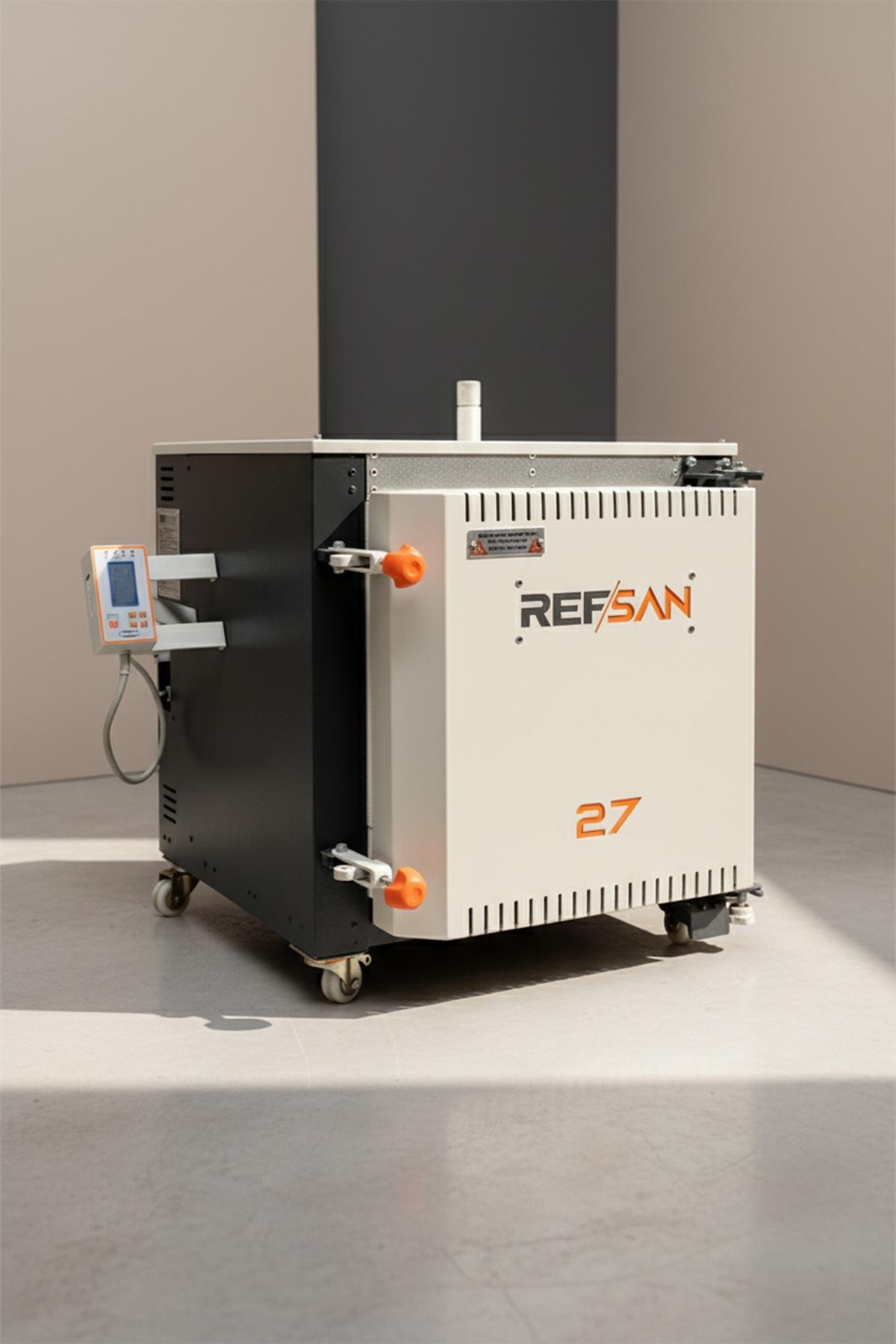

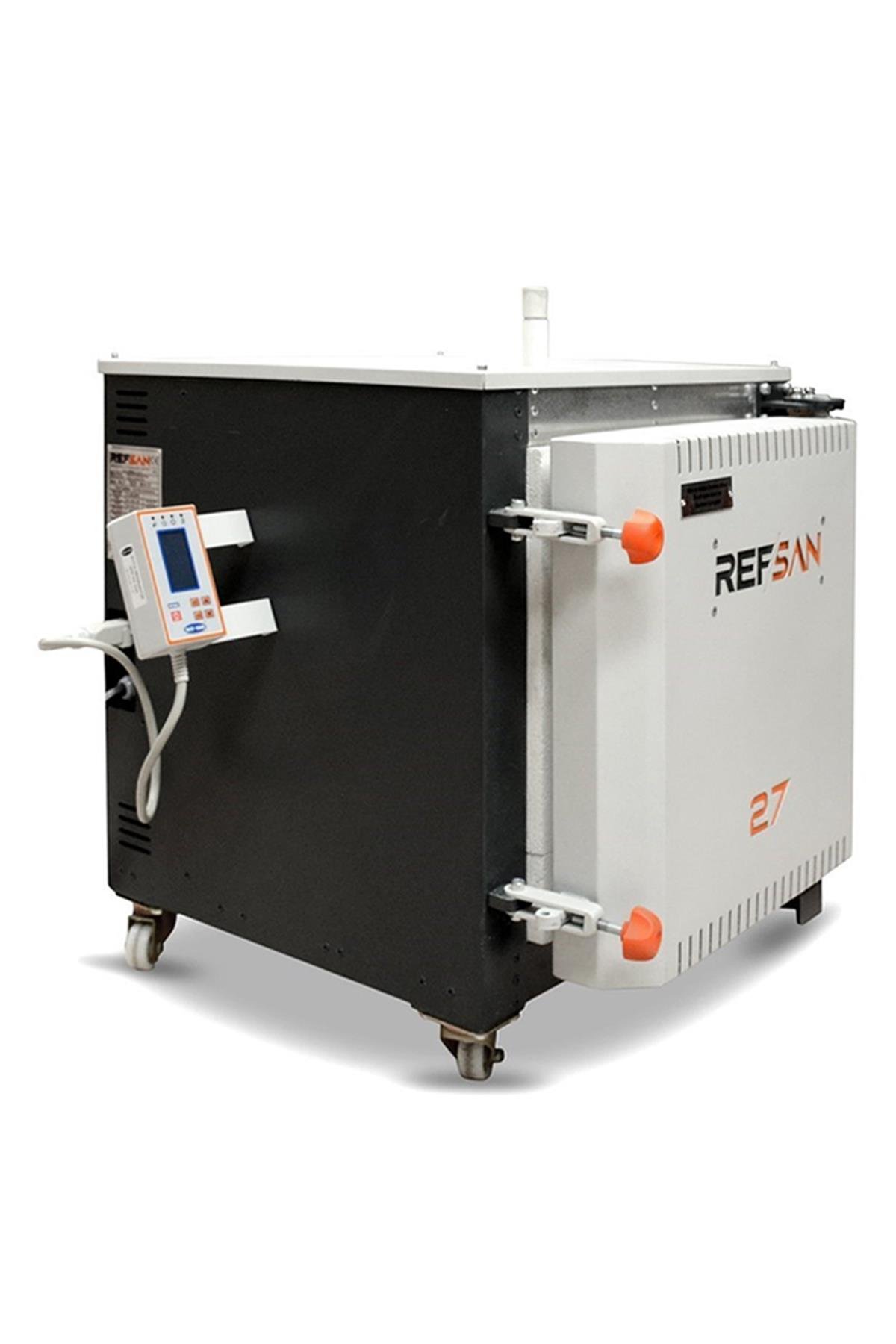

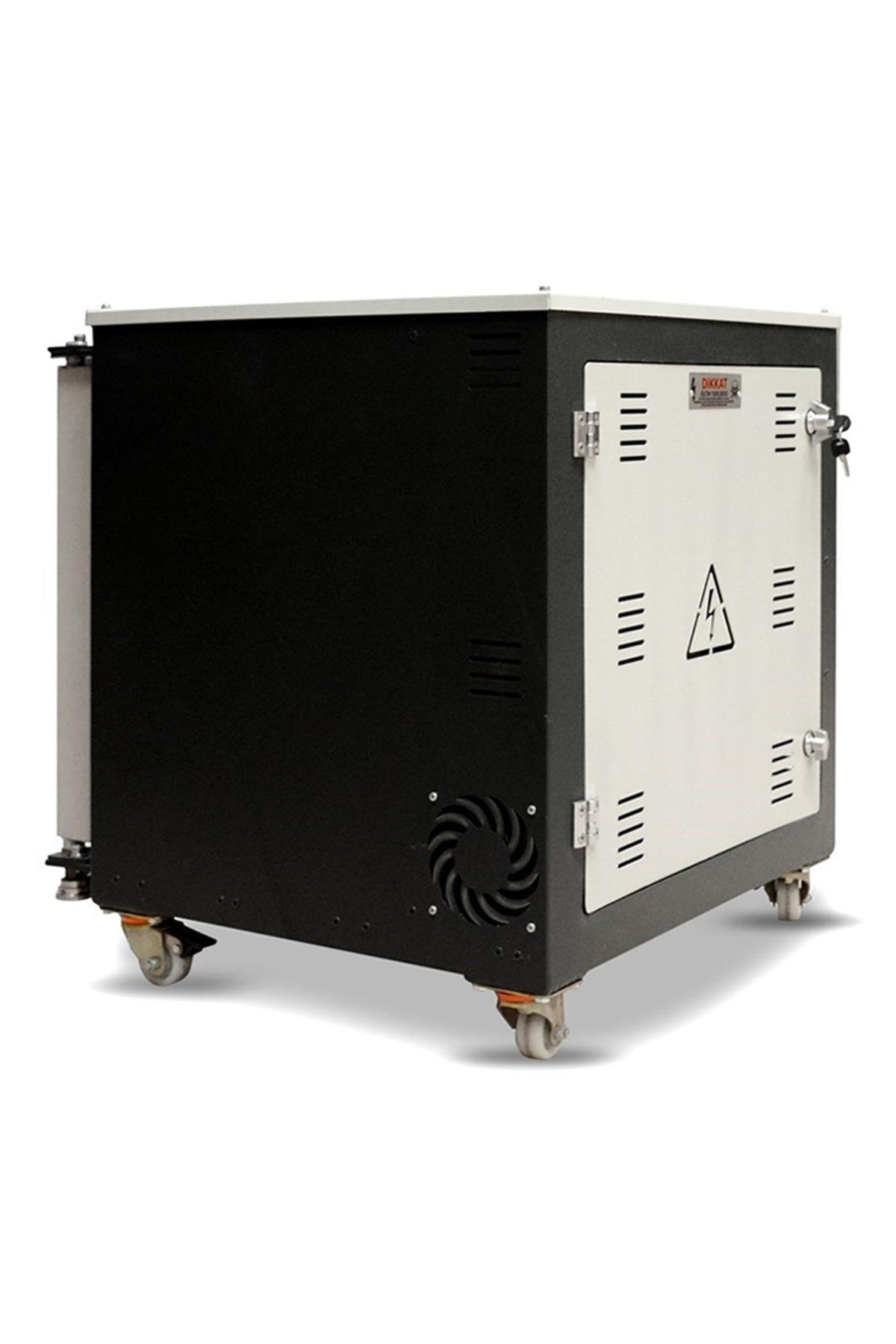

RD27 / RDH27 ASH KILN
RD27 / RDH27 ASH KILN
RD27 / RDH27 ASH KILN
RD27 / RDH27 ASH KILN
RD27 / RDH27 ASH KILN

ASH KILNS

Ash kilns (muffle furnaces) have been using in the laboratory for the analysis of food ash amount of food usually.

Refsan has been producing muffle furnaces for laboratories in food or other industries.


All of our kilns have;



Kanthal A1 electric resistance wires

Insulation Boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate





Model
RD27
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
27 LT.
Maximum Temperature
1200°C 1320°C
Outer Dimensions (WxDxH)
70x65x80cm
Inner Dimensions (WxDxH)
30x30x30cm
Weight
136 kg
Phase
Single-phase
Power
230V
Cable Thickness - Fuse
Requirements for 230V RS Model; Cable Thickness 3X4 - Fuse (Amps) 1X32
Connected Load kW
5,5kW
Thermocouple
S TYPE ( 0 - 1300 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Sides
2 SIDES (LEFT+RIGHT)
Paint of Kiln
Electrostatic Powder Dye
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Door Lock
AVAILABLE
Wheels
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
