Rd27 / Rdh27 Chamber Type Kiln (R22019)

0.0
Brand : REFSAN
Price : 2.695,00€
Barkod : 8681910607507

Adet

Artır Azalt



REFSAN RD27 CHAMBER TYPE FURNACE



PRODUCT FEATURES



-It is a bench top model type as standard.
-The lower leg part can be supplied as additional equipment.
-Heating elements are installed on both sides and are positioned on the Ceramic Pipe.
- As a result of adaptive wire calculations, the long life of the heating elements is ensured.
-Silent operation of the heating system is provided by solidstaterelais type relays.
-As a result of the rapid rhythmization of the switchgear operations, sensitive heat flow is ensured.
-Thermal device TYPE: S Type.
-Double-coated cover with low external temperatures.
-Lid contact switch with forced disconnect.
- Insulation equipment with light fire bricks in the furnace chamber and special rear insulation equipment for low electricity consumption
-Alumina Brick with 6 complete surfaces inside the oven, No fiber containing carcinogenic material is used in the oven.
-Resistance: Kanthal A1 (World's number 1 resistance wire)
-The body sheets are made of precious and shaped steel sheet and painted with electrostatic paint.
-Infinitely adjustable air supply and discharge point for short cooling times.
-CE safety mark "Audited safety.
-Air discharge place is on the oven

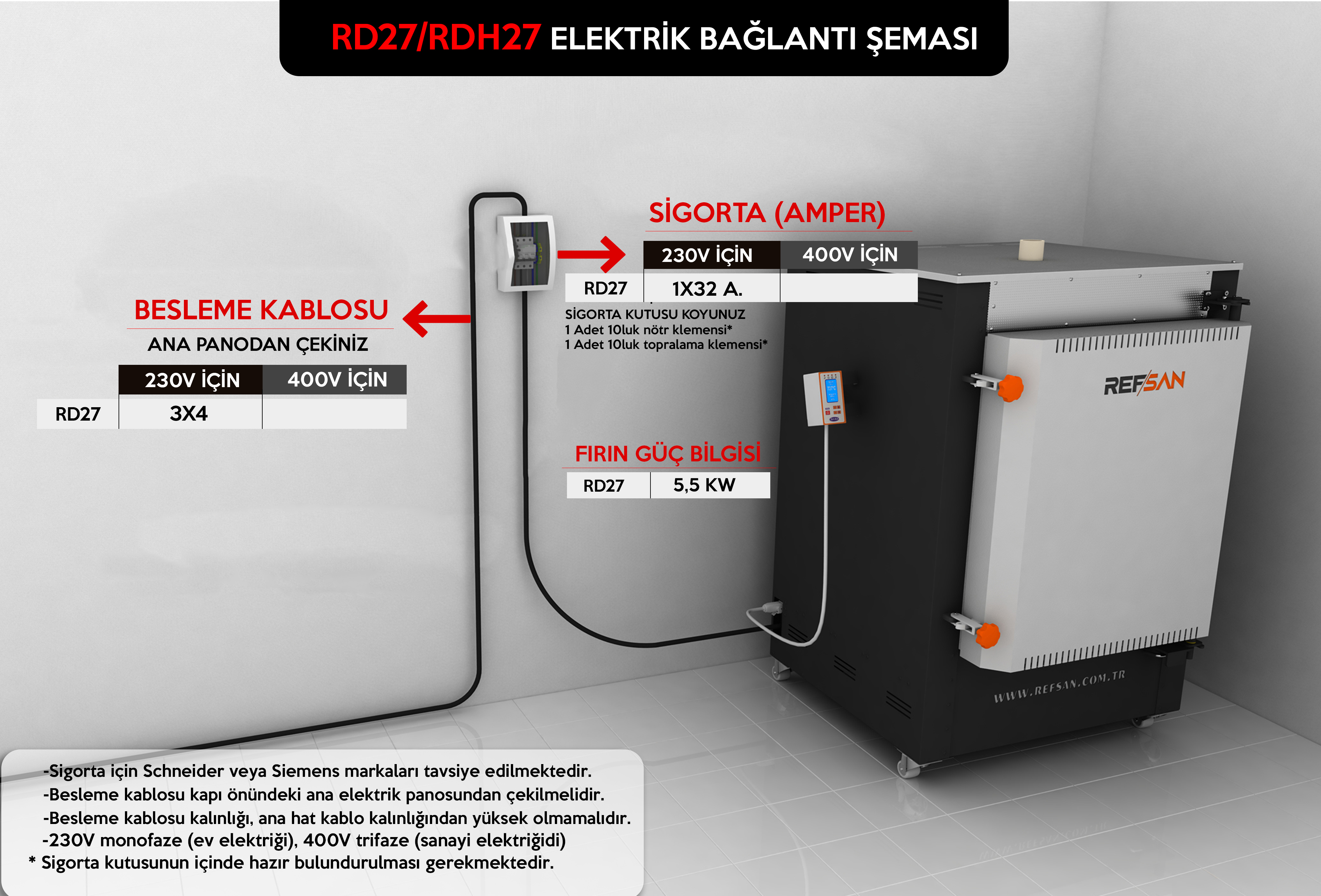

-For 230 V: Cable thickness 3x4 - Fuse Amps 1x32



DIGITAL



RF800 / 850 / 860 Programmer Features
-Automatic start on the desired day and time
-Automatic self-activation in case of power cuts
-5 Programs + 15 steps within each program
-To be able to examine the reports of the last 8 burns
-On the screen: Date, Time, Program Used and Total Number of Steps, Current Step While Working, Set Value of the Adjusted Step, Time Adjusted to that Set Value, Start / Stop Status, Current Temperature and the Remaining Time until the Program ends are displayed on the screen.



Weight: 136 kg
External Dimensions: 70x65x80cm

Model
RD27
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
27 LT.
Maximum Temperature
1200°C 1320°C
Outer Dimensions (WxDxH)
70x65x80cm
Inner Dimensions (WxDxH)
30x30x30cm
Weight
136 kg
Phase
Single-phase
Power
230V
Cable Thickness - Fuse
Requirements for 230V RS Model; Cable Thickness 3X4 - Fuse (Amps) 1X32
Connected Load kW
5,5kW
Thermocouple
K TYPE ( 0 - 1200 °C) S TYPE ( 0 - 1300 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Sides
2 SIDES (LEFT+RIGHT)
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Paint of Kiln
Electrostatic Powder Dye
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Wheels
AVAILABLE
Door Lock
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
ISO9001 Certificate
AVAILABLE
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
