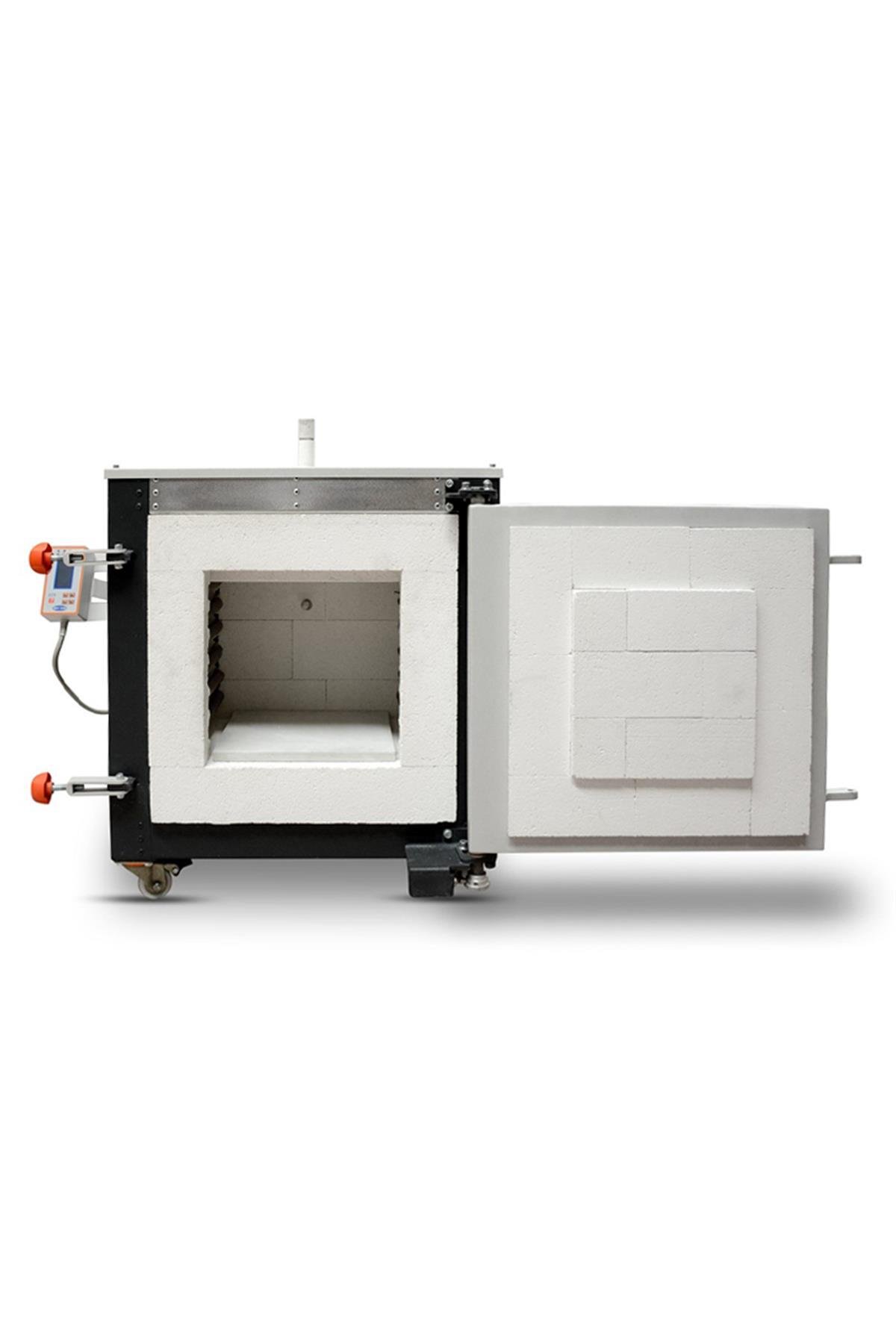

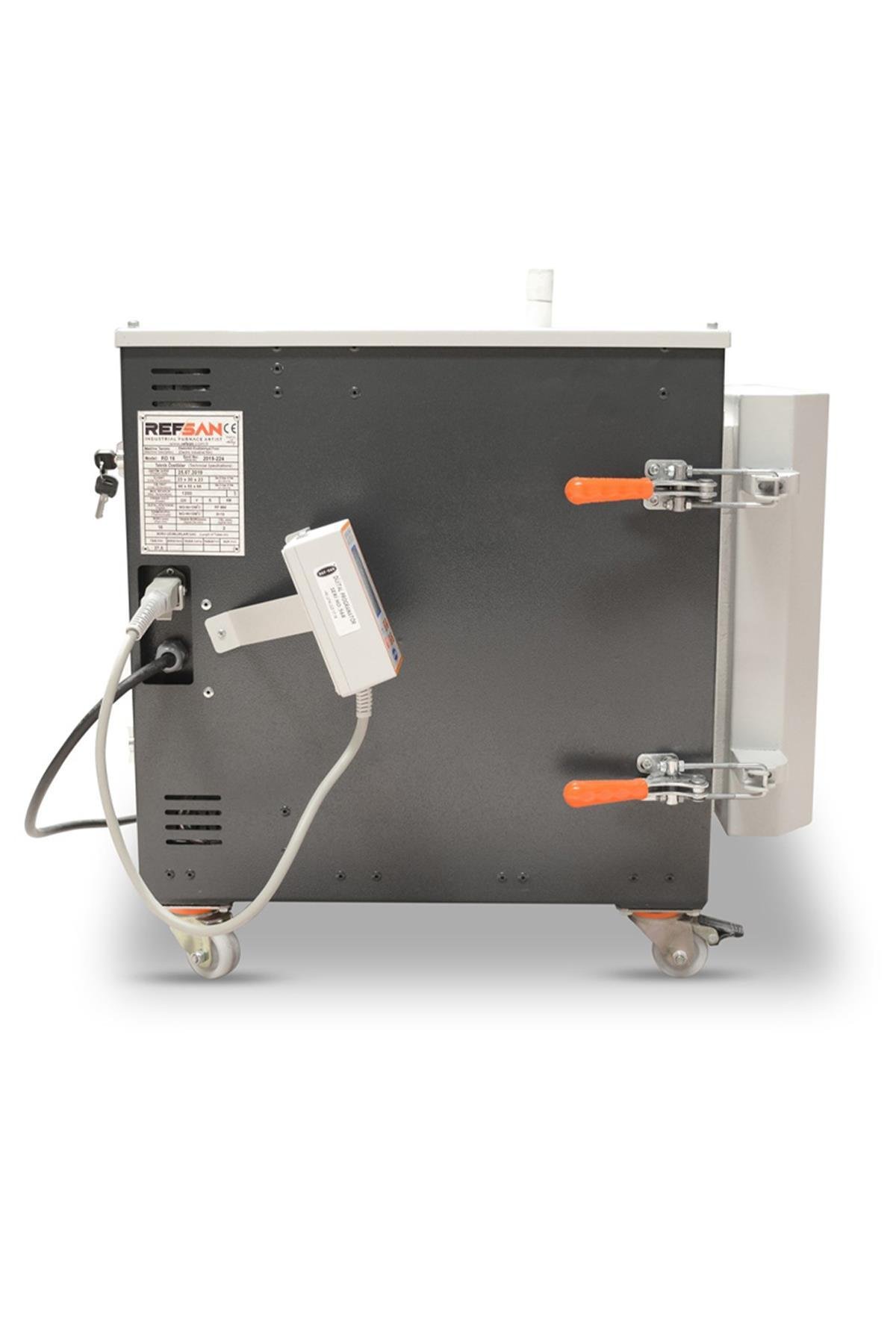

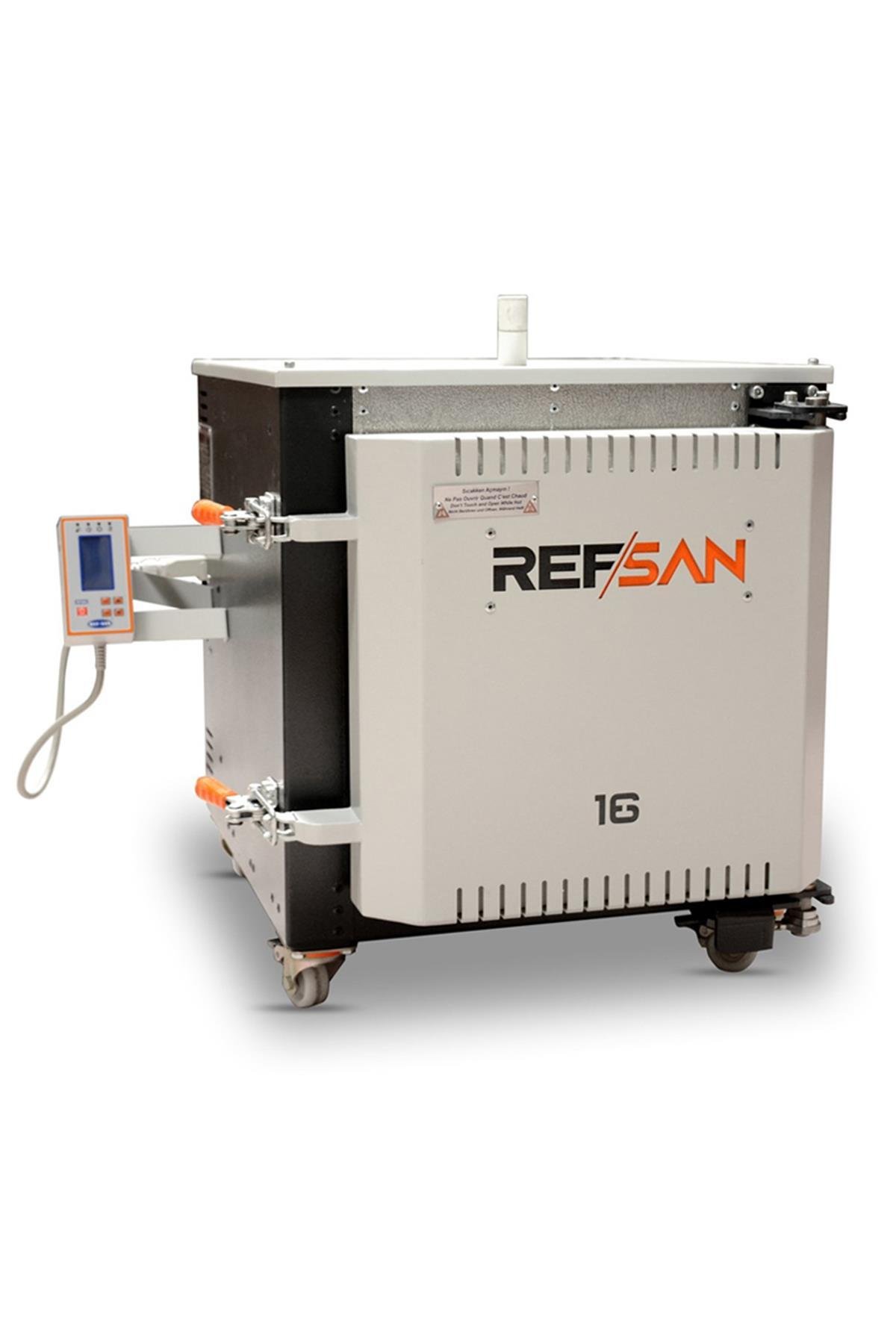

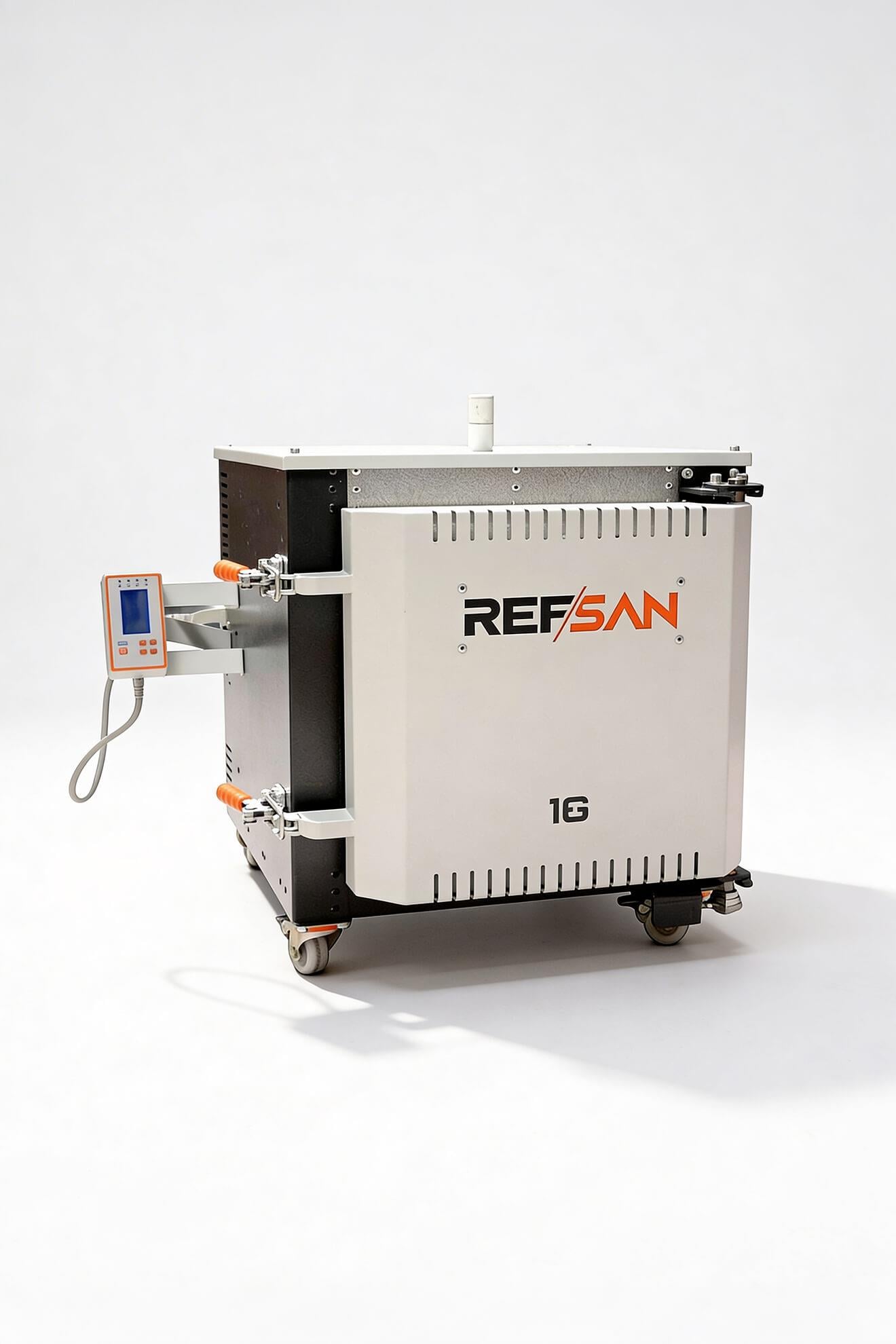

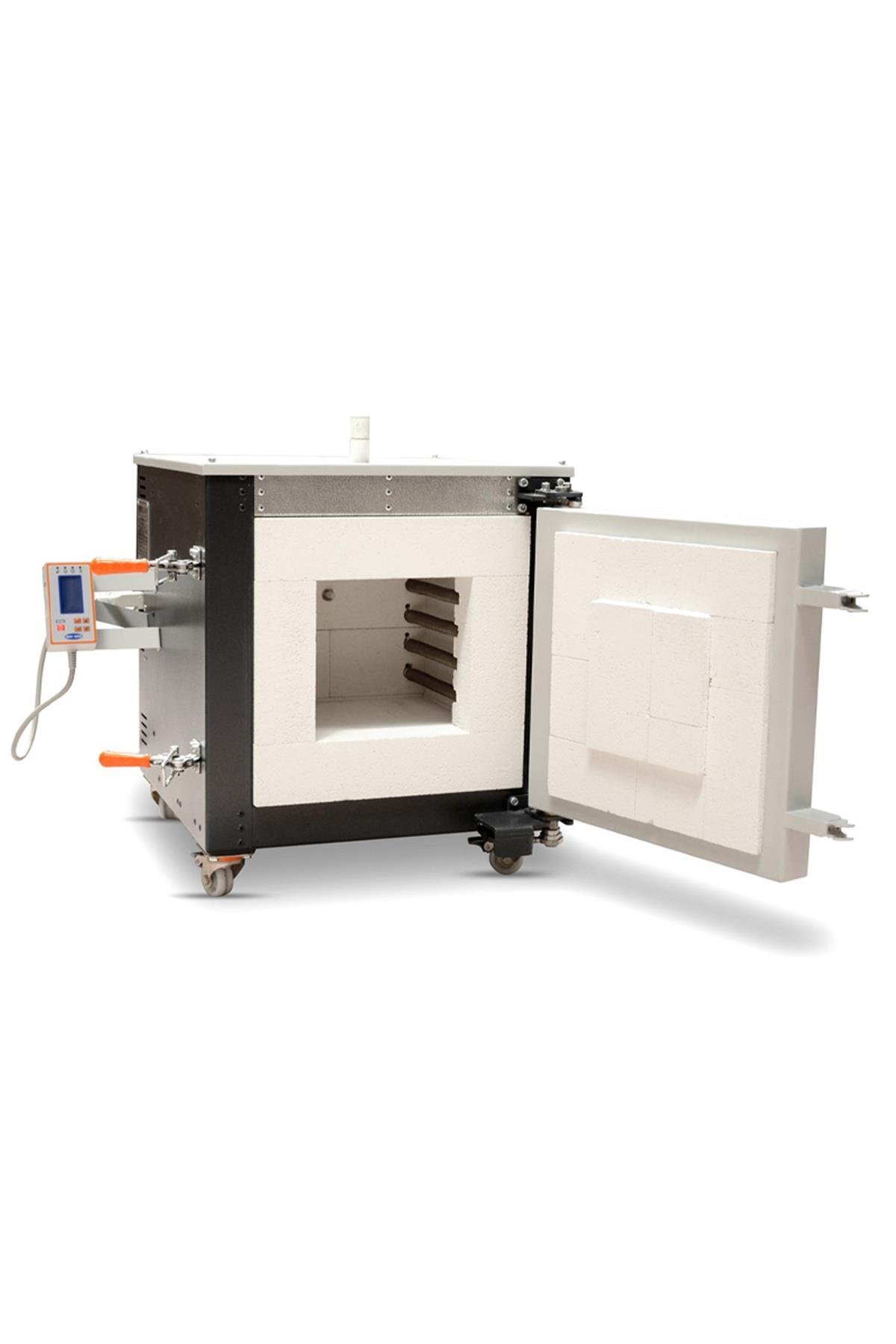

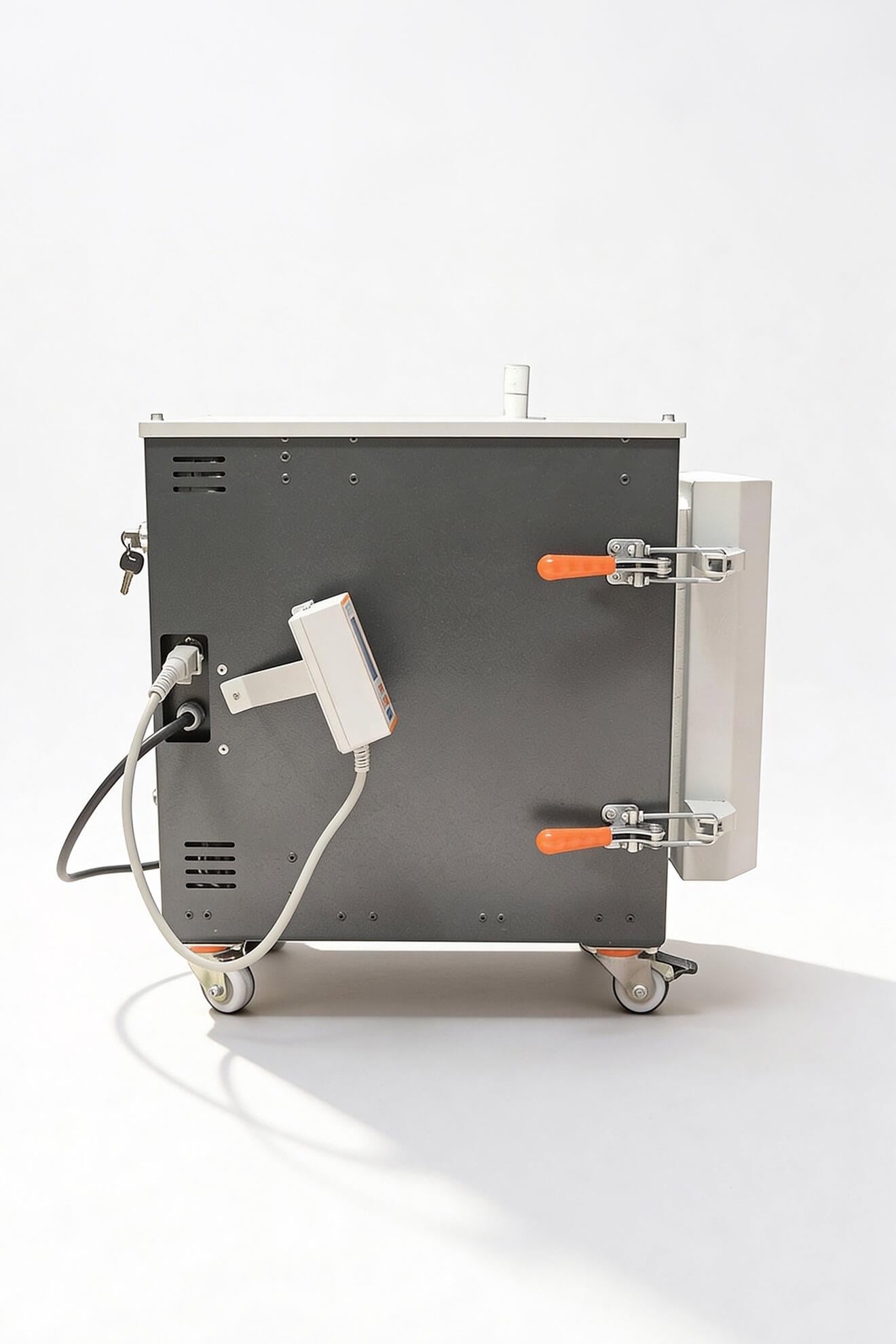

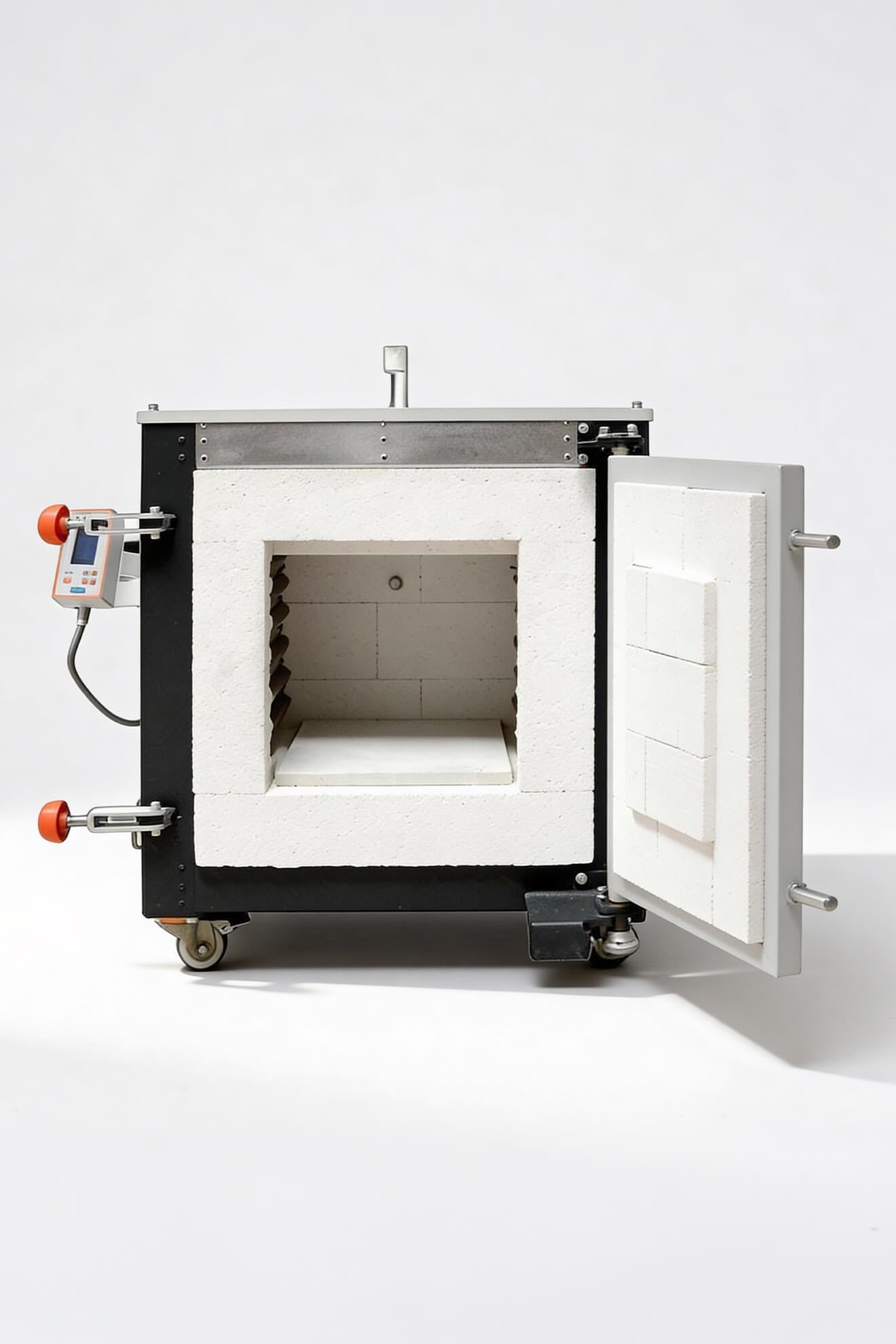

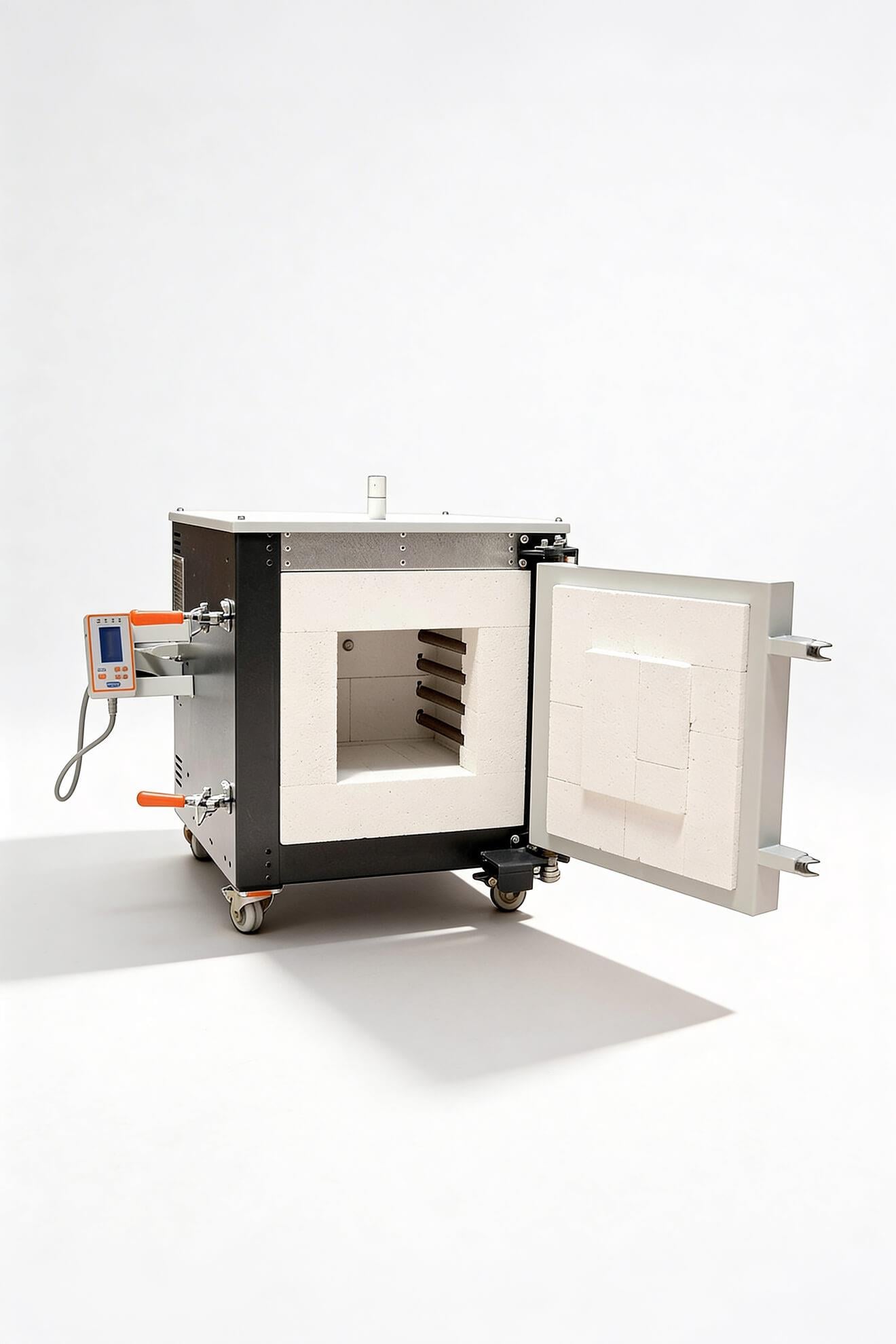

RD16 / RDH16 ASH KILN
RD16 / RDH16 ASH KILN
RD16 / RDH16 ASH KILN
RD16 / RDH16 ASH KILN
RD16 / RDH16 ASH KILN
RD16 / RDH16 ASH KILN

ASH KILNS

Ash kilns (muffle furnaces) have been using in the laboratory for the analysis of food ash amount of food usually.

Refsan has been producing muffle furnaces for laboratories in food or other industries.


All of our kilns have;

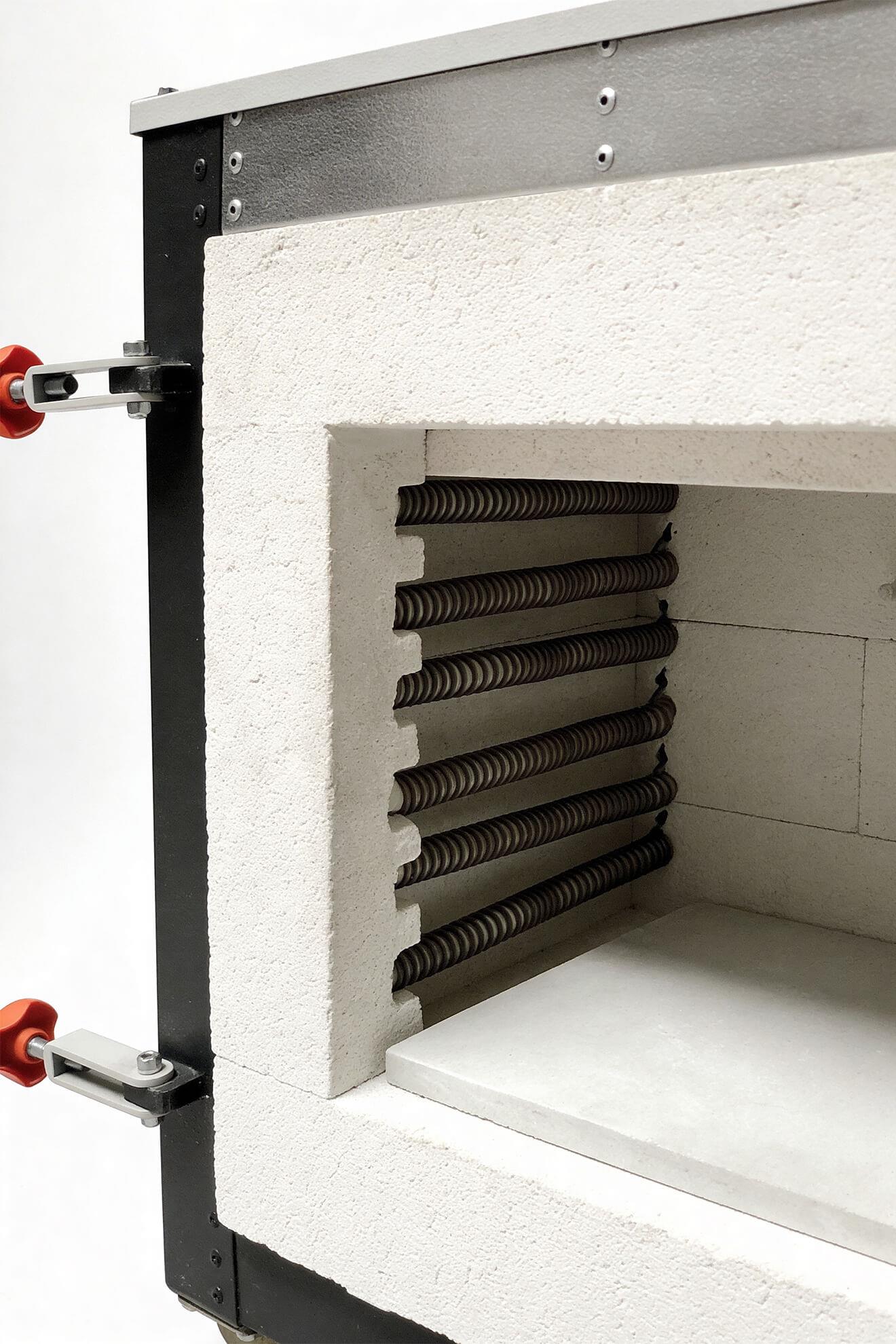

Kanthal A1 electric resistance wires

Insulation Boards and bricks resistant up to 1430°C

Digital Programmer can be program with 5 programs contain 15 steps in each program

2 years Warranty, 10 years technical Support

CE Certificate





Model
RD16
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
16 LT.
Maximum Temperature
1200°C
Outer Dimensions (WxDxH)
70x60x66cm
Inner Dimensions (WxDxH)
23x30x23cm
Weight
116 kg
Phase
Single-phase
Power
230V
Cable Thickness - Fuse
Requirements for 230V RS Model; Cable Thickness 3X4 - Fuse(Amps) 1X25
Connected Load kW
5kW
Themocouple Count
1 (Middle-Back)
Thermocouple
K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Contact Type
SSR
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Galvanized

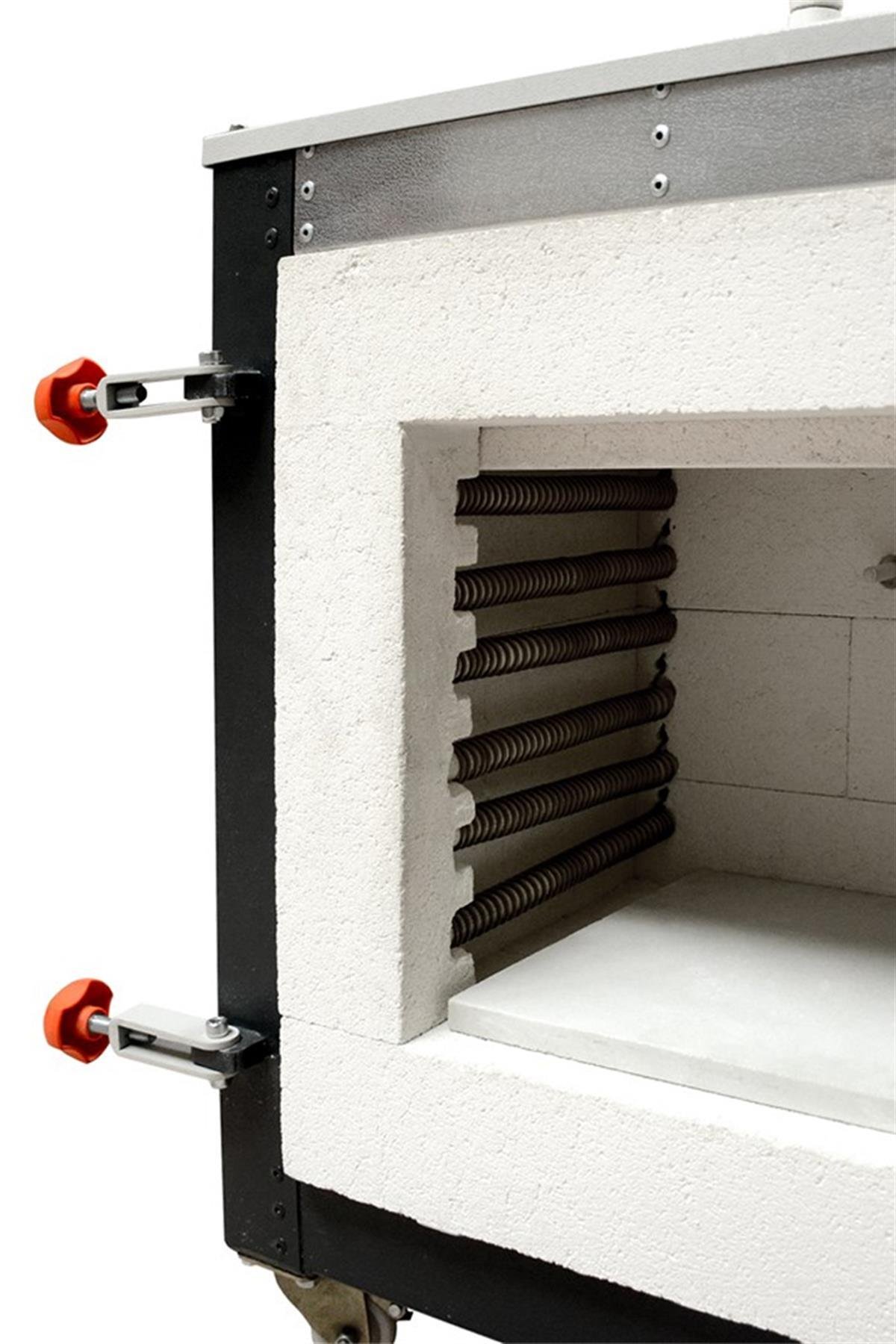

Heating Sides
2 SIDES (LEFT+RIGHT)
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Protection Switch
AVAILABLE
Ceramic Fiber
N/A
Wheels
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop
