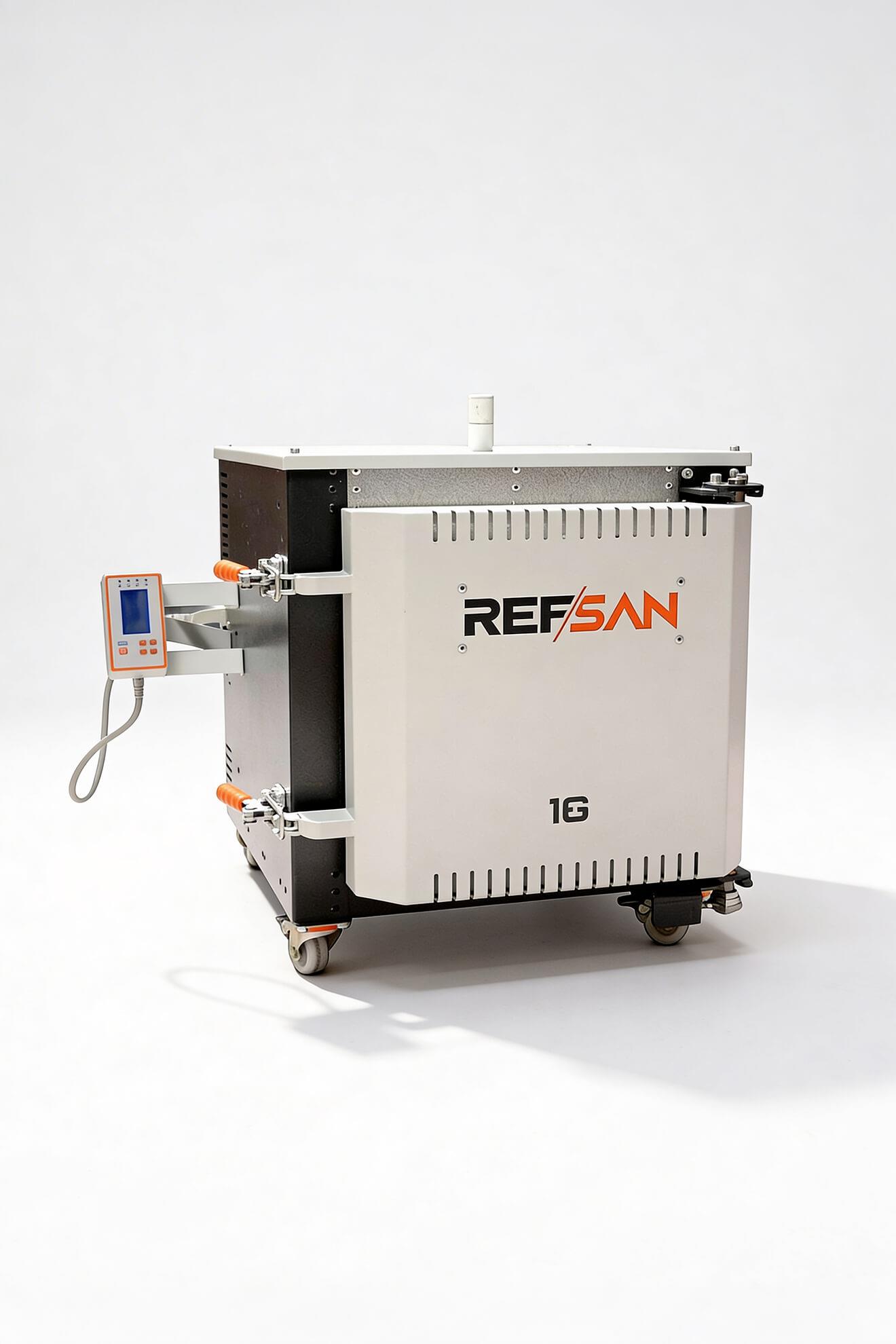

REFSAN RD16 / RDH16 CERAMIC KILN

PRODUCT FEATURES

-It is a bench top model as standard.
-The lower leg part can be supplied as additional equipment.
-Heating elements are installed on both sides and are positioned on the Ceramic Pipe
-Long life of heating elements is ensured as a result of adaptive wire calculations
-Silent operation of the heating system is provided by solidstaterelais type relays.
-As a result of the rapid rhythmization of the switchgear operations, sensitive heat flow is ensured.
-Double-coated lid with low external temperatures
-Lid contact switch with forced disconnection
- Insulation equipment with light fire bricks in the furnace chamber and special rear insulation equipment for low electricity consumption
-Alumina Brick with 6 complete surfaces inside the oven, No fiber containing carcinogenic material is used in the oven.
-The body hair is made of precious and shaped steel sheet and painted with electrostatic paint.
-Infinitely adjustable air supply and discharge for short cooling times
-Air discharge place is on the oven


DIGITAL

RF800 / 850 / 860 Programmer Features:
-Automatic start on the desired day and time
-Automatic self-activation in case of power cuts
-5 Programs + Each program contains 15 steps
-To be able to examine the reports of the last 8 burns
-Date, Time, Program Used and Total Number of Steps, Current Step While Working, Set Value of the Adjusted Step, Time Adjusted to that Set Value, Start / Stop Status, Current Temperature and Time Remaining until the Program ends are displayed on the screen.


WEIGHT: 116KG
External Dimensions: 70x60x66cm



Model
RD16
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
16 LT.
Maximum Temperature
1200°C
Outer Dimensions (WxDxH)
70x60x66cm
Inner Dimensions (WxDxH)
23x30x23cm
Weight
116 kg
Phase
Single-phase
Power
230V
Cable Thickness - Fuse
Requirements for 230V RS Model; Cable Thickness 3X4 - Fuse(Amps) 1X25
Connected Load kW
5 kW
Themocouple Count
1 (Middle-Back)
Thermocouple
K TYPE ( 0 - 1200 °C)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Contact Type
SSR
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Galvanized
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Heating Sides
2 SIDES (LEFT+RIGHT)
Ceramic Fiber
N/A
Wheels
AVAILABLE
Protection Switch
AVAILABLE
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
