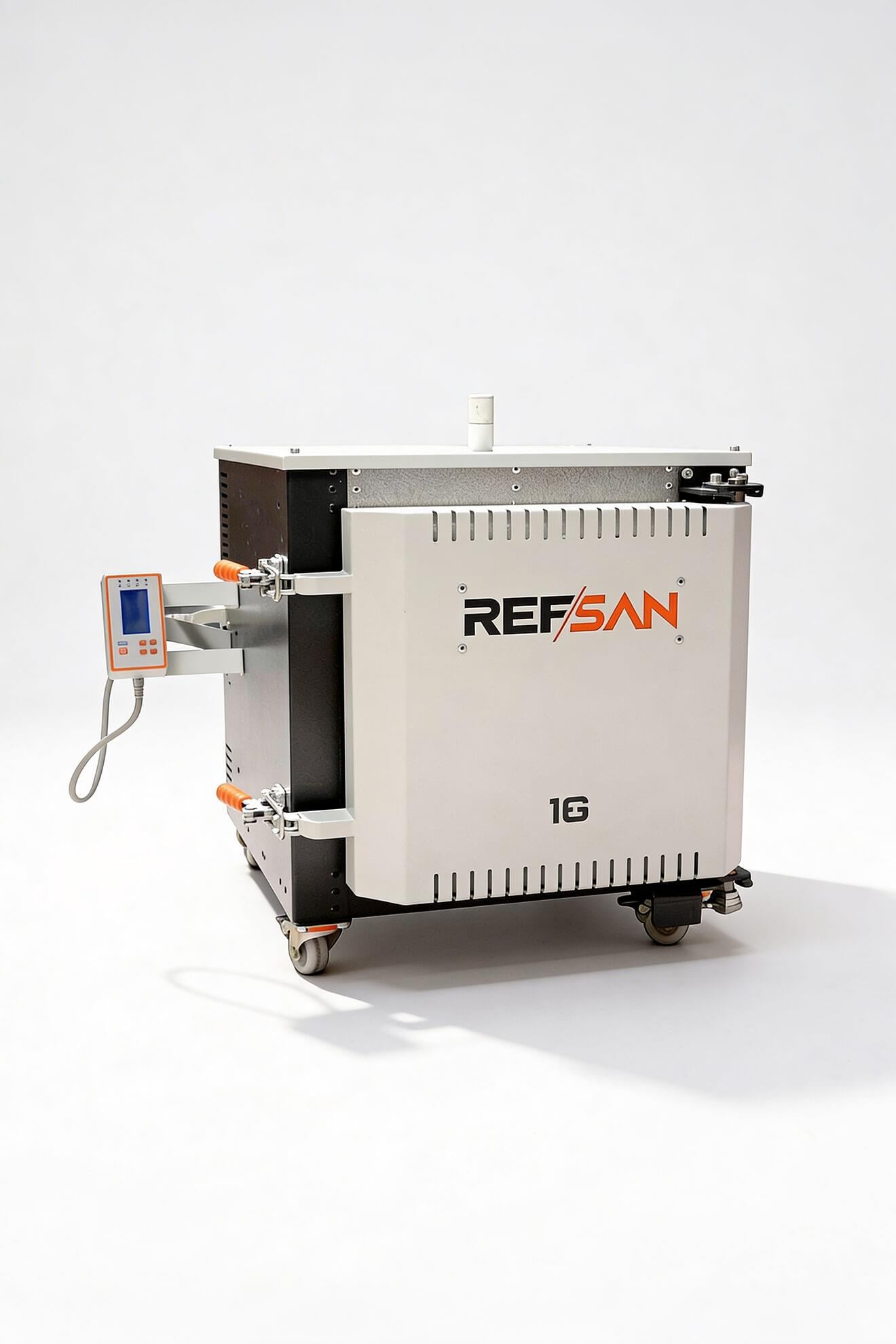

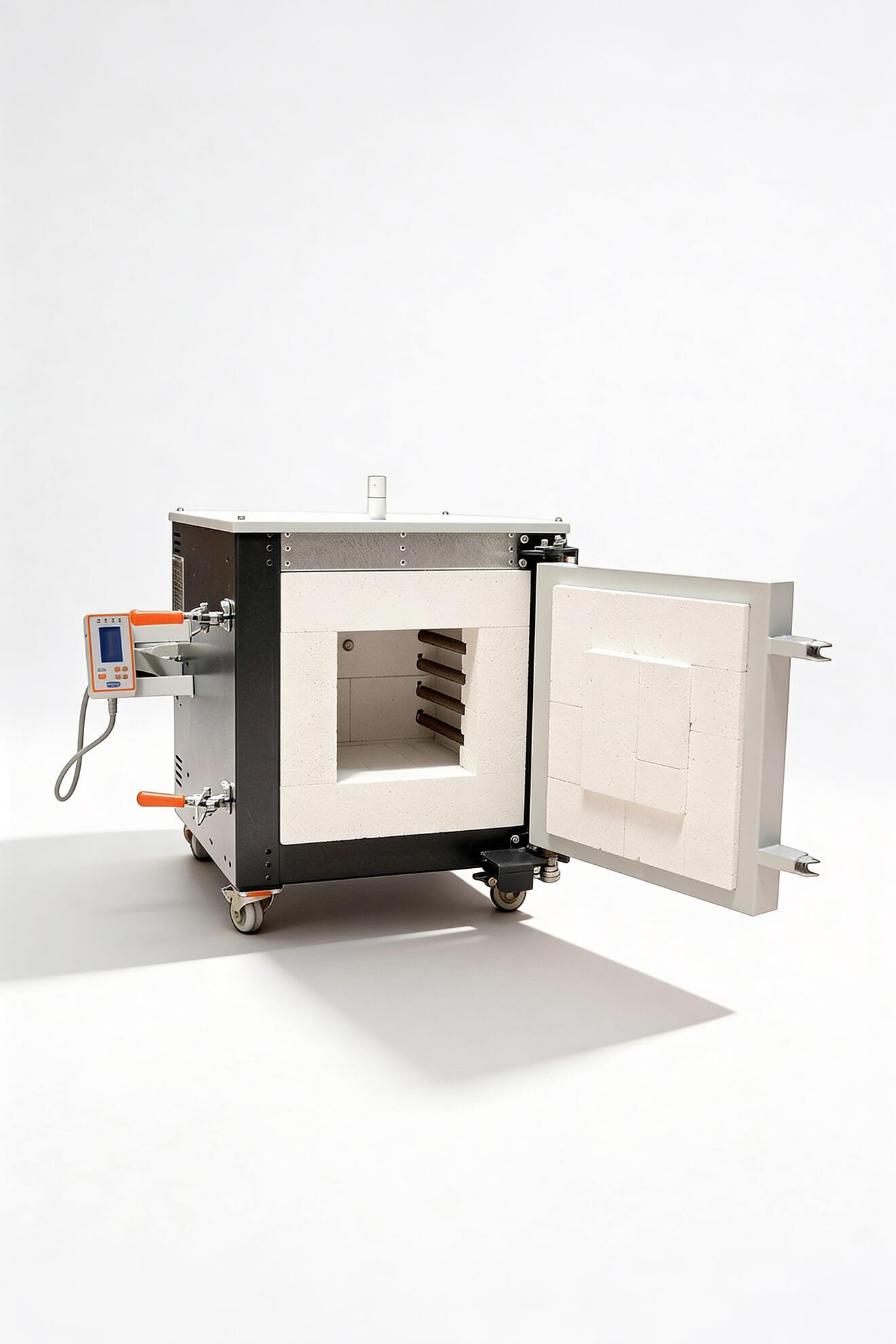

RD16 / RDH16 Porcelain Kiln
RD16 / RDH16 Porcelain Kiln
RD16 / RDH16 Porcelain Kiln
RD16 / RDH16 Porcelain Kiln
RD16 / RDH16 Porcelain Kiln
RD16 / RDH16 Porcelain Kiln
Brand : REFSAN

Rd16 / Rdh16 Porcelain Kiln

(R21363)
0.0
Barkod : 8681910612778
Price : 3.239,17€
Temperature:1300 °C

ADET

Add to Favorites
Add to Collection
Add to my Wish List
Compare
Notify me when the price goes down
Write a comment
Questions and Answers
Model
RD16
Kiln Type
CHAMBER KILNS (FRONT LOADING)
Volume
16 LT.
Maximum Temperature
1320°C
Outer Dimensions (WxDxH)
70x60x66cm
Inner Dimensions (WxDxH)
23x30x23cm
Weight
116 kg
Phase
Three-phase
Power
230V
Cable Thickness - Fuse
Requirements for 230V RS Model; Cable Thickness 3X4 - Fuse(Amps) 1X25
Connected Load kW
5 kW
Thermocouple
S TYPE ( 0 - 1300 °C)
Themocouple Count
1 (Middle-Back)
Insulation Type
EUROPEAN ALUMINA BRICKS RESISTANT TO 1430°C
Heating Type
ELECTRIC RESISTANCES KANTHAL A1
Contact Type
SSR
Heating Sides
2 SIDES (LEFT+RIGHT)
Paint of Kiln
Electrostatic Powder Dye
Structure of Body
Galvanized
Protection Switch
AVAILABLE
Wheels
AVAILABLE
Ceramic Fiber
N/A
Control Unit
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Operation Reports
Available / Last 8 Operation
Automatically Continuation After Power Cut
AVAILABLE
Automatically Start-up on Any Desired Time
AVAILABLE
Product Origin
TÜRKİYE
CE Certification
CERTIFIED
Competence of After Sale Services
AVAILABLE
ISO9001 Certificate
AVAILABLE
Warranty
2 YEARS
Service Support
10 YEARS
Accessories (Optional)
Refractory Kiln Shelf Refractory Prop Product Setter
