Plate dimensions : 800x800 mm
Plate type: Chamber type
Plate material : Polypropylene
Pieces and volume of plates: 60 pieces

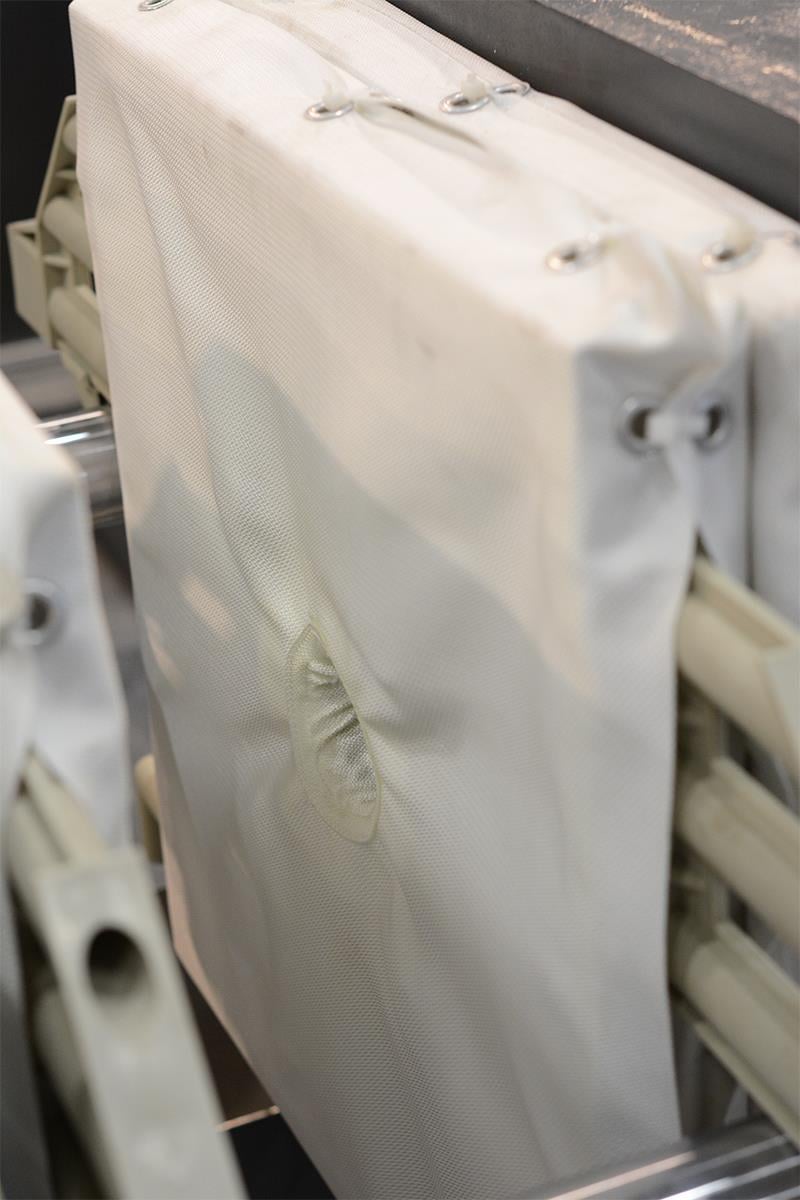

Filter fabric : Special for ceramic mud (PP)

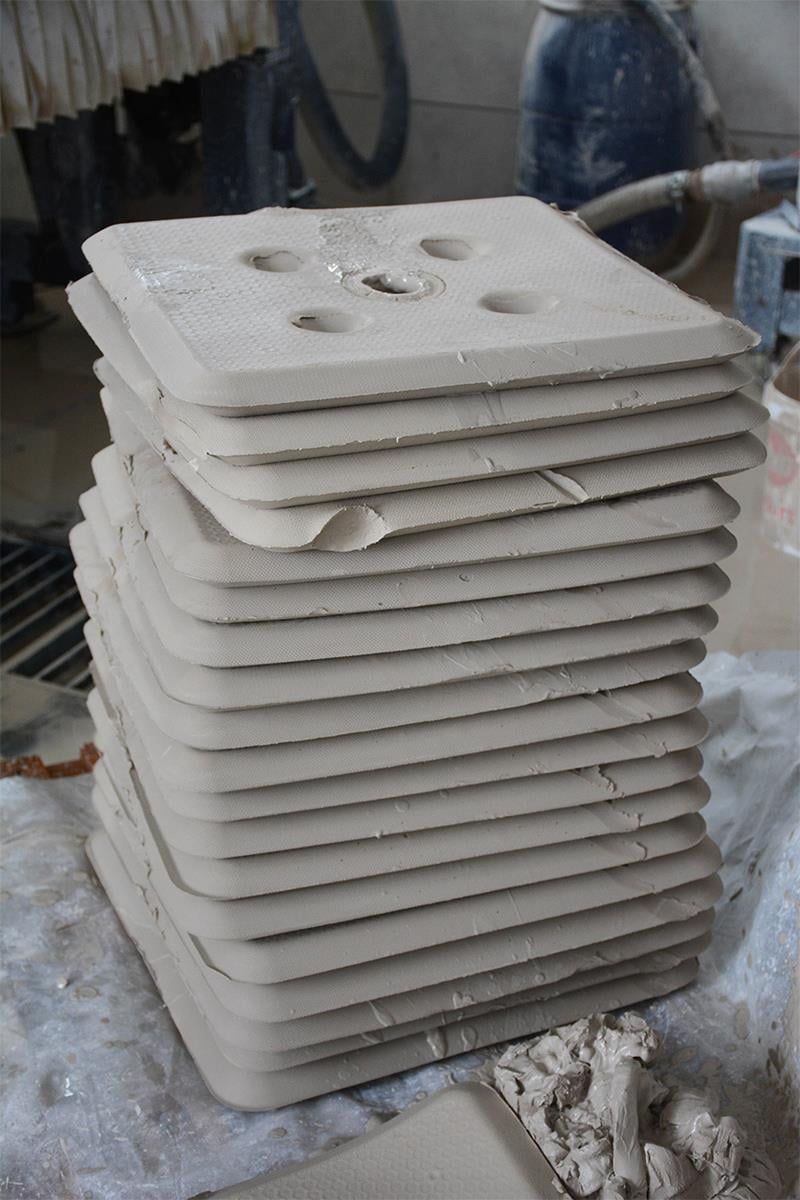

Cake Thickness: 32mm
Capacity = Internal space Volume : (15,8 dm3) * Sludge Density = Cake Weight (Density can be 1.45 for Ceramic and Porcelain) 15,8*1,45= 23 Kg
Total Capacity : 23 Kg *60 pcs = 1400 Kg./Charge
Charging Time : 75 min. for Porcelain Clay / 105 min. for Ceramic Clay.
Discharge: Open or closed discharge upon request
Feed: Center feed
(Optionally feeding can be done from the top)
CHASSIS SPECIFICATIONS
Material : St 37 carbon steel
Surface protection : Electrostatic Painted
Filtrate outlet : Open discharge
Drainage water channel: St -37 + Electrostatic Painted
Filter arms : St-52 carbon steel + AISI-304 stainless steel coated
Working pressure : 0-16 bar range
Power : 1.5 KW

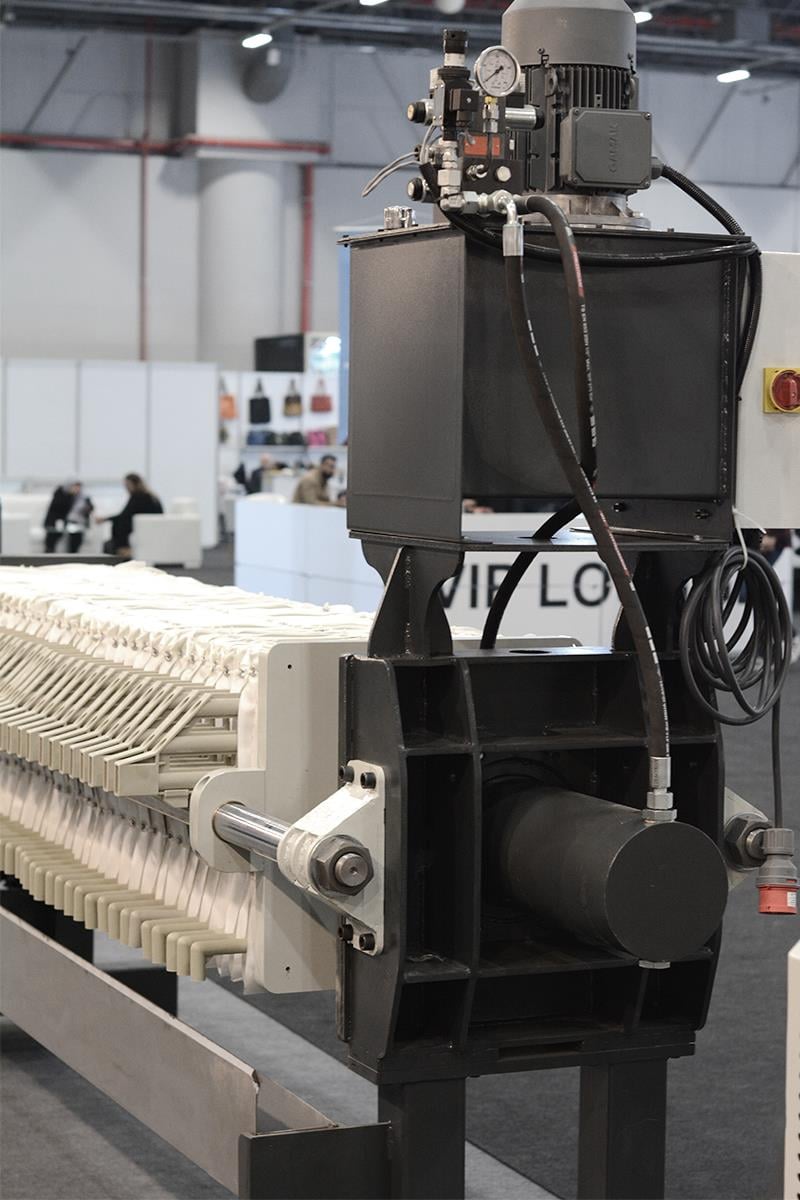

Plate clamping : Manual lever, hydraulic
License plate spacing : Manual
Hydraulic clamping pressure : 100-300 bar
CE Certified.
2 Year Warranty against workmanship defects
OPTIONAL
1. Pulley mixer
2. Pump
PUMP FEATURES
Connection Input-Output: 1"
Connection Type: Threaded
Capacity Range: 0 - 160 lt/min
Thrust Distance: 0 - 84 mss
Max. Suction Height: 6 - 8 m
Max. Solid Part Size: 4 mm
Pump Body Materials: Aluminum, Cast Iron, Stainless Steel (316)
Pump Internal Materials: Neoprene, Buna-n, Teflon, Viton, Santoprene, EPDM
Air Line Aluminum (Center Hub, Air Valve, Pilot Valve, Air Inlet Cover, Inner Covers)
Air Connection: 1/2"
Air Working Pressure: 0-8.4 bar
Air Consumption: 10 - 67 m3/h
